Prod Model: |
MT01 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Water-Proof: |
Yes |
Is Customized: |
Yes |
Built-in Antenna: |
Yes |
Free Tracking Platform: |
Yes |
Sos Button: |
Yes |
Detecting Engine: |
Yes |
Live Tracking: |
Yes |
Built-in Battery: |
650mAh |
Stop The Car: |
Yes |
Certificate Of Compliance: |
Yes |
Type: |
GPS Tracker |
Use: |
Automotive |
Operating Principle: |
GPS Tracker |
Port Number: |
2 Input, 1 Output |
Model: |
Mt01 |
Screen Size: |
No Screen |
Carrier Frequency: |
850/900/1800/1900MHz |
Chip: |
GPS Chip: Ublox 7 GSM Chip: M35 |
Brand: |
Topshine/Neutral |
Certification: |
Ce/RoHS/SGS |
Product Description
Popular Mini Waterproof Car GPS Tracker Free Tracking Software MT01
(2 years warranty, Free Tracking Platfrom (PC base & Android),CE & RoHS & SGS certification)
Product Overview

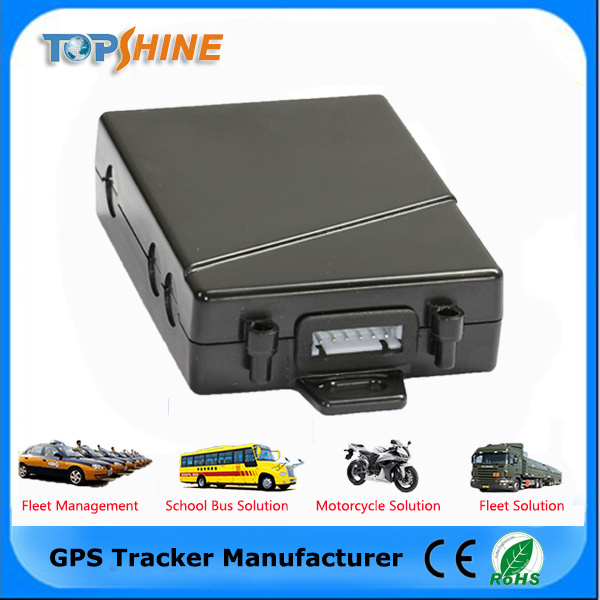

MT01 is a kind of mini GPS vehicle tracking product can be used for tracking and security of motorcycle and automobile etc. Mini size, builtin antenna and waterproof designed, easy to be installed and concealed, with power voltage range from 6V~24V, therefore can satisfy tracking and security demands for all kinds of vehicles.
Applications
* Vehicle Tracking & Security
* Fleet Management
* Equipment Security
* Asset
Specification
Items | Specifications |
Dimension | 80*58*22mm |
Weight | 85 |
Input voltage | DC 9V~36V/1.5A |
Back-up Battery | 650mAh/3.7V |
Power Consumption | 65mA standby current |
Operating Temperature | -20°C~75°C |
Humidity | 5%~95% |
Work Time | 33 hours in power-saving mode and 8 hours in normal mode |
LED | 2 LED lights to show GPS, GSM status |
Button | 1 SOS and 1 power on/off |
Microphone | Default |
Memory | 4M Byte |
Sensor | Motion sensor |
GSM Frequency | 850/900/1800/1900Mhz |
GPS Chip | Latest GPS SIRF-Star III Chipset |
GPS Sensitivity | -159dB |
Positioning Accuracy | 10meters, 2D RMS |
I/O | 2 Input 1 Output 1 USB Port |
Packing Measures: | |
Neutral | Dimension (mm) | Weight (KG) | Capacity |
Box | 225x160x550 | 0.26 | 1 set |
Carton | 470x340x310 | 5.2 | 20 sets |
Features & Functions
GSM jamming detection, anti jamming | With 650mAh inbuilt rechargeable battery |
Ublox7 GPS industrial high sensitive module | Two way tracking, GPS/intelligent GSM positioning |
Multiple Geo-Fence Setting,Movement Alert,overspeed Alert,tow alert,main power cut off alert etc | Powerful and multifunctional tracker for comprehensive Fleet management |
Inbuilt 4MB data logger for saving position when in GSM/GPRS blind area | Get real time vehicle position address street name /Google map link by SMS |
cut off engine remotely | Crash sensor for accident alarm (Optional) |

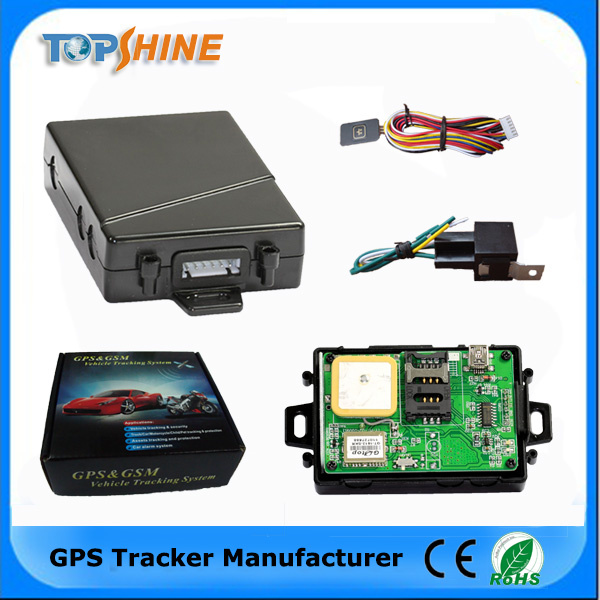

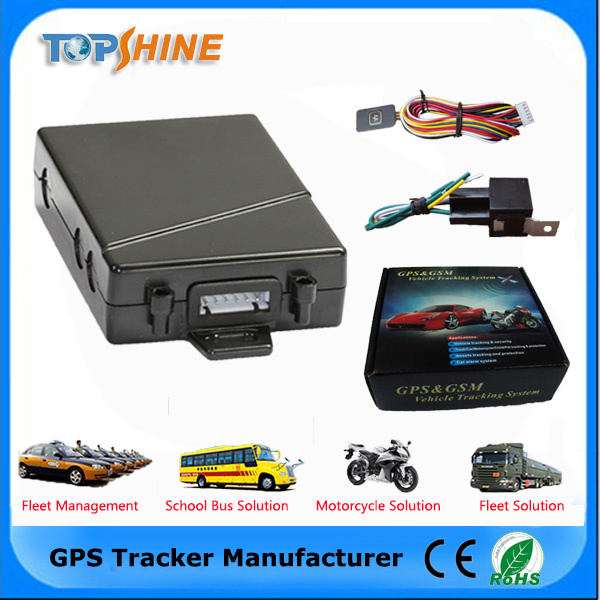

Package & Standard AccessoriesMT01 unit: 1 unit
8P wire : 1 piece
Relay: 1 piece
Optional Accessoires:
* Crash Sensor
* USB configure Cable Welcome to test our free tracking software
PC: www.track-car.com
Mobile Phone: http://www.track-car.com/M
User name: hongkong
Password: 123
Our advantage:
* Provide 2 free Tracking Platfrom (PC base & Android APP) lifelong. No charge.
* 2 years warranty
* All of our products have CE & RoHS & SGS certification
* Supply OEM&ODM service.
* Our engineer team could customize your personality tracking platform
* Professioal R&D team provide Customization and after-sale service lifelong .
* 100% made of industrial-grade component,GSM module have certified(CE2200)and with legal IMEI code.
Payment & Shipment:
Payment Term: PayPal /western union /TT
Shipping Term: DHL /Fedex /TNT /ARAMEX/EMX
Lead time: Samples within 1 days of delivery.bulk production within 5-7days of delivery.

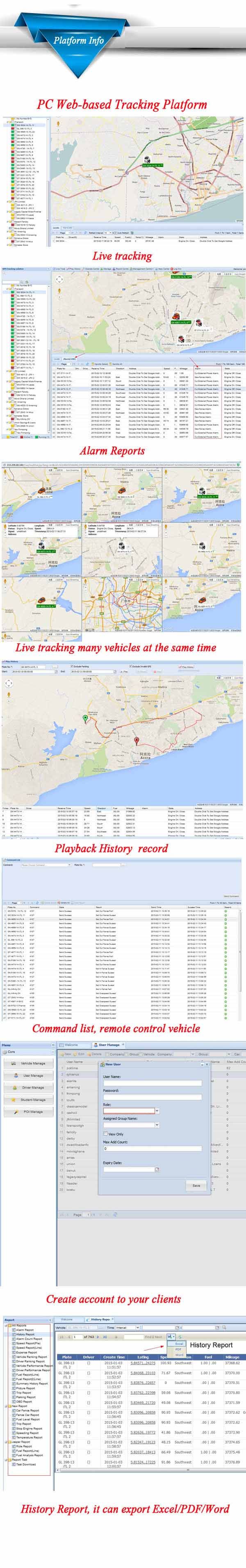

GPS tracking platform information
