| Prod Model: |
car gps 102 |
| Location: |
GPS GPRS Lbs Location |
| GPS Sensitivity: |
-159dBm |
| GPS Accuracy: |
<5m |
| Car Voltage: |
12V,24V |
| Special Features: |
Real Time Tracking, Digital Compass |
| Tracking System: |
Web Server Platform |
| Certificate: |
Ce RoHS FCC |
| Warranty: |
1 Year |
| Function: |
Hidden Install, Waterproof,Sos |
| APP: |
iPhone Android ISO APP |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Operating Principle: |
GSM/GPS |
| Model: |
GPS Tracker Bn102 |
| Screen Size: |
No |
| Carrier Frequency: |
850/900/1800/1900MHz |
| Chip: |
CB900 |
| Brand: |
Baanool |
| Certification: |
ISO9001 |
Product Description

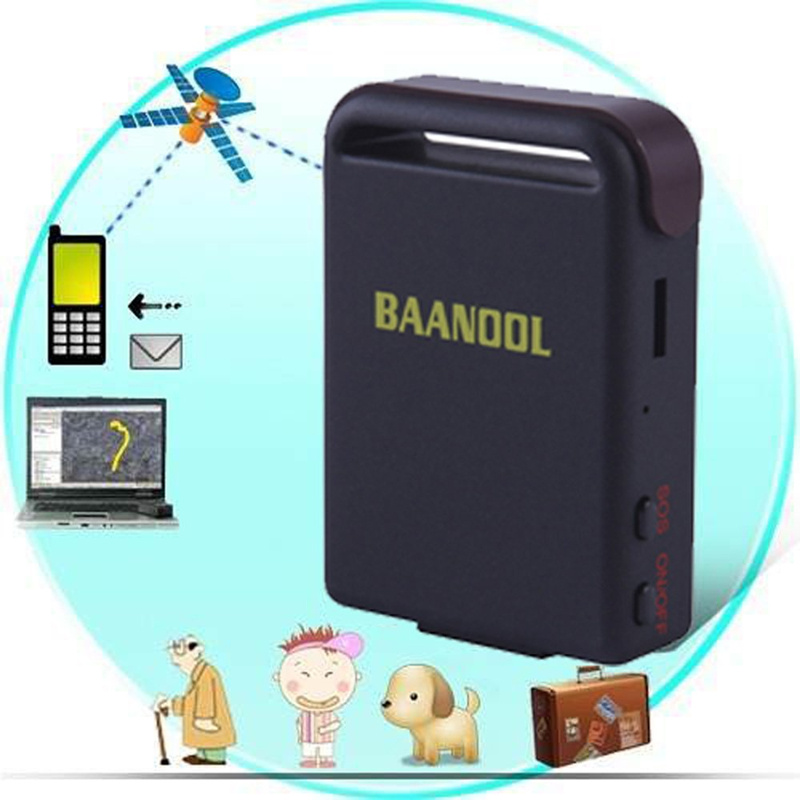

GPS102B is a new Personal Tracker based on the GSM/GPRS network and GPS satellite positioning system, which set multiple function of security, positioning, monitoring surveillance, emergency alarms and tracking in its entirety. Objects can be tracked and monitored with GPSWOX Real Time Tracking System on your Computer, Mobile or Tablet (Apple, Android, Windows)
Product Description
Model: GPS tracker tk102
1.Functions
1.Mini Size , handheld , suitable for kids , pets , the elderly , and vehicle tracking .
2. Powerful magnet+water proof, adsorbing in the hidden place of car.
3. Geo-fence , Movement Alarm / Overspeed Alarm / Low battery alarm / Shock Sensor Alarm.
4.SOS button .
5. Location based service(LBS) + GPS double real time tracking solution,monitor
6.Built-in memory for 16,000 positions, Support microSD
Applications
*Vehicle rental / Fleet management etc
*Powerful magnet + water proof, adsorbing in the hidden place of car for tracking secretly.
*Protect child / the old / the disabled / pet etc
*Provide peace-of-mind for businessmen
*Personnel Management
*Criminals Tracking

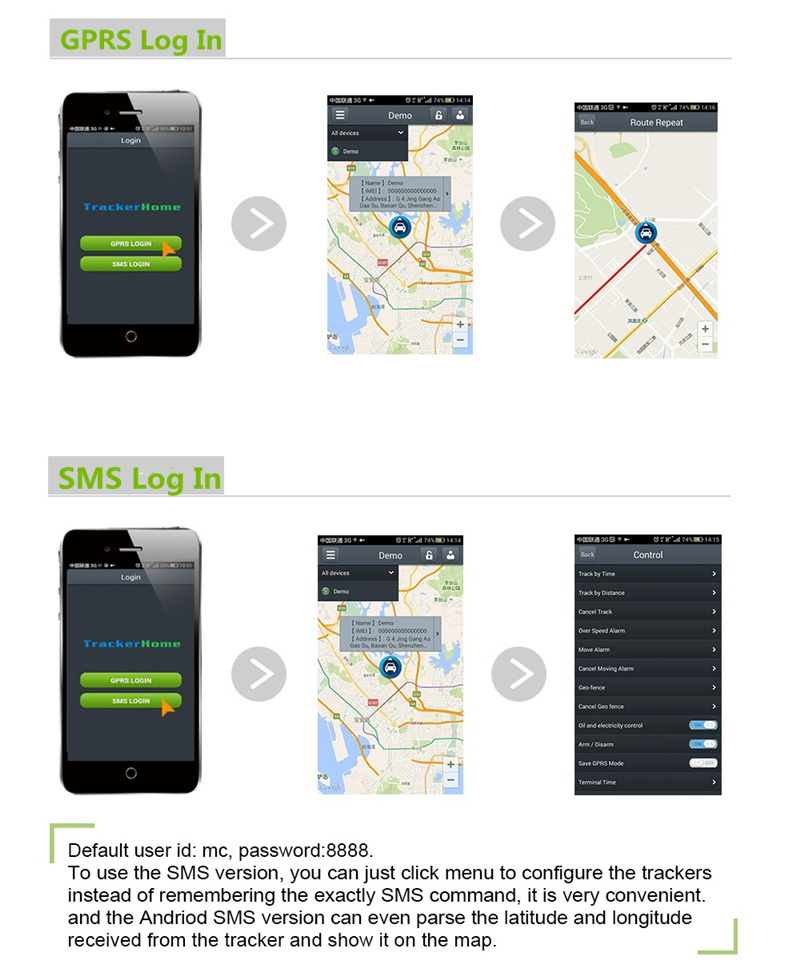

2.Five types Tracking way:
A>: SMS + Map software;
B>: PDA Cell Phone;
C>: Real time tracking, and track via your computer;
D>: simple & useful real time tracking via our website www.gpstrackerxy.com
E >: IOS and Android APP
Applications
Vehicle rental / Fleet management etc
Powerful magnet + water-proof bag, adsorbing in the hidden place of car for tracking secretly.
Protect child / the old / the disabled / pet etc
Provide peace-of-mind for businessmen
Personnel Management
Criminals Tracking
Package
GPS unit
magnetic battery cover batteries | battery dock
AC adapter | USB cable
water proof bag
user manual
Attention:
Optional accessories
Optional accessories:
Hardwired car charger
Cigarette lighter car charger
Microsd memory card
Function:
1.Single Locating
2.Auto track continuously
3.Turning points update automatically
4.GPS drift suppression
5.Exact street address
6.Location based service (LBS) / Cell-ID Locating
7.Monitor
8.Data logging
9.Data Load
10.Forward the third parties message
11.SIM card Balance Inquiry
12.Decide how many times of alarm message
13.Alarms
14.Check the Vehicle State
15.Check IMEI
16.Terminal (local) Time Setting
17.Reset Hardware
18.Configure parameters by USB
19.GPRS configuration
20.Less GPRS traffic
21.Set up monitor center number
Specifications
| Content | Specifications |
| Dim. | 64mm x 46mm x 17mm(1.8" *2.5" *0.65" ) |
| Weight | 50g |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| GPS sensitivity | -159dBm |
| GPS accuracy | 5m |
| Time To First Fix | Cold status 45s
Warm status 35s
Hot status 1s |
| Car charger | 12-24V input
5V output |
| Wall charger | 110-220V input
5V output |
| Battery | Chargeable changeable 3.7V 1000mAh Li-ion battery |
| Standby | 80hours |
| Storage Temp. | -40°C to +85°C |
| Operation Temp. | -20°C to +55°C |
| Humidity | 5%--95% non-condensing |

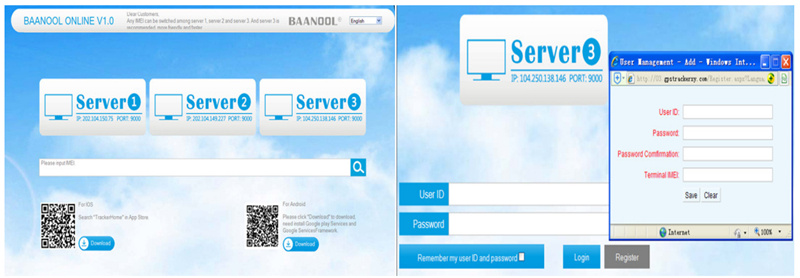

Online Tracking System
Users need to register an account on www.baanool.net before use web or APP platform, account name and password is the same on web/APP platform.

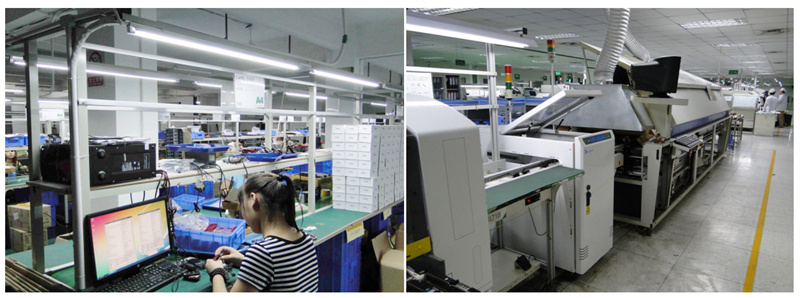

OUR FACTORY
1. OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. after sending, we will track the products for you once every two days, until you get the products. When you got the
goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer
the solve way for you.
Shipment and delivery
We will send the good out in 2-3 working days once received your payment with real time tracking No.
DHL/Fedex/UPS/TNT/ARA/EMS/By air/By sea and so on are optional, we can send goods by shipping ways you want.
Sample and mini order will be delivered within 1-2 working days after the receipt of payment.
For order over 500pcs or customized order, lead time will be 3-15 days after the receipt of payment. Please contact our sales to make sure the current inventory.
Q1. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q2. How about your delivery time?
A: Generally, it will take 3 to 15 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q3. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
Q4. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q5. How to use the GPS Tracker ?
A:Prepare an common GSM card can make device to work.
Q6: Does the GPS can work anywhere ?
A: Yes, if places has GSM GPS signal, our device is quad band 850/900/1800/1900MHz.
Q7: Can I use my own tracking system and server ?
A: Yes, we can share the device protocol for free.
Q8: Can I make my own company LOGO and design on device case or color box ?
A: Yes, if for customize box: MOQ 500pcs; if for customize device case : MOQ 200-300pcs depends on model.
Q9: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
