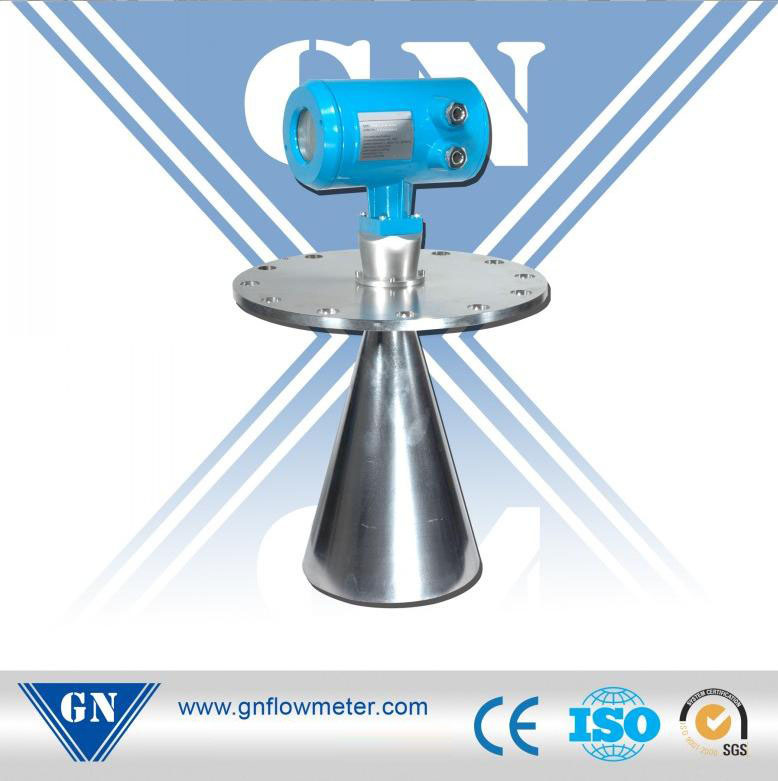

Powder Radar Level Meter, Level Transmitter

Name: Powder Radar Level Meter, Level Transmitter
Brand: all-electronics-online.com
SKU: 672953931
Availability: InStock
Rating: 4.3 (76 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

CX-RLM-800 series of intelligent radar substance position gauge

Types CX-RLM-803
Application
Process condition is simple, corrosive liquids, slurries and solids
For example:
Water tank
Acid and alkali tanks
Slurry tanks
Solid granules
Small petrol tanks
Storing corrosive liquids, slurries and solids
For example:
Water tank
Acid and alkali tanks
Slurry tanks
Solid granules
Small petrol tanks Suitable for all kinds of storing tanks or process measuring environment, liquids, slurries and solids.
For example:
Crude oil, light oil tank
Coal and powder coal bunkers
Volatile liquid tank
Charcoal level
Slurry tank
Solid granules
Measuring range 20 meters 20 meters 35 meters
Process connection Screw Flange Flange
Process temperature -40-130centigrade degree -40-150C -40-250C
Process pressure -1.0-3bar -1.0-20bar -1.0-40bar
Repeatability ± 3mm ± 3mm ± 3mm
Precision < 0.1% < 0.1% < 0.1%
Frequency range 6.8GHz 6.8GHz 6.8GHz
Anti-explosion/safety grade EXiaIICT6/IP68 EXiaIICT6/IP68 EXiaIICT6/IP68
Signal output 4^20mA/HART(two phases) 4^20mA/HART two phases) 4^20mA/HART(two phases)

Prod Model:	CX-RLM-803
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Medium:	Liquid, Solid
Measuring Range:	1-30m
Display:	LCD
Output:	4-20mA
Protocol:	Hart
Power Supply:	220VAC, 24VDC
