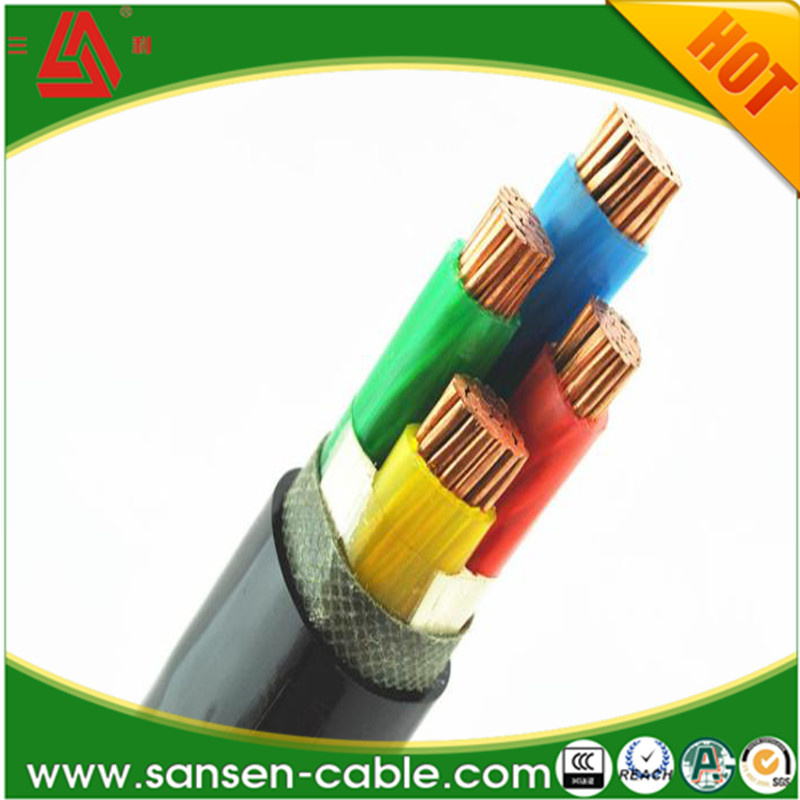

Power Cable Wire Yjv 3*70mm2 XLPE Insulation PVC Sheath Copper Power Cable
| Price: |
US $ 0.9/Meter |
| Min Order: |
1000/Meter |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
YJV |
| Application: |
Power Station |
| Voltage: |
Low and Medium Voltage Cable |
| Current: |
DC & AC |
| Insulation Material: |
XLPE |
| Certification: |
RoHS |
| Brand: |
Sansen |
Product Description
YJV POWER CABLE 0.6/1KV XLPE INSULTAED COPPER CONDUCTOR ELECTRIC CABLES
Product DescriptionCable insulation material--XLPE, which adopt the chemical method or physical method to change the Linear molecular structure PE into The three-dimensional reticular structure XLPE, all of which greatly improve the PE's thermal mechanical properties, and maintain the excellent electrical properties. The XLPE rated voltage working temperature is 90, which is much higher than insulation cable, PVC Insulation electrical cable and PE insulation electrical cable, so the current-carrying capacity is further improved.| 0.6/1.0KV Crosslinked polyethylene insulated power cable with PVC sheath |
| Core number*cross section | YJV | Core number*cross section | YJV | Core number*cross section | YJV |
| Diameter | Weight | Diameter | Weight | Diameter | Weight |
| mm2 | mm | kg/km | mm2 | mm | kg/km | mm2 | mm | kg/km |
| 3 × 1.5 | 10.4 | 120.8 | 3×1.5+1×1.0 | 10.9 | 138.9 | 3×1.5+2×1.0 | 13.4 | 158.9 |
| 3 × 2.5 | 11.3 | 158.5 | 3×2.5+1.5 | 11.8 | 181.7 | 3×2.5+2×1.5 | 14.4 | 207.3 |
| 3 × 4 | 12.2 | 210.4 | 3×4+1×2.5 | 12.9 | 245.4 | 3×4+2×2.5 | 15.5 | 282.1 |
| 3 × 6 | 13.4 | 280.2 | 3×6+1×4 | 14.1 | 329.5 | 3×6+2×4 | 16.9 | 382.2 |
| 3 × 10 | 16.1 | 430.7 | 3×10+1×6 | 16.8 | 497.1 | 3×10+2×6 | 19.5 | 569 |
| 3 × 16 | 18.4 | 623..6 | 3×16+1×10 | 19.4 | 734.7 | 3×16+2×10 | 22.6 | 853.3 |
| 3 × 25 | 22.1 | 947.1 | 3×25+1×16 | 23.2 | 1114 | 3×25+2×16 | 26.5 | 1292 |
| 3 × 35 | 24.6 | 1254 | 3×35+1×16 | 25.2 | 1414 | 3×35+2×16 | 28.4 | 1590 |
| 3 × 50 | 27.9 | 1660 | 3×50+1×25 | 29.1 | 1919 | 3×50+2×25 | 33 | 2211 |
| 3 × 70 | 32.8 | 2353 | 3×70+1×35 | 34 | 2702 | 3×70+2×35 | 39.4 | 3093 |
| 3 × 95 | 37.1 | 3179 | 3×95+1×50 | 38.7 | 3667 | 3×95+2×50 | 44.7 | 419 |
| 3 × 120 | 41.2 | 3983 | 3×120+1×70 | 47.1 | 5503 | 3×120+2×70 | 46.6 | 5431 |
| 3 × 150 | 45.8 | 4909 | 3×150+1×70 | 50.8 | 6460 | 3×150+2×70 | 50 | 6315 |
| 3 × 185 | 50.9 | 6104 | 3×185+1×95 | 56.5 | 8029 | 3×185+2×95 | 56.1 | 8046 |
| 3 × 240 | 57.4 | 7941 | 3×240+1×120 | 57.6 | 9527 | 3×240+2×120 | 63.1 | 10377 |
| 3 × 300 | 63.4 | 9890 | 3×300+1×150 | 63.4 | 11690 | 3×300+2×150 | 69.8 | 12887 |
| 3 × 400 | 71.1 | 12585 | 3×400+1×185 | 77.2 | 15766 | 3×400+2×185 | 78.1 | 16336 |
| | | | | | | | | |
| 4 × 1.5 | 11.1 | 145.7 | 4×1.5+1×1.0 | 11.8 | 165.2 | 5 × 1.5 | 11.9 | 171.5 |
| 4 × 2.5 | 12.1 | 194.3 | 4×2.5+1.5 | 12.8 | 219.3 | 5 × 2.5 | 13 | 231.3 |
| 4 × 4 | 13.2 | 261.6 | 4×4+1×2.5 | 14 | 297.6 | 5 × 4 | 14.2 | 314.2 |
| 4 × 6 | 14.5 | 352.4 | 4×6+1×4 | 15.4 | 403.9 | 5 × 6 | 15.6 | 426.4 |
| 4 × 10 | 17.6 | 547.3 | 4×10+1×6 | 18.4 | 617.7 | 5 × 10 | 19.1 | 666.7 |
| 4 × 16 | 20.1 | 799.1 | 4×16+1×10 | 21.4 | 915.9 | 5 × 16 | 22 | 978.8 |
| 4 × 25 | 24.3 | 1222 | 4×25+1×16 | 25.7 | 1397 | 5 × 25 | 26.6 | 1503 |
| 4 × 35 | 27.1 | 1626 | 4×35+1×16 | 28.1 | 1796 | 5 × 35 | 29.7 | 2004 |
| 4 × 50 | 31 | 2172 | 4×50+1×25 | 33 | 2461 | 5 × 50 | 34.2 | 2696 |
| 4 × 70 | 36.4 | 3080 | 4×70+1×35 | 38.3 | 3466 | 5 × 70 | 40.2 | 3825 |
| 4 × 95 | 41.2 | 4166 | 4×95+1×50 | 43.5 | 4682 | 5×95 | 45.8 | 5196 |
| 4 × 120 | 46 | 5244 | 4×120+1×70 | 48.8 | 5981 | 5×120 | 50.8 | 6513 |
| 4 × 150 | 50.9 | 6435 | 4×150+1×70 | 53.2 | 7163 | 5 × 150 | 56.5 | 8020 |
| 4 × 185 | 56.8 | 8034 | 4×185+1×95 | 59.6 | 9023 | 5×185 | 63.1 | 10010 |
| 4 × 240 | 64 | 10452 | 4×240+1×120 | 67.1 | 11691 | 5×240 | 71.1 | 13019 |
| 4 × 300 | 70.8 | 13017 | 4×300+1×150 | 74.2 | 14542 | 5×300 | 78.6 | 16213 |
| 4 × 400 | 79.6 | 16600 | 4×400+1×185 | 83.3 | 18509 | 5 × 400 | 88.5 | 20706 |
ApplicationThe cable is used in electric transmission and distribution system operating at rated voltage of 0.6/1kv.| Type | Description | Applications |
| YJV | Copper conductor, XLPE insulated, PVC sheathed power cable | For laying indoors, in tunnel or cable trench, unable to bear external mechanical forces. Single core cable is not permissible to lay in magnetic duct. |
| YJV22 | Copper conductor, XLPE insulated, steel tape armored, PVC sheathed power cable | For laying indoors, in tunnel, in cable trench or direct in ground, able to bear external mechanical forces, but unable to bear large pulling force. |
FAQ:Q1. What kind of products can your company supply? A: We specialize in supplying network cable, coaxial cable, power cable ,control cable , telephone cable, speaker cable and ect. Q2. What's your MOQ?A: The MOQ of long meter cable is 50 km, or we can negociate. Q3. What's your delivery time? A: Our delivery time is about 15-20 days after comfriming the deposite, it is based on the quantity of the order. Q4. What are your payment terms?A: Normally, we accept T/T in advance, as for other payment term, we can negociate with you. Q5. What's your trade term ? A: We can accept FOB, CIF, EXW term. Q6. What's your conventional packing ? A: 100m/plastic or wooden drum, 305m/wooden drum or color box. However, we can produce according your demand. Q7. Can your factory customize cables based on clients' samples or data sheet ? A: Yes, we can. Q8. Can you offer me a free sample?
A: Yes, we do, that is a start of business I think, and you will only pay the cost of delivery, which we will return it to you when you put the order.

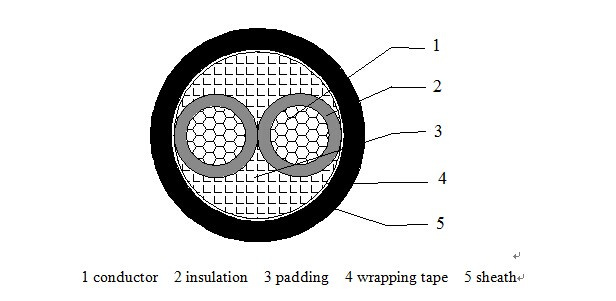

Structure Chart

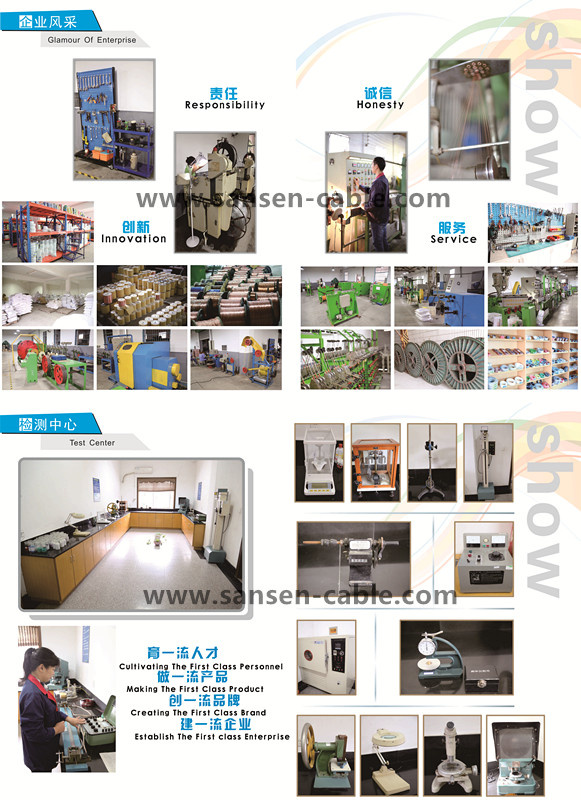

We are specialized in manufacturing of cables for more than 20 years. Can product Building cable, Electrical equipment cable, Automobile cable, Control cable, Coaxial cable, Network communication cable, Audio cable, Monitor cable and the like. We also offer OEM and ODM services.
Located in Huzhou, Zhejiang Province, where is between Shanghai and Hangzhou, we enjoy convenient transportation, thus we can ship goods in Shanghai Port as well as Ningbo Port. Our factory totally covers an area of 3, 000 square meters. High skilled staffs and technical engineers have been dedicated to cable techniques since our company was founded.
At the present, most of our customers are domestic trading companies, and 90% products are exported to all over the word via them; Meanwhile we are developing oversea market by ourselves.
We are keen on building long-term solid relationship with all serious buyers, with sincerity, we welcome you to China to visit our factory and office.
