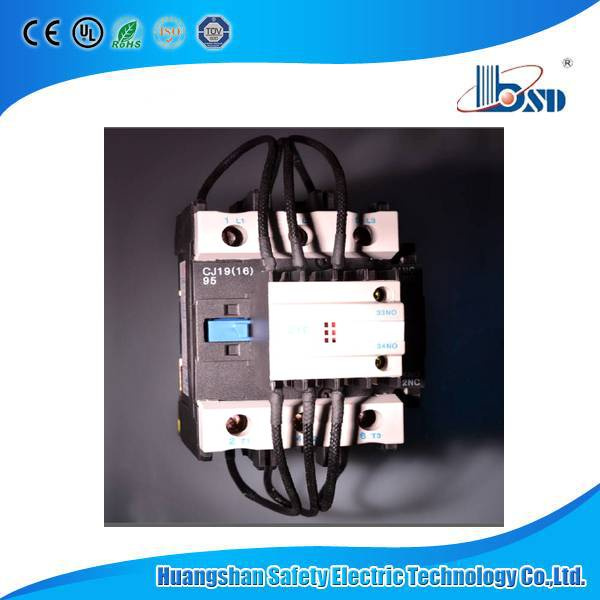

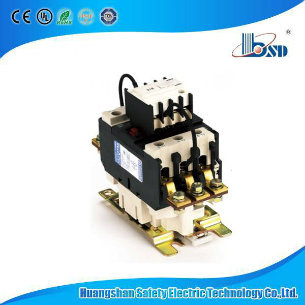

Power Contactor with Switching Capacitor for Reactive Power Compensation

Name: Power Contactor with Switching Capacitor for Reactive Power Compensation
Brand: all-electronics-online.com
SKU: 800737835
Availability: InStock
Rating: 5 (144 reviews)

Price:	US $ 2.1-2.4/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Specification

1.Application
CJ19 series changeover capacitor contactor is mainly applicable to a power line of AC 50Hzor 60Hz, rated working voltage up to 380V. It is used to put a low voltage parallel connectedcapacitor in operation or switch it off in a low voltage reactive power compensation device. Thecontactor is equipped with a surge suppressor, which can effectively reduce the surge currentpassing through the capacitor at weitching on and suppress the over-voltage at switching off.The product is in conformity with the standards IEC947-4-1.
2.Specification

Model		CJ19-25	CJ19-32	CJ19-43	CJ19-63	CJ19-95
Electrical lfie(×103)		100	100	100	100	100
Rated current le(380V)A		17	23	29	43	63
Power ofcontrolled capacitor	220/230V	6	9	10	15	22
Power ofcontrolled capacitor	380/400V	12	18	20	30	40
Rated insulation voltage Ui(V)		500
Rated operational voltage Ue(V)		380
Restrained surge capacity		20le
Operation range		Pick-up:(85%~110%)Us; Drop-out:(20%~75%)Us
Coil power(VA)	Start-up	70	110	110	200	200
Coil power(VA)	Holding	8	11	11	20	20
Control capacity of auxiliary contact		AC-15 360VA; DC-13 33W
Weight(Kg)		0.44	0.63	0.64	1.4	1.5

Prod Model:	CJ19
Type:	Cj19/16 Series Switch-Over Capacitor Contactor
Voltage:	220V or 380V
Service:	OEM or ODM
Current:	32-150A
Warranty Time:	Three Years
Certificate:	Ce LVD Test
