Power Transformer 500kVA Oil Immersed Distributing Transformer
| Price: |
US $ 6000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
power Transformer 500KVA Oil Immersed Distributing Transformer
Introduction for Products
The performance of our S9 S10 S11 series 10kV and 35kV three-phase oil-immersed transformer conform to the standard of GB 1094-1996 "Power Transformer " and GB/T6451-2008 "Technical
Para-meter and requirements of three-phase Oil-immersed Power Transformer". The iron core is made of quality cold -rolled silicon steel sheet, and the coil is made of quality oxygen-free copper, featuring good outlook and safe running. The products are widely used in power transmission and distribution of industrial and agricultural power networks
Main Function and Features
01) Iron core is made of cold-rolled silicon-steel sheet with high conduction of magnetism and adopts pulling-plank structure, so that its magnetic route is short, losses and noise level is low;
02) Compress wire is adopted for winding so losses are low and have good ability withstand short-circuit;
03) Its active part adopts special pressing method which could ensure reliable axial pressure; 04) The oil tank is bell type with the structure of full folding plate type, having an excellent exterior and easy for maintenance;
05) Adopting capsule-type oil container, it can reduce oil aging to the lowest degree.
06) Amount of local discharged: The apparent discharge amount is less than 80pC under the 1.5 times of rated voltage;
07) Noise: Products of 63MVA and below is lower than 58dB (AN);
08) Power loss: no-load loss is 30% lower than that of IEC standard;
09) Reliability: All in-service products have no damages or oil leakage occurred;

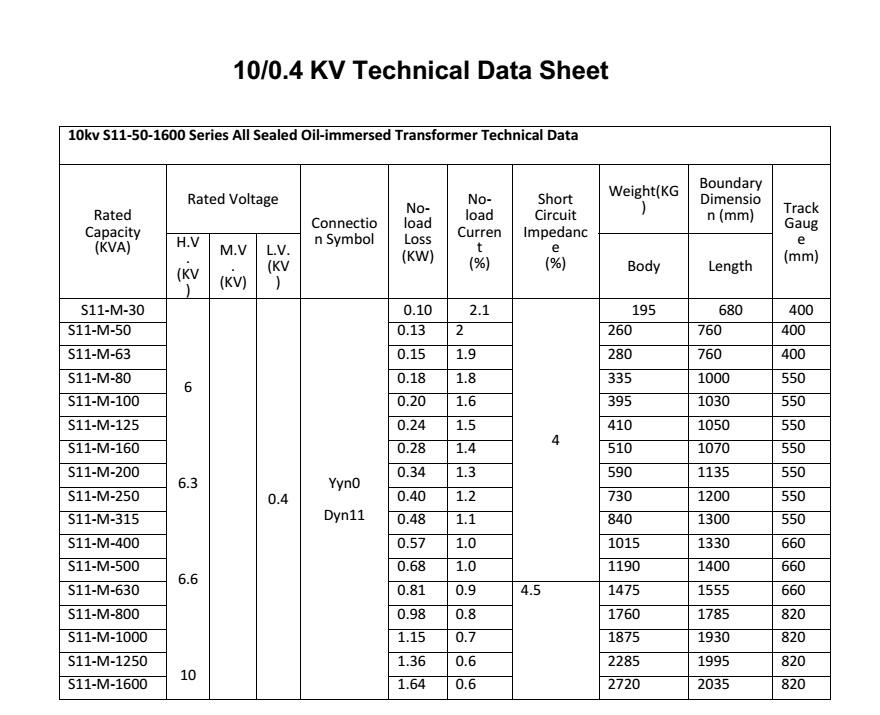

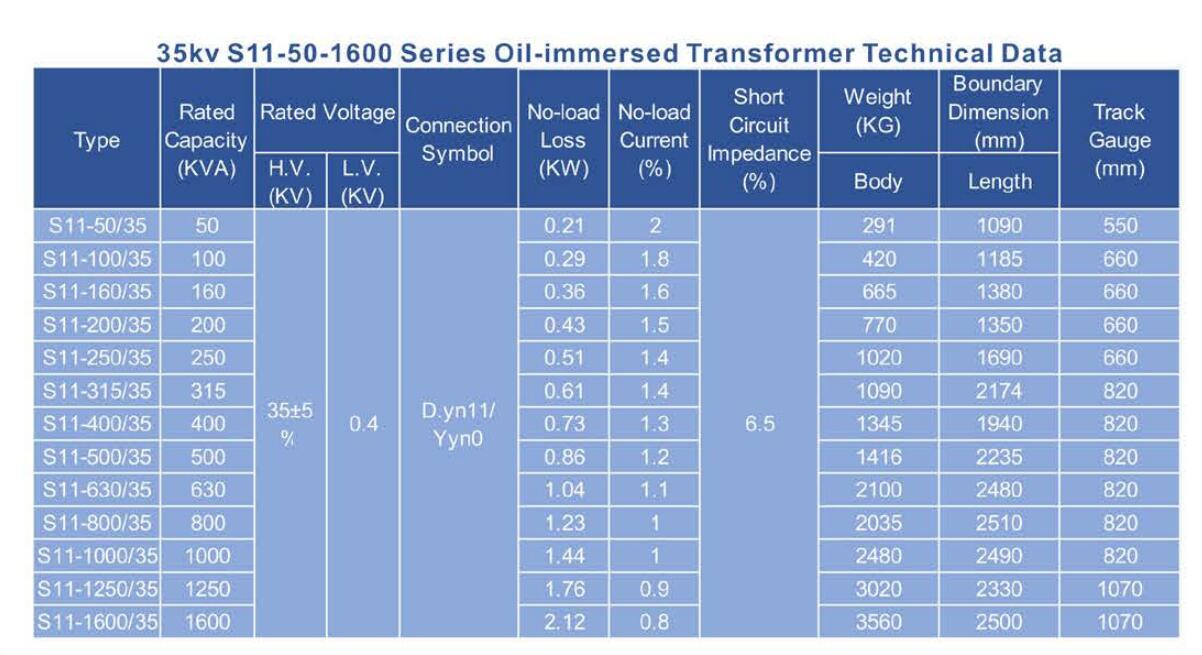

10) Oil tank with various kinds of structure and good appearance.Product parameter
Production process
Customer Visit
Welcome to visit our company !
contact us :bella@yr-group,cn
008615203796401
| Prod Model: |
S13 |
| Application: |
Power |
| Phase: |
Three |
| Coil: |
Core-type Transformer |
| Cooling Method: |
Oil-immersed Type Transformer |
| Winding Type: |
Two-winding Transformer |
| Brand: |
Asian Sun |

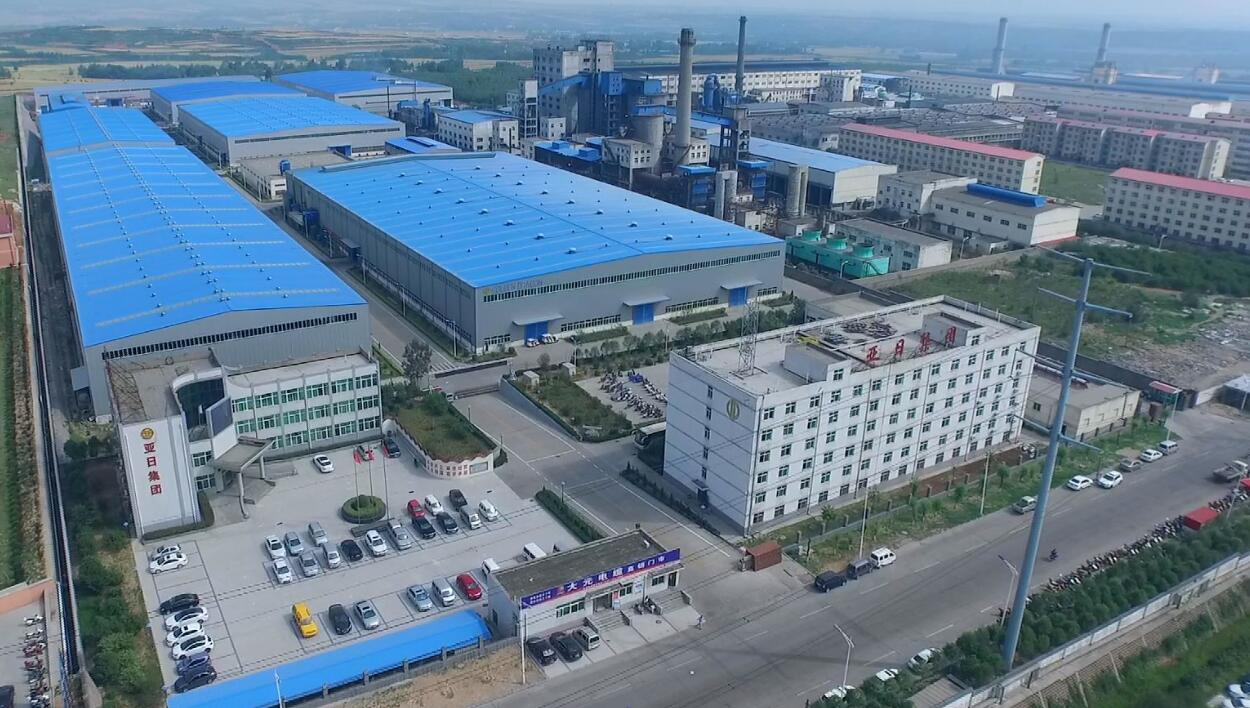

Started in year 2006, Luoyang Asian Sun Group - formerly known as 'Luoyang YaRi'- was a small factory with only tens of employees back then, but after years of growing and developing, now we are a group company with 5 branch companies, with more than 800 employees including 100 engineers and technicians, and with registered capital 410 million RMB. Our factories are located in county Yichuan, Luoyang, Henan, China, and our headquarters are in the beautiful historic city Luoyang. Totally we have 20, 000 square meters area for production and management, with fixed assets valuing 960 million RMB.
Our main products are power transformer, ABC cable, ACSR, AAC, Aluminum rod, PV bracket, screw pile, power cable, and aluminum bar etc. We also carry on projects of engineering, electrical installation and other general contracting. Our research, production and management are strictly in accordance with the ISO9001 quality system, ISO14001 environment system, OHSAS18001 occupational health and safety management system, the EU TUV, etc. The quality assurance is carried out in every aspect of design, material selecting, production, testing, inspection and management.
At home, we have reached strategic cooperation agreements with State Grid Corporation of China, GD Solar Co., Ltd., Huaneng China, Datang Corporation, China Power Investment Energy Conservation and Environmental Protection Group, and other large state-owned enterprises. At abroad, our products have been exporting to Russia, Middle East Asia, European Union, South America, Africa and other parts of the world.
Our continuing growth and success have been the direct result of the excellent word-of-mouth we consistently earn from both our new and established clients. Thinking of others' benefit and win-win cooperation is the core idea of our company culture. Perfection is not easy to achieve, but we chase it and we can catch excellence. Our excellence is the glamour which brings the good quality and service into every clients.
We guaranteed products at a competitive price and high quality. At present, our products have a very good sale in domestic and overseas market. We wish to cooperate with you to create a bright future and mutual benefit. Much appreciation for your prompt attention in advance, we are eager to look forward to hearing from you soon.
