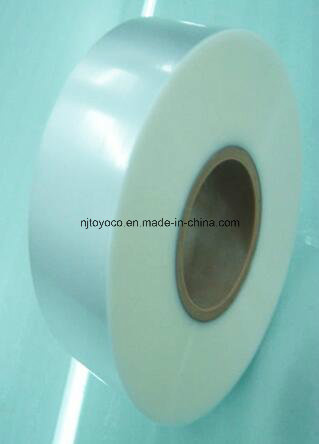

PP Periosteum for Capacitor Use

Name: PP Periosteum for Capacitor Use
Brand: all-electronics-online.com
SKU: 714103282
Availability: InStock
Rating: 5 (39 reviews)

Price:	Negotiable/Ton
Min Order:	1/Ton
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

VvPackaging & Delivery

Packaging Details	Standard Package: Wooden Pallet, Wooden Case.
Delivery Detail	7-10 days

Specifications

Electrical grade PP Film (periosteum), 6012(RB), with good flatness,good winding property;rough surface;good impregnation, good electrical and mechanical property, compatible solvency for many insultion oil,small swelling.
6013(RRB),good flatness,good winding property;rough surface;good impregnation, good electrical and mechanical property, compatible solvency for many insultion oil,small swelling. Impregnation and electrical insulation properties is better than that of 6012(RB).
6012 can be used in film and paper composite power copacitor, film power capacitor, and etc. 6013 can be used in many kinds of power capacitor, for both sides roughness,can be used in producing film power capacitor.

Technical Data Sheet

Properties	Unit	Requirements					Test Method
		Nominal Thickness (micron)
		14	15		16	18
Density	g/cm³	0.905	0.905		0.905	0.905	GB/T1033.1-2008
Melting Point	ºC	165	165		165	165	IEC61074:1991DSC
Thickness Tolerance	Averag-e Indivi-dual	+/-5.0 +/-10.0	+/-5.0 +/-10.0		+/-5.0 +/-10.0	+/-5.0 +/-10.0	GB/T13542.2-2009,4.1.2
Tensile Strength Linear Lateral	Mpa	140 150	140 150		140 150	140 150	GB/T 13542.2 -2009,11
Elongation at Break Linear Lateral	%	90 70	90 70		90 70	90 70	GB/T 13542.2 -2009,11
Shrinkage Linear Lateral	%	4.2 3.5	4.1 3.8		4.2 3.5	4.2 3.2	GB/T 13542.2 -2009,23
Volume Resistivity(200±5ºC)	Ω.m	3.1*10¹⁷	3.2*10¹⁷		3.2*10¹⁷	3.2*10¹⁷	GB/T 13542.2 -2009,16
Dielectric Loss Factor(50Hz,1kHz)	---	1.7*10^-4	1.7*10^-4		1.7*10^-4	1.7*10^-4	GB/T 13542.2 -2009,17
Relative Permittivit-y (50Hz,1kHz)	---	2.2	2.2		2.2	2.2	GB/T 13542.2 -2009,17
Surface Roughnes-s(Ra)	micron	0.25	0.40		0.40	0.45	GB/T 13542.3 -2006,6.10
Voidage	Averag-e Max. Min.	8.5 11.0 6.0	7.3 10.0 5.5		8.5 11.0 6.0	9.0 11.0 6.0	GB/T 13542.3 -2006,6.9
Power Frequency Electrical Strength 50 dot pole	V/ μm. DC	500 420	510 420		510 420	510 420	GB/T 13542.2-2009,18.2
Power Frequency Electrical Strength element	V/ μm. DC	340 200		330 210	340 210	330 210	GB/T 13542.2-2009,18.2
Electrical Weakness	Pcs/sq-m	0.1		0.1	0.1	0.08	GB/T 13542.2-2009,19

Store

Working temperature is 100ºC,and keep away from combustion source, heat source, and do not receive direct sunlight, sheld life since manufacturing data is 13 months.
When slitting and using, crack at the edge, scratches on surface, greasy dirt and dust should be avoided.

Packaging & Shipping

Normally the out - packaging for the goods is wooden pallet or wooden case, we can deliver it by air or by ship.
Airport: Beijing, Tianjin, Qingdao, Nanjing, Shanghai, Guangzhou, Shenzhen
Sea Port: Tianjin,Qingdao, Shanghai, Ningbo, Guangzhou
Packing Type Photo is as the following:

Prod Model:	6012(RB)
ID Of The Core:	50 or 76 mm
Product Type:	Film,Roll
Tensil Strength:	Different with Thickness
Hardness:	Soft
Smell:	No.
Sample Size:	A4 or Others
Application:	Motor
Type:	Insulation Film
Chemistry:	Organic Insulation
Thermal Rating:	A 105
Maximum Voltage:	<10KV
Material:	PP
Brand:	Toyo

We are major in insulation material of various classes, from B to F, and from F to H, TOYO'S products are widely used in Motors, Generators, Welders, Electrical Heaters, and etc. And provide assurances for their long time, stability work.

The test results of from SGS Shanghai branch indicate that the TOYO's products are in conformity with EU RoHS Directive 2002/95/EC and subsequent revision directives. And our product conforms to REACH regulation's requirements (the newest version) of European Union after tested, and also passed UL certification of American and Canada.

" TOYO" Team was composed of many senior electrical engineers, and insist on response to every client's enquiry 100%. Maintaining good cooperative relationship with main manufacturers in domestic for long term, and this provides " TOYO" With stable product quality; Reasonable prices; Timely supply.

We started to do the foreign trade since 2014, because of the good faith, now we have had so many customer from home and abroad. We are also planning to making the investment to enhance the relationship with our key suppliers, and meet our customer's requirements.

Welcome you to contact us and discuss business at any time.
