Printing Circuit LED Windows Control Panel Film Electronic Switch

Prod Model:	HC-MS-072
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Membrane Switch:	Multi-Function in Electronic Control System
Flexible Printing Circuit:	Printed with Silver or Carbornate Paste
Long Life Switch:	Long Life Performance
Light Weight:	Light in Weight
Mulit-Layer:	Pet or PC Multi-Layer as Per Request
Material:	PC
Type:	Convex
Application:	Machines

Product Description

Printing Circuit Led Windows Control Panel Film Electronic Switch

Feature:

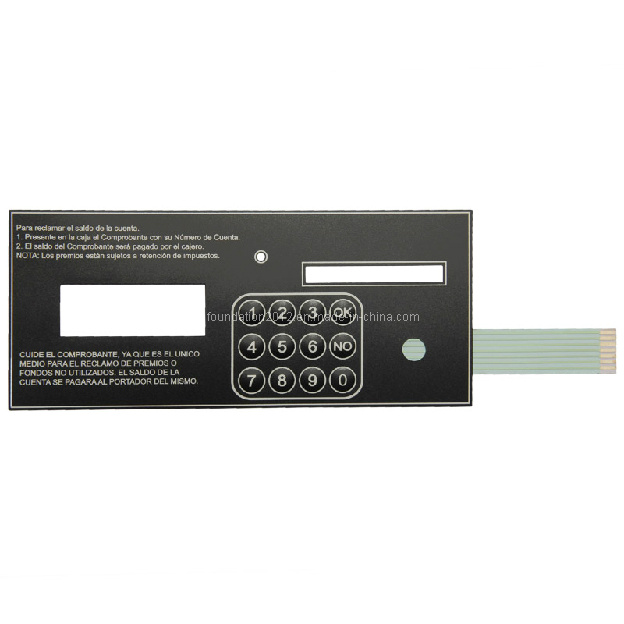

Membrane keypad with LED windows
Membrane Keypad with shielding
Membrane keypad with LCD window

Overlay Materials: Autotype Polyester, GE PC
Rear Adhesive: 3M 467MP, 3M 468MP, etc.
Standard Tolerances: +/-. 010 inch.
Matching color: Pantone and RAL color matching system.
Tail, pin and circuit layout: Subject to customers detailed requests.
Type of Switch:
Non tactile
Tactile with stainless steel domes
Tactile with poly domes on the circuit
Notice: We have the capacity to provide you membrane switches with other special requirements, such as Shielding, Windows/Lens Coating, Embossing, Embedded LED, UV glossy/matte/textured, etc.
Electrical:
Operating Voltage: 0-35 VDC.
Operating Current: 100 MA Max.
Operating Contact Resistance: Less than 100 OHMS typical
Contact Bounce: Less than 5 Milliseconds typical.
Conductors: Printed silver conductive inks or carbon blend.
Mechanical:
Life Expectancy: 1, 000, 000 actuations per switch position
Actuation Force: 170-700g, Range depending on customer specification.
Switch Travel: . 0.1mm-0.4mm typical.
Overall Thickness: . 0.6mm-1.52mm typical.
Environmental:
Storage Temperature: -40° C to +65° C
Operating Temperature and Altitude: -40° C to +65° C
Humidity: No delamination after 24 hours at 80° C and 90%RH.
