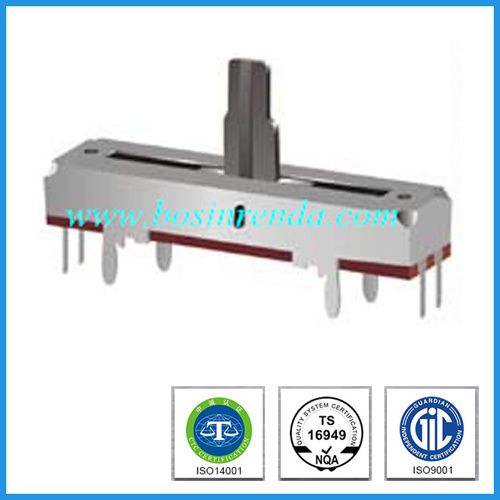

Professional Chinese Supplier Slide Potentiometer with Plastic Lever for Mixers

Name: Professional Chinese Supplier Slide Potentiometer with Plastic Lever for Mixers
Brand: all-electronics-online.com
SKU: 721304812
Availability: InStock
Rating: 4.5 (95 reviews)

Price:	US $ 0.05/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Potentiometer, slide potentiometers, audio potentiometers

Bosin electronics is a manufacturer specializing in rotary encoders, potentiometers and switches. Our company passed ISO9001, ISO14001, ISO/TS16949.

Please check below specification.

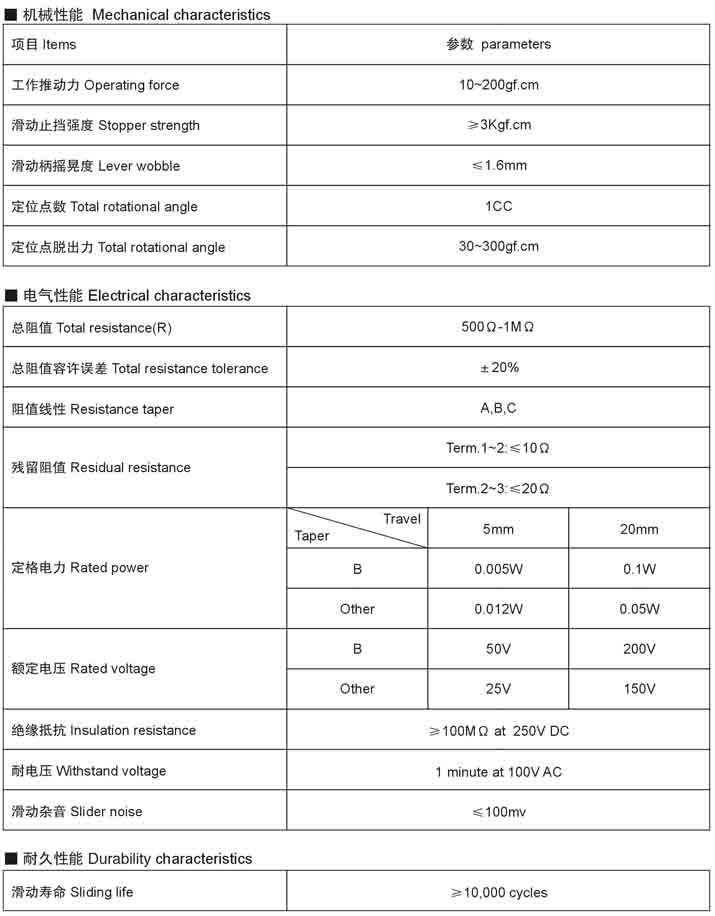

1.Electrical Characteristics for slide potentiometer
1.1 Total Resistance: 1KΩ~1MΩ 1.2 Total Resistance Tolerance: 500 Ω R< 500Ω or R>1M Ω:±30% 1.3 Resistance Taper: A, B, C 1.4 Withstand Voltage: 1 minute at AC 300V 1.5 Insulated Resistance: More than 100MΩ at DC 250V 1.6 Sliding Noise: Less than 100mV 1.7 Residual Resistance: 20mm: Term.1~2: Less than 10Ω; Term.2~3: Less than 20Ω 30mm, 45mm, 60mm: Term.1~2: Less than 10Ω; Term.2~3: Less than 30Ω Gang Error (Dual Unit):-40dB~0dB±3dB Rated Voltage: Linear Taper B:15mm:AC 100V; 20mm,30mm,45mm,60mm:AC 200V; Other Tapers:15mm:AC 50V; 20mm,30mm,45mm,60mm:AC150V 1.8 Rated Power (Single Unit/Dual gangs): Linear B Taper: 15mm:0.05W/0.025W 20mm:0.1W/0.05W, 30mm:0.2W/0.1W, 45mm:0.25W/0.125W, 60mm:0.2W/0.2W; Other Tapers:15mm,0.025W/0.012W, 20mm:0.05W/0.025W, 30mm:0.1W/0.05W, 45mm:0.125W/0.06W, 60mm:0.1W/0.1W
2.Mechanical Characteristics
2.1 Level push-pull strength: 3.0Kgf Min at 10 Sec. 2.2 Slide torque: 10gf~100gf 2.3 Stopper Strength: 5.0Kgf Min (from the base level to a point of 2mm) 2.4 Detent Torque (only center click):50gf~200gf 2.5 Level Wobble: 2(2xL)/20mm Max. (L: Level length both sides)
3.Durability
3.1 Sliding Life: Standard life: 15,000 Cycles Min.; Long life: 100,000 Cycles Min.

Prod Model:	SL303
RoHS:	100%
Certificate:	ISO9001, ISO14001, Ts16949
Resistance:	Variable Resistor
Function For Resistance:	Load Resistor
Installation:	DIP Resistor
Material:	Carbon Film Resistor
Type:	Slide Potentiometer
Package Type:	Plastic Box, Carton
Brand:	BS

Bosin Electronics Ltd is invested by Bosin holdings which established in 2006.

The copmany specializing in designing and manufacturing potentiometer, encoder, switch and DC motors. Now our company factory area is about 10000 m2, employees more than 600 persons and technicians more than 60 persons. And we all staffs have strived for five years to build up a set of completely production flow including of developing new product, mould manufacture, spare parts or components manufacture, finished product assembly. We build up a good image of " Bosin" in our field and the products already accepted by LG, PHILIPS, SANYO, BBK, Malata, etc. For a long time.

After decade of efforts, the Bosin products have been sent to over 100 countries, including rotary potentiometers, slide potentiometers, trimmer potentiometers, super-thin potentiometers, encoders and rotary switches, widely applied to computer/multimedia peripherals and various industrial fields. All products are RoHS compliant. For further improving the compatibility and making effort to our quality policy of "Keep Improving, Quality Assurance", the Bosin takes most advanced management mechanism and technologies that including computerized jigs and dies design, automatic assembly facilities and so forth. Now, the Bosin has the capability of producing over 1200 different kinds of hardware, 16 series with about 240 models of potentiometer to meet most of the requirement of the potentiometer market.

The Bosin has passed the certificate of ISO 9001-2000, ISO 14001-2004, TS16949, this assures to satisfy our clients with best quality of products and services. Now, the Bosin is devoting all its efforts to become the top of the potentiometer manufacturer in China.
