| Prod Model: |

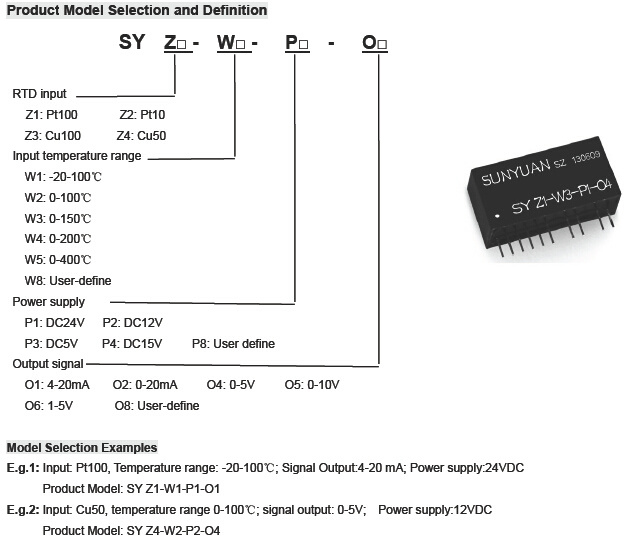

SY Z-W-P-O Series |
| Model: |
Sy Z-W-P-O |
| Input: |
PT100, PT10, PT1000, Cu100, Cu50,etc. |
| Output: |
4-20mA/0-20mA/4-12mA/0-5V/0-10V/1-5V,etc. |
| Isolation Method: |
Electromagnetic Isolation |
| Isolation Voltage: |
3000V Between Power Supply and Signal Channel |
| Main Circuit Type: |
Current |
| Application: |
PLC and Dcs or The Other Equipment Module Input at |
| Industrial Temperature: |
-45~+85 Centigrade |
Product Description
Non-isolation RTD Thermal Resistance Signal Transmitter RTD PT100 TO 4-20mA 0-5V Converter SY Z-W-P-O
Features
Three-wire, four or two-wire PT100/Cu50 signal input.
Accuracy, Linearization error grade:0.2 (Relative Temperature).
Built-in linear processing and long-term compensation circuit.
Isolation Voltage: 3000VDC between power and singal I/O.
Auxiliary Power Supply: 5V, 12V, 15V or 24VDC.
International standard signal output: 4-20mA/0-5V/0-10V,etc.
Small size, low cost, easy use and high reliability.
Standard DIP 24/SIP12 Pin, UL94V-0 package.
Industrial temperature range: - 45ºC ~ + 85 ºC.
Applications
Temperature signal isolation, acquisition and transfer.
Industry site high-precision temperature measure.
Terminal resistance signal isolation and temp. control.
Ground interference suppression.
Temperature sensor signal converter to standard signal.
Oil temperature measure and alarm.
Signal remote without distortion transmission.
Power monitoring, medical equipments, temperature control isolation barrier
SY Z-W Series is a mixed integrate circuit that thermal resistance signal as temperature high/low isolation converter to
linearity standard signal to temperature. It integrated a set of isolated DC/DC converters, Linearization disposal and long line
compensate circuit, can bring two group of each other isolated power to input port for magnifying circuit, modulating circuit
powered and output port demodulation. They can meet industrial wide temperature, humidity, shaky poor operation condition.SY
W-Z Series temperatures signal isolation amplifier is very convenient, with minimal external components, can be realized Pt100
RTD signal isolation transmitter. And can achieve the industrial site temperature control signal into two, into four functions.
| Continue isolation voltage value: 3000VDC |
| Auxiliary power supply range: ±25%Vdd |
| Junction Temperature - 45ºC ~ + 85ºC |
| Lead temperature (10Secs): +300ºC |
| Vout signal load(MIN): 2KΩ |
