Pure Copper 70mm2 Welding Cable

Name: Pure Copper 70mm2 Welding Cable
Brand: all-electronics-online.com
SKU: 813506925
Availability: InStock
Rating: 4.6 (57 reviews)

Price:	US $ 0.03/Meter
Min Order:	5000/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	rv
Length:	100m/Roll
Package:	Fillm Packing
Delivery:	15-20days After Payment
Colour:	as Client's Requirement
Type:	Insulated
Conductor Type:	Stranded
Application:	Heating
Conductor Material:	Copper
Insulation Material:	PVC
Certification:	VDE
Brand:	Yongkuntai

Product Description

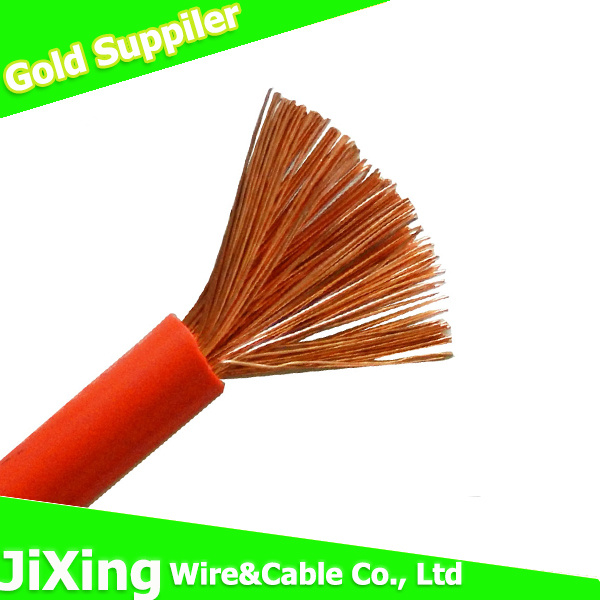

Pure Copper 70mm2 Welding Cable

1.Product Description

Item: 70mm2 Welding Cable
Model: YH/YHF.
YH:cabtyre covered electric welder cable 60245 IEC 81.
YHF:chloroprene rubber or other man-made elastomer covered electric welder cable 60245 IEC 82.
Specification:
Section-area of conductor:10 sq mm,16 sq mm,25 sq mm,35 sq mm,50 sq mm,70 sq mm,95 sq mm,120 sq mm,150 sq mm,185 sq mm.
Welding wire/welding cables construction:
Conductor: Fully annealed stranded bare copper per ASTM B-172.
Jacket: Black or Red Ethylene Propylene Diene Monomer Rubber (EPDM)
Additional Jacket Colors: Also available in orange, yellow, blue or green
Implementation of the standards: GB/T 5013-2008
Quality Standard: CCC,CE,ROhs,SGS,ISO 9001 certifications.
Rated voltage:450/750V
Soaked one hour, Wire subjected to alternating current 50Hz 250V (450 / 750V), 2000V (300 / 500V) voltage test 5 minutes without breakdown.
Operating temperature: Long-term operating temperature does not exceed the maximum 70 ºC.

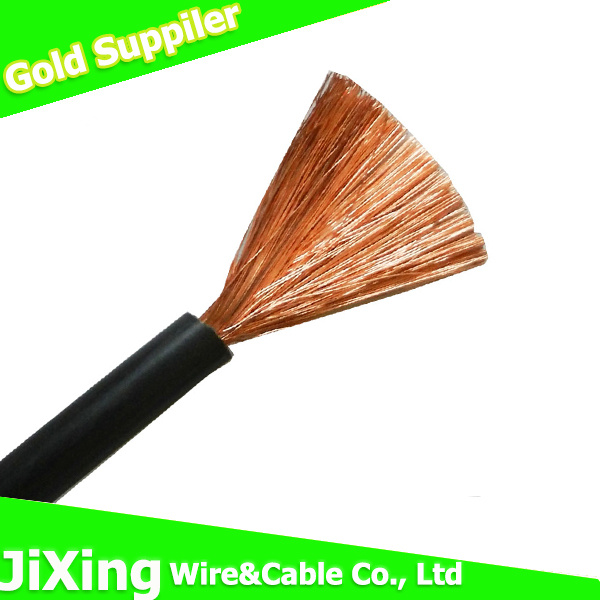

Color: color of sheath:black, red; Also available in orange, yellow, blue or green.
Application:
Secondary voltage resistance welding leads
Power supply applications not exceeding 600 volts A.C.
Weld Wire Features:
Weld Wire is resistant to cuts, tears and abrasion in addition to moisture.
Welding Wire offers good color retention along with great flexibility.
Key technical parameter of different specifications and models:

Cross-section area (mm2)	Wire gauge (cores/mm)	Weight (kg/km)	Upper limit of OD (mm)	Maximum resistance at 20 ºC (Ω/km)
10	322/0.2	146	9.7	1.91
16	513/0.2	218.9	11.5	1.16
25	798/0.2	316.6	13	0.758
35	1121/0.2	426	14.5	0.536
50	1596/0.25	592.47	17	0.379
70	2214/0.2	790	19.5	0.268
95	2997/0.2	1066.17	22	0.198
120	1702/0.3	1348.25	24	0.161
150	2135/0.3	1648.5	27	0.128
185	1443/0.4		29	0.106
