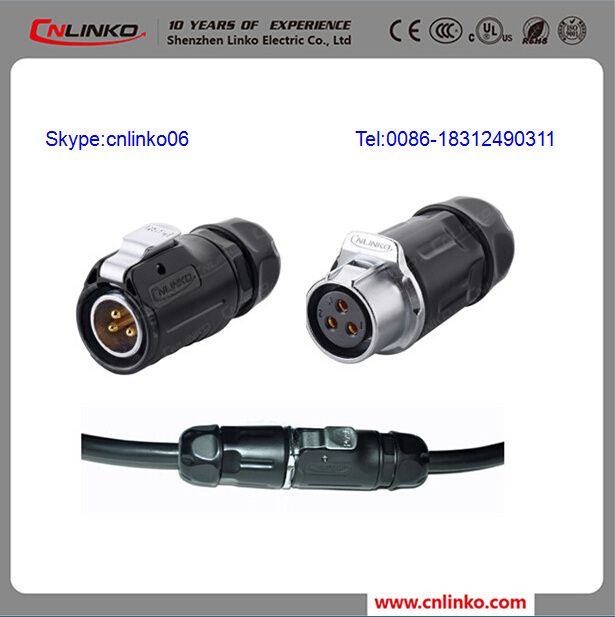

Push Pull Connector IP65 3 Pin Power Connector/3Pin 20A Circular Connector
LP-20 Series connector is widely used in variety of challenging environments due to its high-precision,high-quality automatic insertion ,self-locking devices and waterproof, such as :LED screen industry, audio-visual equipment,medical equipment,industrial control ,test and measurement equipment,AV systems,broadcast television and communications industry and other fields.
1.multi-pins(2-12 PINS) for varies industrial demands
2.Zinc alloy material against high frequency noise and electromagnetic interference
gold-plated contact, high performance of corrosion resistance and electrical
conductivity effectively deal with temperature rise.
3.PBT shell performance stable,compression, anti-explosion and anti-deformation
4.unique LINKO clamp , 4 holes for installation ensure stable
5.rated current: 20A rms
6.protection level:IP67/IP68
Specifications:
Connecting mode | Pull&Push |
Protection level | IP65/67 |
Cable specification | 2.5mm ² ~ 4mm ² /14~12AWG |
Diameter range | Φ8mm ~Φ12mm |
Contact diameter ×Qty | Φ2.7x3 |
Current rating(A) | 20A |
Operating voltage(AC.V.rms) | 500V |
Withstand voltage(AC.V)1min | 2500V |
Insulation resistance | >500MΩ |
Durability | ≥500 mating&unmating cycles |
Temperature rating | -40°C~80°C |
Prevent the combustion level | UL94-V0 |
Temperature rise | 12A per contact at 30°C, 15A per contact at 40°C, 20A per contact at 50°C |
Color | Red |
Protective housing | PBT Material |
Install method | 1/4 Quick bayonet |
Material | |
Shell&Insulated parts | High performance engineering plastics |
Hardware metal | Zinc alloy(pearl hard chromium) |
Assembly wire | Solder |
Copper needles | Copper alloy(gold-plated) |
Waterproof | Silica gel |
Packaging & Shipping
Normally, our price is based on our box packing.Customized packing is welcome , MOQ of printing customized box is 1000 pcs/modelDelivery Detail: 1-10 working days after received deposit .You may choose our shipping partner or your own partner .100% T/T in advance is required after confirming the order.
Our Services
CE,CCC,CUL,UL, ROHS, ISO9001:2008 Standard.Supply OEM service .We have professional quality control system and R&D department to strictly manufacture each product.100,000 pcs per month .National level laboratory , and have flexible production line, to make quick action to urgent customized needs.We will supply the best service to you . Anything ,please feel free to contact us at:
Cellphone: 0086-18312490311
Telephone:0086-0755-86960323
Founded in 2004, Shenzhen Linko Electric Co., Ltd is a manufacturer in designing and manufacturing and marketing in the field of connectors.
We adhere to such principles"Integrity-base, quality-first, technological precedence&greater perfection. " After 10 years stabled developed, perfect management system was established, with creative, efficient, dedicated, rigorous R&D team, advanced production line.

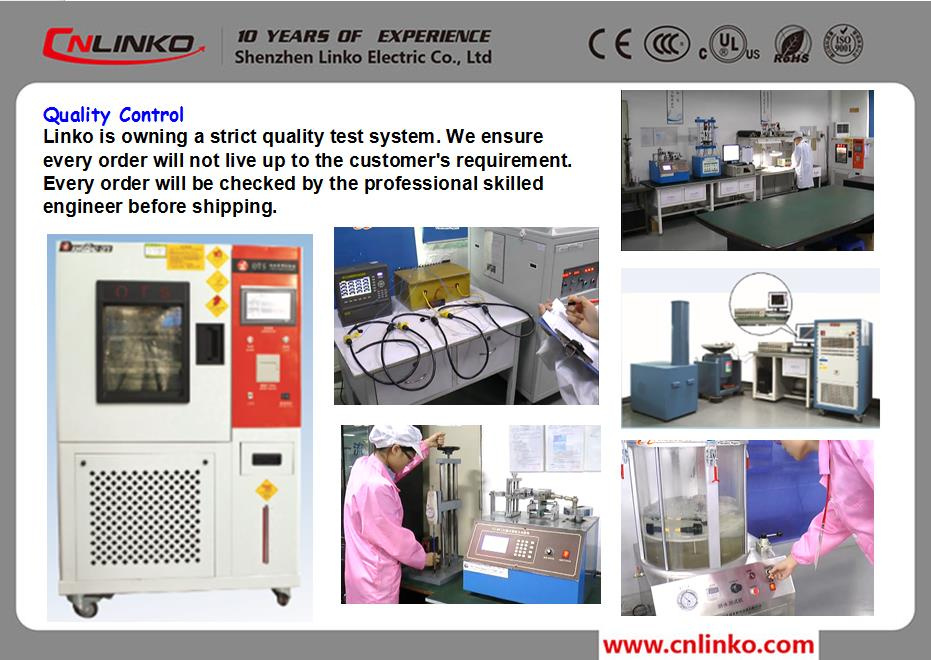

Powerful product testing and quality testing laboratory and also covers dozens of professional files testing, excellent sales team and strong channels distribution net work.
Specializing in design high-performance industry connectors and approved by identification UL(E365869), CE, CCC, ISO9001-2008 and also with more than dozens of patents and international certifications.
We will always keep skills fresh and up-to data with international.
Cnlinko's products are widely used in variety of challenging enviroments, such as LED screen, LED lighting, Audio visual equipment, stage lighting, industrial automation equipment, heavy industrial equipment and the others.
Welcome to visit us and joint designing and develop new products, For the goal win-win cooperation and mutual benefit.
