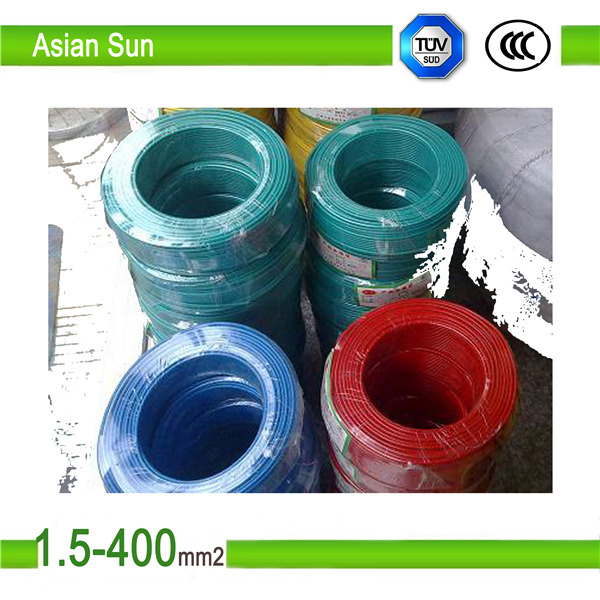

PVC or XLPE Insulated Power Cable
Application
For laying indoors , in-tunnel or cable trench,unable to bear external mechanical forces,Single-core cable in magnetic duct is not permissible. This product is applicable to being fixedly laid on the transmission and distribution line of alternative current rating 50Hz and rated voltage up to 0.6/1.0Kv with the use for power transmission, which is applied to the range of distribution network, industrial equipments, etc.
Flame-retardant power cable mostly used for the occasion of flame retardant requirement, fire-safe power cable can be used in underground railways, stores, shopping malls, high buildings, dense population, ventilation limited occasions.
Technical Features
1)good perforamnce on electrical characteristic, chemical resistance, such as acid resistance, alkali resistance and organic solvent resistance.
2)product can be laid on any head drop condition even vertically in any place,that's to say, the cable can laid without limit on head drop.
Specification:
| 1 | conductor | copper/ aluminum |
| 2 | no. of core | 3 4 5 3+1 3+2 4+1 etc |
| 3 | rated voltage | 0.6~35KV |
| 4 | nominal cross-sectional area | 1.5~400mm2 |
| 5 | test voltage | 3.5kv/5min |
| 6 | insulation | pvc/xlpe |
| 7 | sheath | pvc/xlpe |
| 8 | armour | Galvanized steel wire armored(SWA) or steel tape armored(STA) |
| 9 | standard | IEC60502-1, IEC 60228, IEC60332 -1/2/3. |
Power Cable Operating Characteristics:
1).Max.permissible continuous operating temperature of conductor(PVC/XLPE): 70°C/90°C
2). Max.short-circuit temperature of conductor shall not exceed(5s maximum duration) XLPE:250°C
3). The ambient temperature under in installation shall not below 0°C
4). Bending radius:
A, Common bending radius:
a. ≥20D (1and 2cores)
b. ≥15D (3 cores)
c. ≥15D (2 cores with armor)
d. ≥12D (4,5,3+1,4+1,3+2 cores with armor)
e.= outer diameter
B, Bending radius for the section which near the junction and connector:
a. ≥15D (1 and 2 cores)
b. ≥12D (3, 4,5,3+1,4+1,3+2 cores)
c. ≥12D (2 cores with armor)
d. ≥10D (3, 4, 5, 3+1,4+1,3+2 cores with armor)
Characteristic of use:
| 1 | max. operation temperature of conductor | 90°C |
| 2 | Max. short circuit temperature of conductor | 250 °C |
| 3 | Allowable Min. bending radius | 20 times of the cable diameter |
Main Cores we can supply for 0.6/1kV Power Cable:
| 1 | single core | 1.5 mm2 ~ 400 mm2 |
| 2 | two-cores | 2x1.5mm2 ~ 2x400mm2 |
| 3 | three-cores | 3x1.5mm2 ~ 3x400mm2 |
| 4 | four-cores | 4x1.5mm2 ~ 4x400mm2 |
| 5 | five cores | 5x1.5mm2 ~ 5x400mm2 |
| 6 | (3+1) cores | 3x2.5+1x1.5mm2 ~ 3x400+1x185mm2 |
| 7 | (4+1) cores | 4x2.5+1x1.5mm2 ~ 4x400+1x185mm2 |
| 8 | (3+2) cores | 3x2.5+2x1.5mm2 ~ 3x400+2x185mm2 |
Quality&Service:
1) Quality control strictly follows ISO9001:2008 and ISO14001:2004, while guarantee that all products we supplied are totally new and unused. They are made of best material by first-class process techniques while tested and qualified by all specified testing items.
2) The Company promises to offer high-quality after-sale service to our customers. The service for cable fixation, installation and testing are available at customer request, if necessary technicians are sent to give instructions to the customers. After make sure it is the problem on quality we will repair or replace the defected products, the concerned expense or loss will be at our side.
3) The Company guarantees to deliver products in compliance with the bidding documentation.
4)The Company promises to offer cooperation and service according to the binding contract and requirements of supervision, testing for products.
About Package
simple roll, plastic drum/reel, wooden pallet/box, cartons or customized as your requirement
About Asian Sun Group
1: a group with seven sub-companies;
2: Factory covers about 200,081 square meters;
3: 800 staffs and 40 engineers, 11 production lines;
4: production capacity: 100,000m/day;
5: ISO,CCC,TUV Certificate;
6: Delivery fast;
7: 25 years service life;
8: Own raw material workshop;
9: 100 % inspection during every process;
10: Profit came from 50 plus countries.
Our Products
Mainly Electric Cables & Wires, 300 Varieties, 2000Kinds Specifications
| No. | Products Name |
| 1 | pvc/xlpe electrical wires, power cables, control cables |
| 2 | solar cables |
| 3 | aerial cables |
| 4 | all aluminum conductor(AAC) |
| 5 | aluminum conductor steel reinforced wire(ACSR) |
| 6 | all aluminum alloy conductor(AAAC) |
Our service
1) Inquiries are answered within 12 hours and OEM is welcome.
2) 11 production lines, experienced QC to control the quality of kinds of cables.
3) CCC Certificated, and can provide CE, RoHS and SGS certificates before exporting.
4) Grown from a small factory with annual turnover of $50,000,to over$50,000,000 during 10years.\
5) Ship your order immediately after contracted. We ship worldwide.
6) 800 staffs and 40 engineers, we all glad to provide you best service.
Welcome You Visit Our Factory!
Please Contact Us
Name: Lina Zhao
Position: International Trade Department
Mobile + 86-135-1384-7955
Web: http://www.yr-group.cn
Group Address: 1209 Room, 12th floor, Luoyang Asian Sun Group Co., Ltd, Hundsun Science&Technology Park, Luoyang, Henan Province, China
Factory Address: Yichuan Electricity Industry zone, Luoyang, Henan Province, China
Welcome you come Luoyang and visit our factory!
Started in year 2006, Luoyang Asian Sun Group - formerly known as 'Luoyang YaRi'- was a small factory with only tens of employees back then, but after years of growing and developing, now we are a group company with 5 branch companies, with more than 800 employees including 100 engineers and technicians, and with registered capital 410 million RMB. Our factories are located in county Yichuan, Luoyang, Henan, China, and our headquarters are in the beautiful historic city Luoyang. Totally we have 20, 000 square meters area for production and management, with fixed assets valuing 960 million RMB.
Our main products are power transformer, ABC cable, ACSR, AAC, Aluminum rod, PV bracket, screw pile, power cable, and aluminum bar etc. We also carry on projects of engineering, electrical installation and other general contracting. Our research, production and management are strictly in accordance with the ISO9001 quality system, ISO14001 environment system, OHSAS18001 occupational health and safety management system, the EU TUV, etc. The quality assurance is carried out in every aspect of design, material selecting, production, testing, inspection and management.
At home, we have reached strategic cooperation agreements with State Grid Corporation of China, GD Solar Co., Ltd., Huaneng China, Datang Corporation, China Power Investment Energy Conservation and Environmental Protection Group, and other large state-owned enterprises. At abroad, our products have been exporting to Russia, Middle East Asia, European Union, South America, Africa and other parts of the world.
Our continuing growth and success have been the direct result of the excellent word-of-mouth we consistently earn from both our new and established clients. Thinking of others' benefit and win-win cooperation is the core idea of our company culture. Perfection is not easy to achieve, but we chase it and we can catch excellence. Our excellence is the glamour which brings the good quality and service into every clients.
We guaranteed products at a competitive price and high quality. At present, our products have a very good sale in domestic and overseas market. We wish to cooperate with you to create a bright future and mutual benefit. Much appreciation for your prompt attention in advance, we are eager to look forward to hearing from you soon.
