1.PVC Insulated Installation Cables And Conductors.>>PVC insulated conductor - single wire (solid)
>>PVC insulated conductor - multi wire
>>PVC insulated conductor - fine wired
>>PVC insulated flexible flat cable>>PVC insulated and sheathed light fine wired cable
>>PVC insulated and sheathed flat installation cable with detached cores
>>PVC insulated and sheathed installation cable with screen2.Power Cables 1-30KV>>Power and signal cable 0,6/1 kV, PVC insulated and sheathed
>>Power and signalling cable 0,6/1 kV, PVC insulated and sheathed, with concentric protective Cu conductor
>>Power cable 0,6/1 kV, PVC insulated and sheathed with corrugated concentric protective Cu conductor
>>Power and signalling cable 0,6/1 kV, PVC insulated and sheathed, with steel tapes armour
>>Power and signal cable 0,6/1 kV, PVC insulated and sheathed, with armour of round galvanized steel wires
>>Power and signal cable 0,6/1 kV XLPE insulated, PVC sheathed
>>Power and signal cable 0,6/1 kV, XLPE insulated, PVC sheathed, with concentric protective Cu conductor
>>Power and signal flexible cable 0,6/1 kV, insulated with rigid EPM-rubber, PVC sheathed, with reduced release of corrosive gases
>>Power cable 0,6/1 kV, PVC insulated and sheathed, with Al conductors
>>Power cable 0,6/1 kV, PVC insulated and sheathed, with Al conductors and concentric protective corrugated Cu conductor
>>Medium voltage single core cable 6/10 kV, 12/20 kV, 18/30 kV, XLPE insulated, PVC sheathed, with screen of Cu conductors
>>Medium voltage single core cable 6/10 kV, 12/20 kV, 18/30 kV, XLPE insulated, PE sheathed, with screen of Cu conductors
>>Medium voltage single core cable 6/10 kV, 12/20 kV, 18/30 kV, XLPE insulated, PE sheathed, with screen of Cu conductors, longitudinally watertight
>>Medium voltage single core cable 6/10 kV, 12/20 kV, 18/30 kV, XLPE insulated, PVC sheathed, with Al conductors and screen of Cu conductors
>>Medium voltage single core cable 6/10 kV, 12/20 kV, 18/30 kV, XLPE insulated, PE sheath, with Al conductors and screen of Cu conductors
>>Medium voltage single core cable 6/10 kV, 12/20 kV, 18/30 kV, XLPE insulated, PE sheathed, with Al conductors and screen of Cu conductors, longitudinally watertight
>>Medium voltage multi core cable 6/10 kV, XLPE insulated, PVC sheathed, with screens of Cu conductors3.Self-supporting Cable Bundles ( Aerial Insulated Cables)>>Self-supporting cable bundle 0,6/1 kV with XLPE-insulation4.Halogen Free Cables And Wires>>Halogen-free fine wired conductor, with improved properties under fire
>>Single core flexible cable, suited for photovoltaic and solar systems, up to 1,8kV, special HEPR insulated
>>Halogen-free installation cable 300/500 V, with improved properties under fire
>>Halogen-free signal cable, with improved properties under fire
>>Halogen-free signal cable with concentric protective Cu conductor, with improved properties under fire
>>Halogen-free power and signal cable 0,6/1 kV , with improved properties under fire
>>Halogen-free power and signal cable 0,6/1 kV, with concentric protective Cu conductor, with improved properties under fire
>>Halogen-free power and signal cable 0,6/1 kV, with improved properties under fire, and 30-minute circuit integrity maintenance
>>Halogen-free power and signal cable 0,6/1 kV, with improved properties under fire, and 90-minute circuit integrity maintenance
>>Halogen-free power and signal cable 0,6/1 kV, with concentric protective Cu conductor, with improved properties under fire, and 30-minute circuit integrity maintenance
>>Halogen-free power and signal cable 0,6/1 kV, with concentric protective Cu conductor, with improved properties under fire, and 90-minute circuit integrity maintenance
>>Flexible halogen-free power cable 0,6/1 kV, with improved properties under fire, and 90-minute retained electric functionality 5.Control Cables>>Flexible control cable, PVC insulated and sheathed
>>Flexible control cable, PVC insulated, with Cu screen and PVC sheath
>>Flexible control cable, insulated and sheathed with oil resistant PVC
>>Flexible control cable PVC insulated, with inner sheath, Cu screen and external oil resistant PVC sheath
>>Flexible control cable PVC insulated, with inner sheath, Cu screen and external PVC sheath
>>Flexible control cable PVC insulated, with inner sheath, steel wire braid and external PVC sheath
>>Flexible control cable PVC insulated, with blue coloured PVC sheath, for Ex-zones
>>Flexible control cable PVC insulated, with Cu screen and blue coloured PVC sheath, for Ex-zones | | Cross Section(mm2) | Conductor Size(No. of Cores/Diameter) | Rated Voltage | Nominal Insulation Thickness(mm) | Reference Weight(kg/km) | Application |

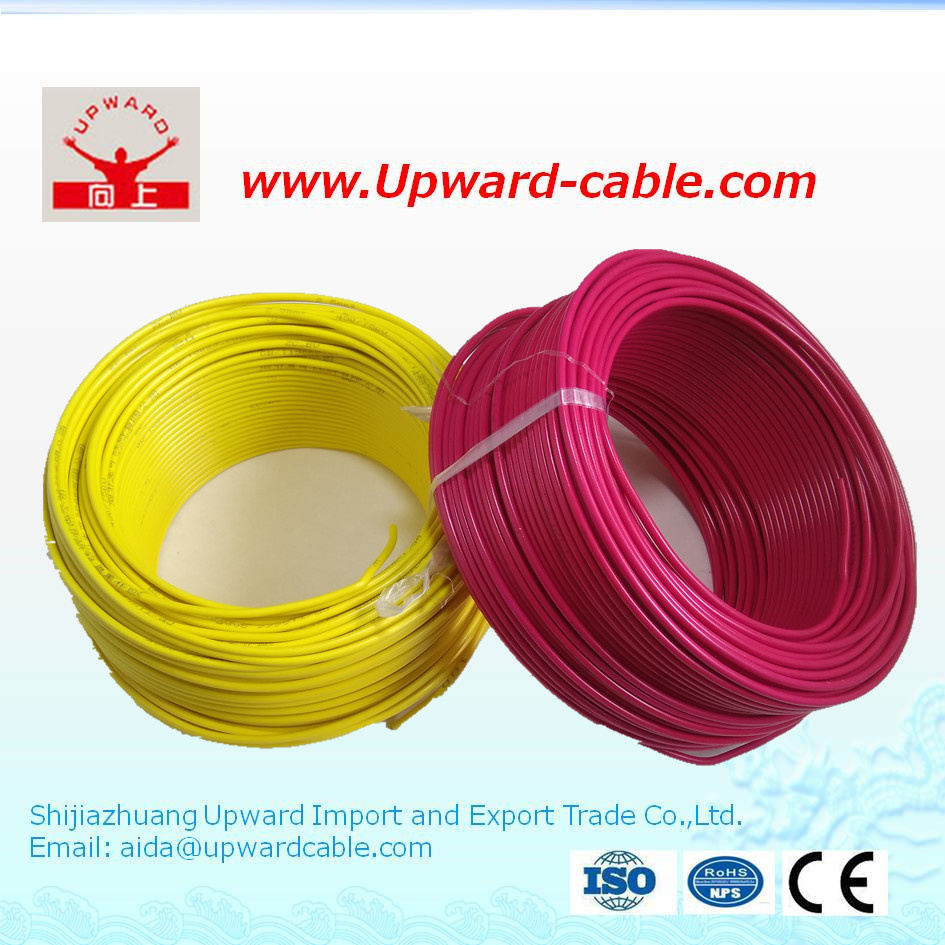

| Solid Type | 0.5 | 1/0.80 | 300/500V
450/750V | 0.6 | 8.0 | Solid, Hard,Suitable for fixed installation |
| 0.75 | 1/0.97 | 0.6 | 11.4 |
| 1 | 1/1.13 | 0.6 | 15.2 |
| 1.5 | 1/1.38 | 0.7 | 21 |
| 2.5 | 1/1.78 | 0.7 | 32 |
| 4 | 1/2.25 | 0.8 | 47 |
| 6 | 1/2.76 | 0.8 | 67 |
| Stranded Type | 1.5 | 7/0.52 | 0.7 | 22 | Stranded, Flexible house wiring, Suitable for indoor applicant. |
| 2.5 | 7/0.68 | 0.7 | 35 |
| 2.5 | 19/0.40 | 0.8 | 34 |
| 4 | 7/0.85 | 0.8 | 50 |
| 4 | 19/0.52 | 0.8 | 51 |
| 6 | 7/1.04 | 0.8 | 71 |
| 6 | 19/0.64 | 0.8 | 72 |
| 10 | 7/1.35 | 1.0 | 118 |
| 10 | 49/0.52 | 1.0 | 127 |
| 16 | 7/1.70 | 1.0 | 177 |
| 16 | 49/0.64 | 1.0 | 184 |
| Flexible Type | 1.5 | 30/0.25 | 0.7 | 22 | Ultra Flexible, Soft Conductor, Suitable for small power equipment instrume |
FAQ When can I get the price?We usually quote within 24 hours after we get your inquiry . If you are very urgent to get the price, please call us or tell us your email so that we will regard your inquiry priority.
How can I get a sample to check your quality?After price confirmation , you can require for samples to check our quality.
Sample is free ,but the freight charge should be paid.
How long can I expect to get the sample?After you pay the freight charge and send us confirmed files ,the samples will be ready for delivery in 3-7 days. You can use your own express account or prepay us if you do not have an account.
What about the lead time for mass production?Honestly ,it depends on the order quantity and the season you place the order .The best record we keep is delivering 10 kilograms cable within a week .Generally speaking ,we suggest that you start inquiry two months before the date you should like to pack products at your country.
What is your terms of delivery?We accept EXW , FOB , CFR , CIF , etc .You can choose the one which is the most convenient or cost effective for you.
Upward Cable specializes in design and manufacture of various kinds of wires and cables. The main products are low voltage cable, high voltage cable, power cable, aluminum alloy cable, fire flame retardant cable, fire resistant cable and high temperature cable.
The workshop area is 260000 sq. M. There are 430 staff members in the factory, including 20 experienced engineers, 38 lab assistants and 372 workers. The capital asset reached USD30, 000, 000. We have various advance product lines and equipment, including 125 sets for producing use and 35 sets for testing and measurement use. Our product can perfectly meet requests of different standards, for example GB, IEC, BS and ASTM. We could offer OEM and ODM service for the special cutomer. The annual product capacity of cables and wires is more than 20, 000, 000 kilometers.
As one of the leading manufacturers of cable industry in Hebei Province, we obtained certificate of ISO9001 in 2003. All cables of colliery have gotten the certificate of safety for colliery. Our fire retardant cables are approved with the certification of proof products, and most of them met the standards of China Compulsory Certification (CCC). Moreover, we have been already licensed to enter the "Supplier of the China Government Procurement" by the government.
For years, we are keeping providing products with high quality and good service. Our cables and wires are widely used in the construction of buildings airports, power transportation, urban and rural power network reformation and other main projects. Both of products and the factory are greatly commended by customers. Also, we really highly value the overseas market. Our factory has the qualification to export independently which is awarded by Chinese government. The main products of our company have been exported to Africa, Australia, America, Italy, Singapore and other Asian countries.
