(Infrared sensing probe) LHi878 Cheap Passive Infrared Detector

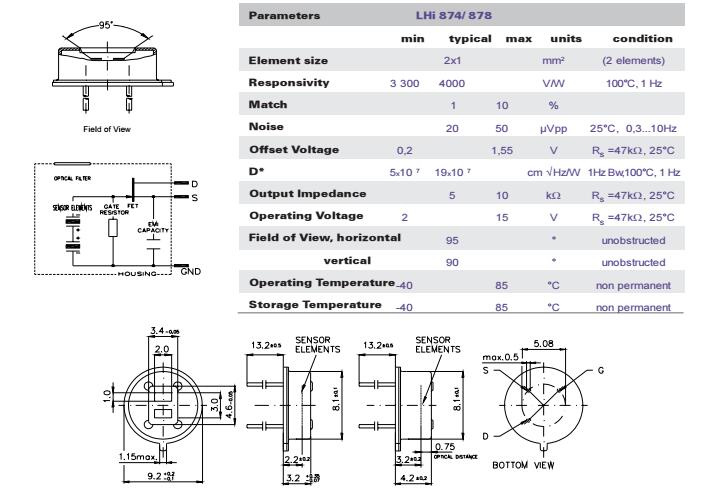

Pyroelectric detector LHI878 Dual element detector PIR SensorBrief Introduction:1. Element size: 2*1 mm2
2. Output Impedance: 5-10 kW
3. Operating Voltage: 2-15V
4. Operating Temperature: -40 85 °C
5. Storage Temperature: -40 85 °CPyroelectric detector LHI878 Dual element configuration including FET and optical windowSpecifactionTO-5 housing
Competitive cost version
Designed for motion control
Working Principle Pyroelectric infrared sensor would change charge when radiant energy changes. The effect can be used in detecting the change of infrared radiant.The sensors apply to human motion detector,passive infrared burglar alarm and automatic light switch. Based on the same theory, the pyroelectric infrared sensor applies to gas detection with infrared absorption.
Feature1. Low noise, high detection
2. Excellent common mode balance- dual elements
3. To-39, To-5 encapsulation
4. Apply to both narrow and broad band filters
5. Signal channel or double channels pattern
6. Dual pattern apply to burglar alarm
Typical Application 1. Passive infrared burglar alarm: strong anti-interference for strong with light and electromagnetic radiation
2. Human motion detector
3. Human motion detector of ceiling
4. Gas analysis
5. Non-contact infrared measurement

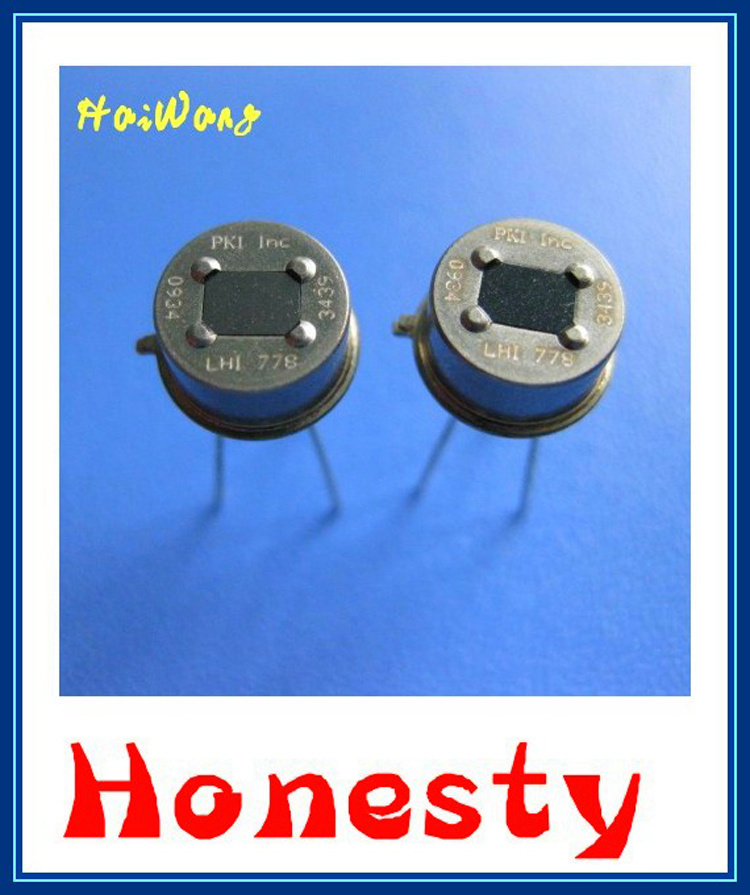

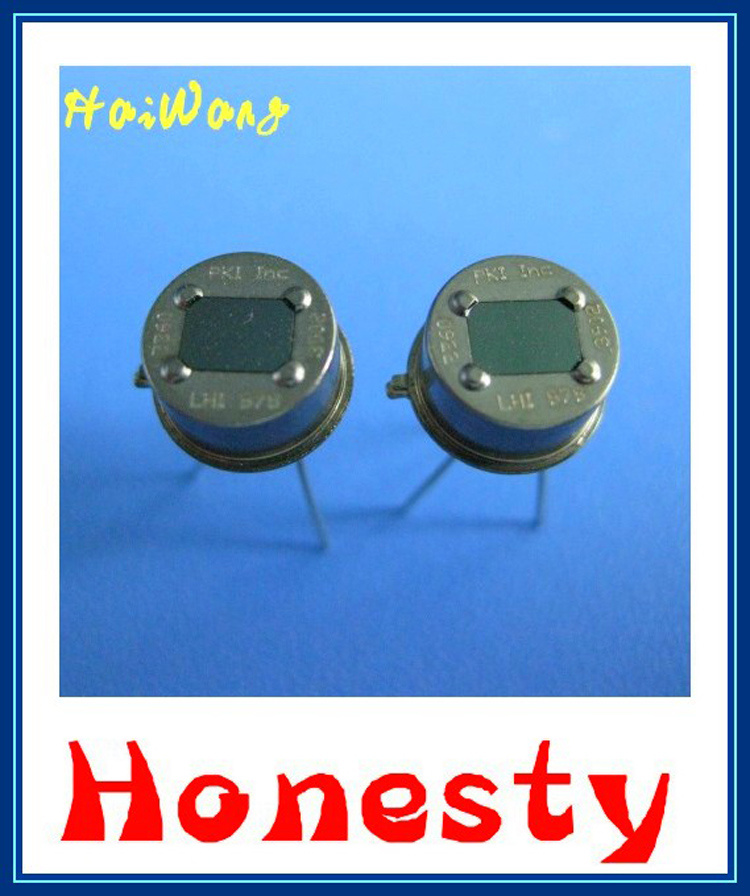

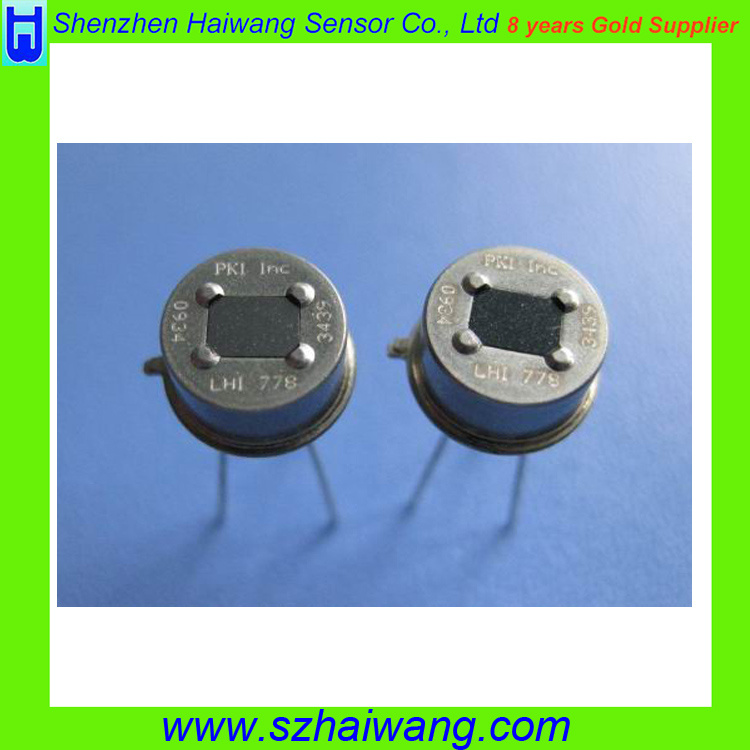

Picture Show

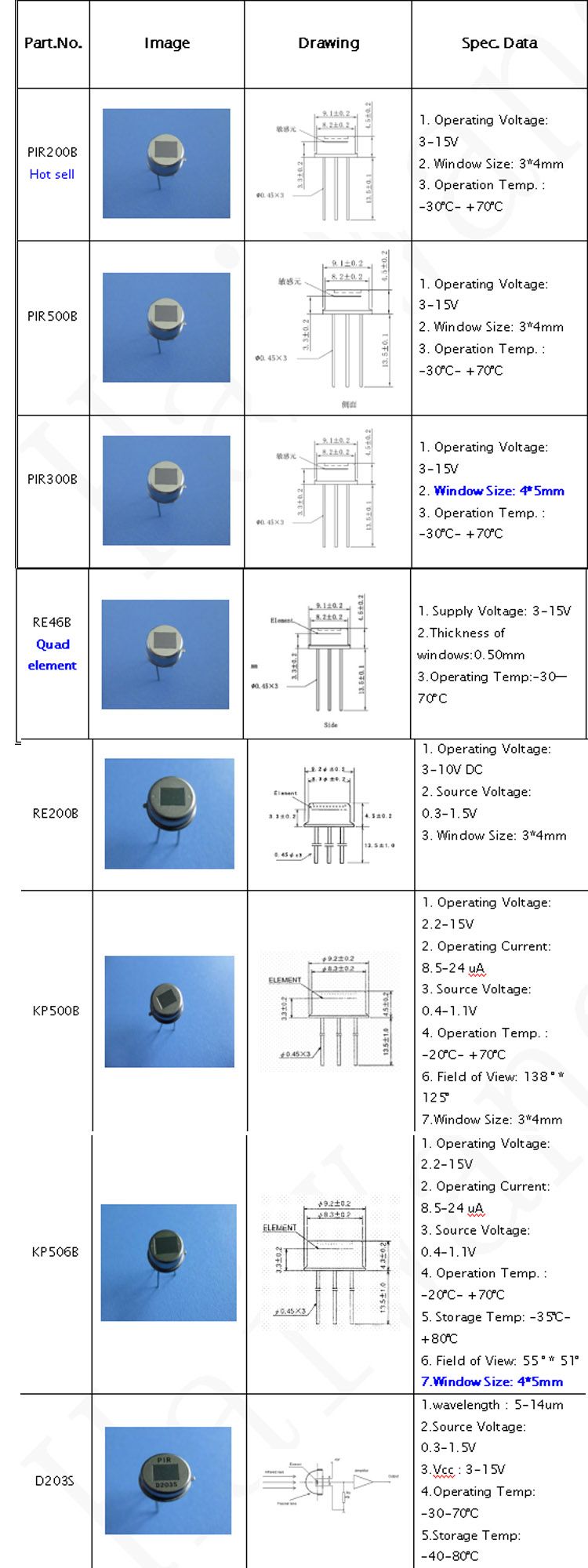

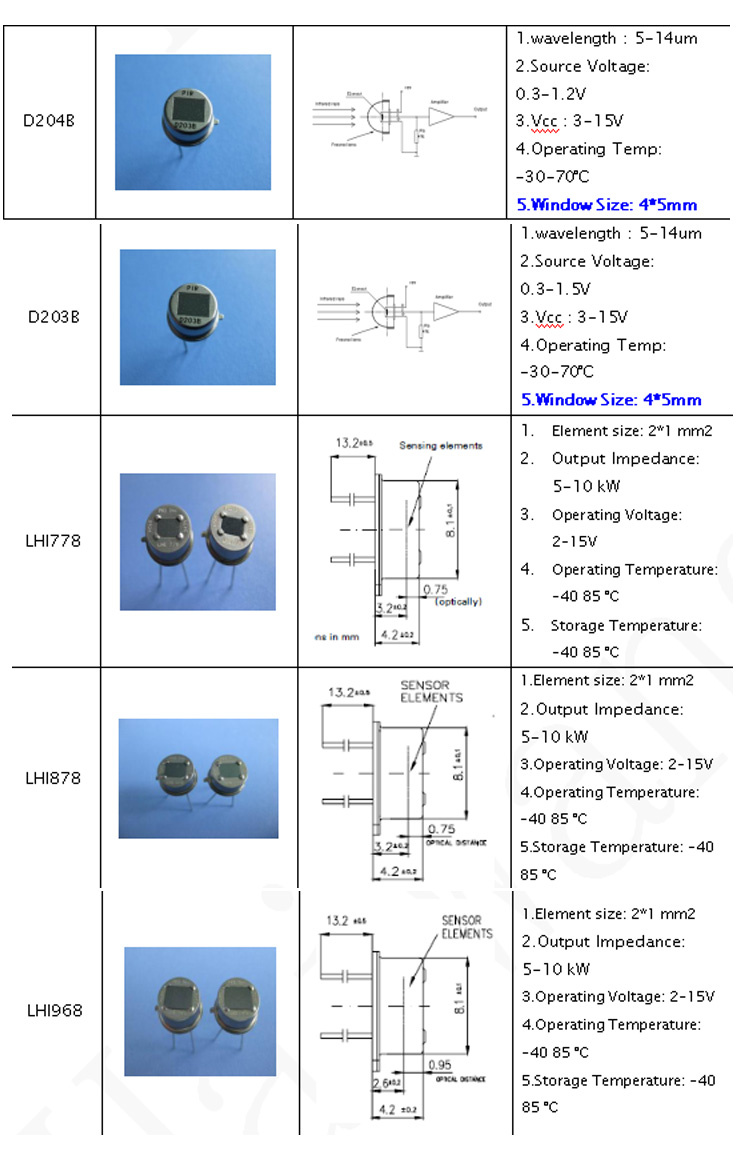

PIR Sensor Series for your choice:
