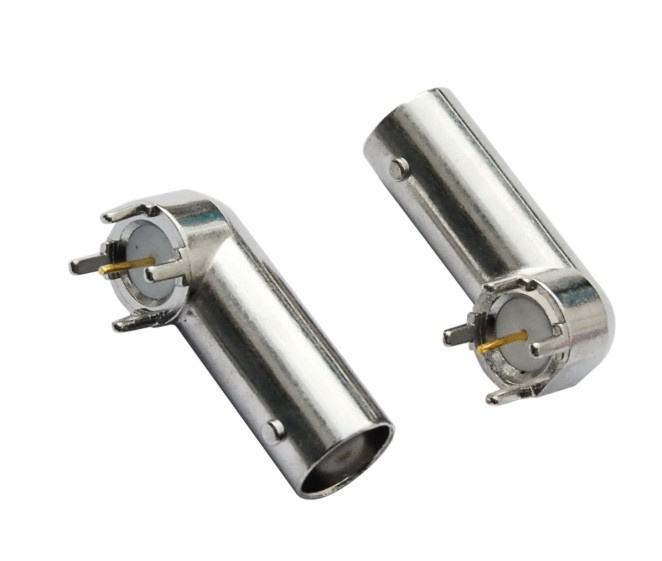

R/A PCB mount RF connector BNC jack connector
1. High quality products
2. RoHS compliant
3. Competitive price
Hot sell BNC connectors for electronic:
BNC series are one kind of cards of thing the mouth join the radio frequency coaxial connection device. It joins rapidly, keeps in touch with the characteristic such as being reliable, applies to the radio equipment and electron tube instrument field and joins the coaxial cable of the radio frequency extensively.
BNC Connector Application:
1. Antennas
2. Broadcast
3. Radios
4. Electronic test equipment
5. Serial digital and Analog interface
6, Non-professional radio antenna connections
MAJOR TECHNICAL CHARACTERISTICS
Temperature Range: -55 to +155° C(PE Cable-40 to 85° C)
Vibration: 100m/s (10-500Hz). 10g
Impedance: 50Ω -75Ω
Frequency: DC to 11GHz
Working Voltage: 1000V r. M. S at sea level
Withstanding Voltage: 2500V r. M. S at sea level
Contact Resistance
Center contact: ≤ 1.5m Ω
Outer contact: ≤ 1m Ω
Insertion Loss: ≤ 0.24dB(6GHz)
Insulation resistance: ≥ 5000M Ω
Center Conductor Retention Force: ≥ 0.56N
Voltage Standing Wave Ratio
Straight: ≤ 1.15/6GHz
Right angle: ≤ 1.25/6GHz
Durability(mating): ≥ 500cycles
MATERIAL AND PLATING
Body: Zinc alloy and Nickel plated
Pin contact: Brass or Gold plated
Socket contact: Beryllium or tin bronze or Nickel plated
Resilient Contact: Beryllium-copper or Nickel plated
Insulator: POM
Crimp Ferrule: Zinc alloy or Nickel or gold plated
O-ring Sealing: 6146 silicon rubber
APPLICABLE STANDARD
MIL=C-39012
CECC 22210
IEC 60169-16
