Feature Power distribution unit (PDU) is a device fitted with multiple outputs designed to distribute electric power.
especially to racks of computers and networking equipment located within the data center.
Data centers face challenges in power protection and management solutions.
Many rely on PDU monitoring to improve efficiency, uptime, and growth.
For Home/office's network and security needs, Expanded USB port creates its possibility to resident application.
Furthermore, Standalone USB port comes with convenient operation for a wide range of network and telecom equipments.

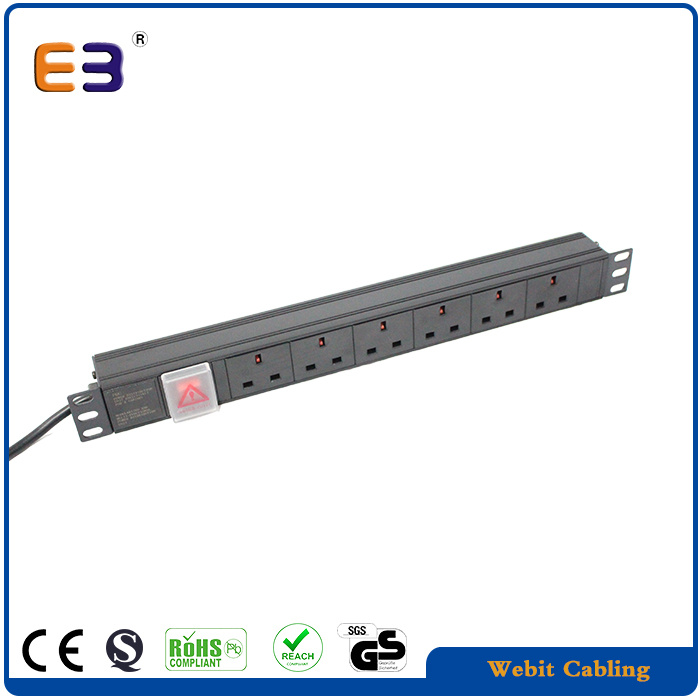

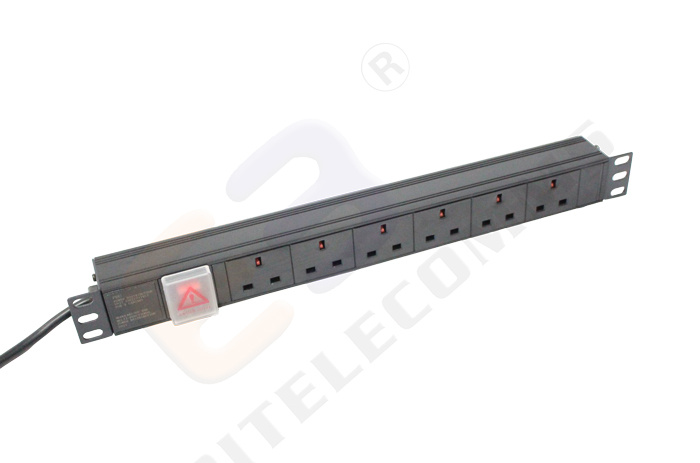

19" 1U standard PDU socket, with on/off switch
Aluminum-alloy shell,made from block burn PC
Color: Black defaulted ( Silver for optional)
Children safty protecting
Parameter
Rated current | 13A Max. |
Rated load | 2500W |
Rated voltage | 220~250V |
Household voltage | 230V |
Number of sockets | 3 to 48 ways |
Size | 19" 1U Horizontal |
Shell material | Uninflammable PC module, Aluminium alloy shell |
Type of cable | H05VV-F3G*1.5mm²*2M length |

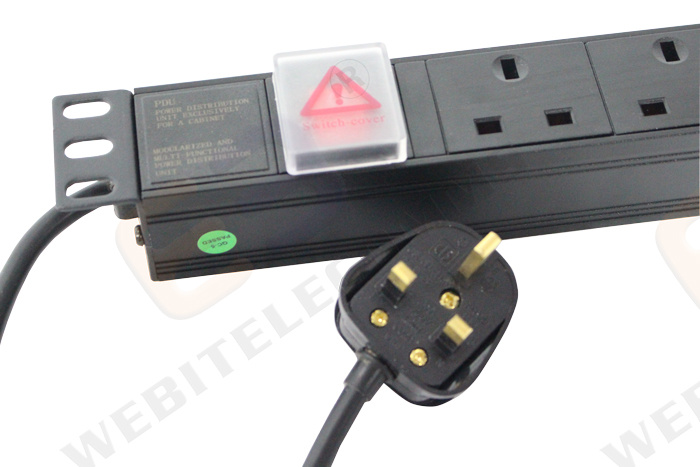

Type of plug | BS1363 plug |
IP rate | IP44 |
Provision for earthing | With earting contact |
Method of connecting the cable | Non-rewirable |
Type of connections | Welded-solder |
Degree of protection against electric shock | Normal protection |
Existence of shutters | With shutters |
Method of application-mounting | Portable type |
Packaging Details
Carton size | 54*40*30 cm |
Product box size | 52.5*7.5*5.5 cm |
Quantity in one carton | 25 pcs |
Metal enclosure |
Gross weight for one carton | 23kg |
Net Weight for one carton | 21kg |
Plastic enclosure |
Gross weight for one carton | 22kg |
Net Weight for one carton | 20kg |
Usual Webitelecomms PDU optional function
| Protection | On/off switch (defaulted) |
| 3-lights protection |
| 1-light indictor |
| Surge protection |
| Fuse |
| Current Meter |
| Circuit breaker |
| Locking |
| Overload protector |
| NEON Light |
| Cables | PVC (defaulted) |
| RUBBER |
| LSZH |
| Shell | Alu-alloy (defaulted) |
| Plastic |
| SPCC |

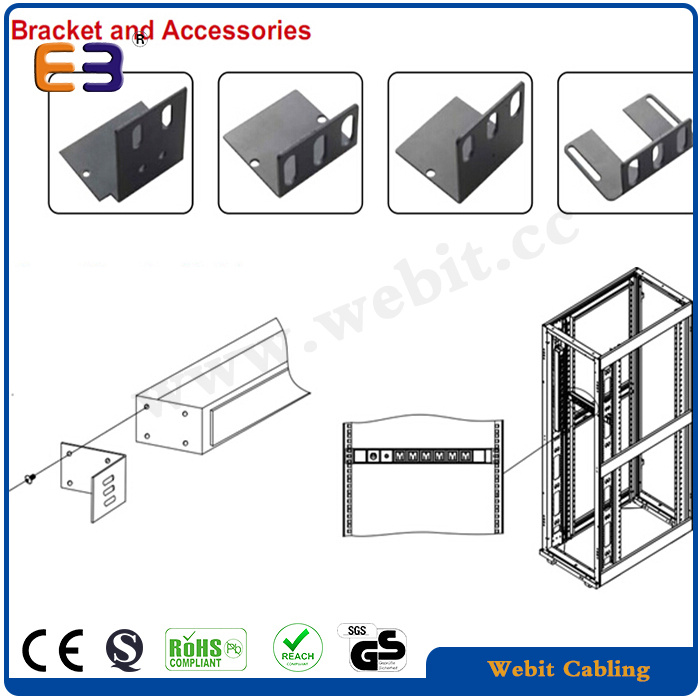

| Mounting | 1U ears (defaulted) |
| Revolving ears |
| Hook |
| Desktop |

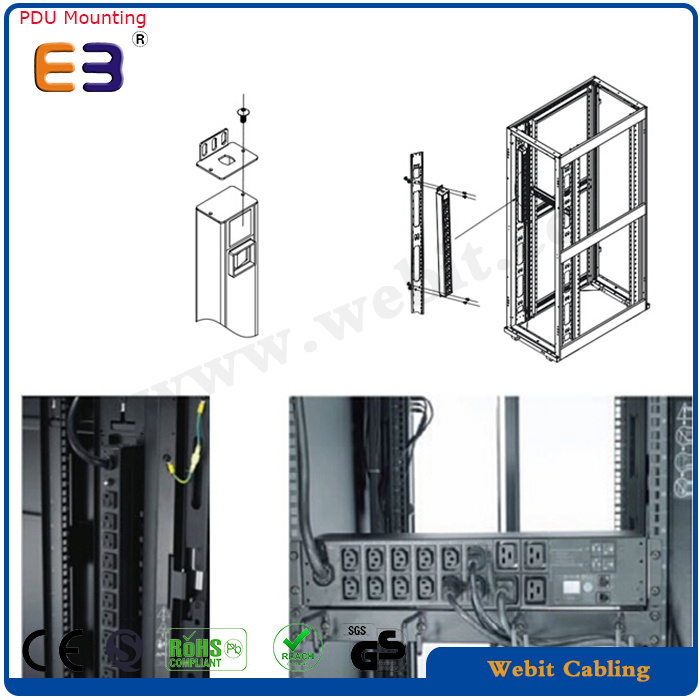

# Installation
Package details
Carton size | 52*30*48.5cm |
Product box size | 52.5*7.5*5.5 cm |
Quantity in one carton | 25 pcs |
Metal enclosure |
Gross weight for one carton | 23kg |
Net Weight for one carton | 21kg |
Plastic enclosure |
Gross weight for one carton | 22kg |
Net Weight for one carton | 20kg |
=Shipment & Delivery =
Webitelecomms take great commitments to photograph products indeed without any cheating and plagiarism.
FAQ
1) What is your Payment term?
---T/T, L/C, Western Union could be accepted.
2) What is your Trade term?
---EXW, FOB, CNF, CIF all are available
3) What is the Loading Port?
--- Ningbo or Shanghai port.
4) What is your MOQ?
---Webitelecomms fiber panel box MOQ is 50 pcs, different items will be different. We have indicated the MOQ for each item in the price list.
5) What is your Product Warranty?
---As Europe market, we have CE RoHS and other international safety standard for our products.
---As other market, international safety standard certificate is also be provided.
