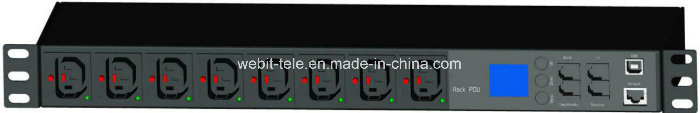

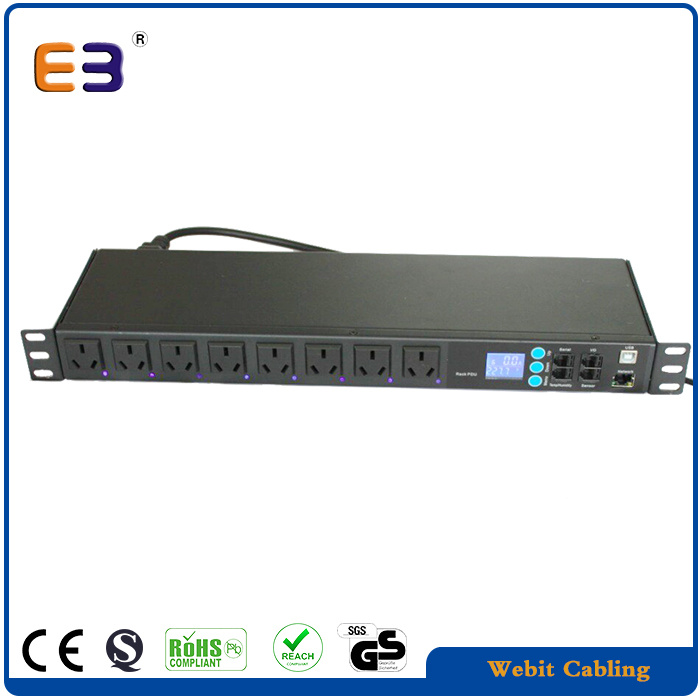

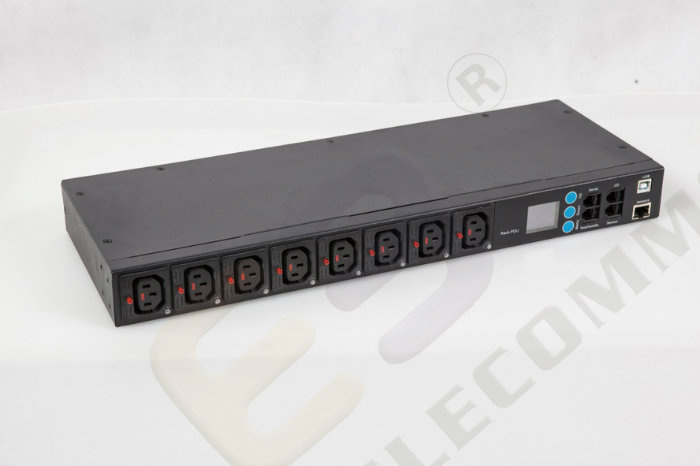

Intelligent Monitored smart PDU with remote control
Smart Power Distribution unit is the world-advanced new generation network power distribution and monitoring device.Through LAN or WAN, the manager can monitor,control and manage the power of many equipment in the cabinet of the data room located all over the world.
WebiTelecomms SPDU contains two series:WB-SPDU2000(standard size),WB-SPDU5000(non standard size): and each series include four levels:A,B,C and D which can meet the requirement of different environment and customers.
A type can implement total circuit and branch circuit monitoring and controlling;
B type only can implement the total circuit monitoring and controlling.
C type can monitor both of the total circuit and branch circuit;
D type can only monitor the total circuit.
WebiTelecomms SPDU are widely applied to 19" standard and non-standard server rack or network cabinet.
through internet Webitelecomms SPDU can remotely monitor,control and manage :
-Total load current(A) -Working voltage(V) -Total Power(KW) -electric energy(KWH) -Frequency -load current of each outlet(A) -On/off state of each outlet -Temperature/Humidity state -Smog state -Water-logging -Door state -Power on/off of the group. Power on/off of each outlet -Sequential power on/off of the each outlet -Timing power on/off of each outlet -Environment control | -The limiting range of tatal load current -The limiting range of work voltage -The limiting range of each outlet current -The limiting range of temperature -The limiting range of humidity -the total load current exceeds the limiting value -Temperature exceeds the limiting value -Humidity exceeds the limiting value -Smog -Water-logging -Door opening -The buzzer on SPDU control panel alarms -Automatically send email to system administrator -Automatically send message through SMS to system administrator User management -Set user's password and device IP address |
Communication Function
User can by means of the remote device via the WEB,SNMP to view,function configuration parameters and power control
Quickly and easily upgrade firmware via network download for future preduct enhancement liminates the need to replace products already installed in the field when new features are released
Data
Rated current | 10A Max output |
Rated load | 6250W Max. |
Rated voltage | 250V |
Household voltage | 230V |
Number of sockets | 8 ways |
Size | 19" 1U |
Shell material | Uninflammable PC module, Aluminium alloy shell |
Type of cable | 3G*4.0mm²*2m |
Type of plug | IEC60309 16A |
Degree of protection against electric shock | IP44 |
Provision for earthing | With earting contact |
Method of connecting the cable | Non-rewirable |
Type of connections | Welded-solder |
Degree of protection against electric shock | Normal protection |
Existence of shutters | With shutters |
Method of application-mounting | Portable type |
Products similar for reference
Shipment
SAMPLE: Shipped by International Express such as above
| Shipment | Note |
| Express | Door to door, very convenient, don't need to clearance or pick-up |
| By air | Airport to airport, you need to do the customs clearance and pick up the goods at your local airport |
| By sea | Port to port and you need to do the customs clearance and pick-up the goods at your local port |
Our Services
Sample Service: We will collect some sample fees, will refund after you place order.
Package design support: We have brand team for your customized design.
Company Information
WEBITELECOMMS was built in 2003 and was awarded the rights of import and export in 2010.
Products range: 19" racks and cabinets, outdoor cabinets, structured cabling, fiber optic , PDU, KVM and Fiber media converter
Audit Report: CE,ROHS,ISO,SGS.
Showroom: About 100 square meters showroom.
Welcome to WEBITELECOMMS, believe that our professional team and service will help you stay step ahead in the market.
