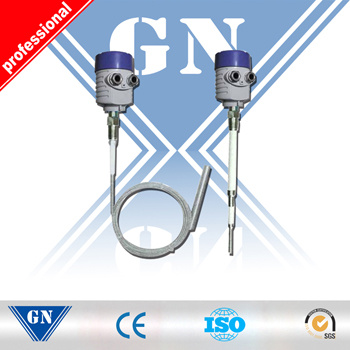

Radar Type Level Measurement (CX-RLM)

Name: Radar Type Level Measurement (CX-RLM)
Brand: all-electronics-online.com
SKU: 736213555
Availability: InStock
Rating: 4.9 (55 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Application for Radar level meter

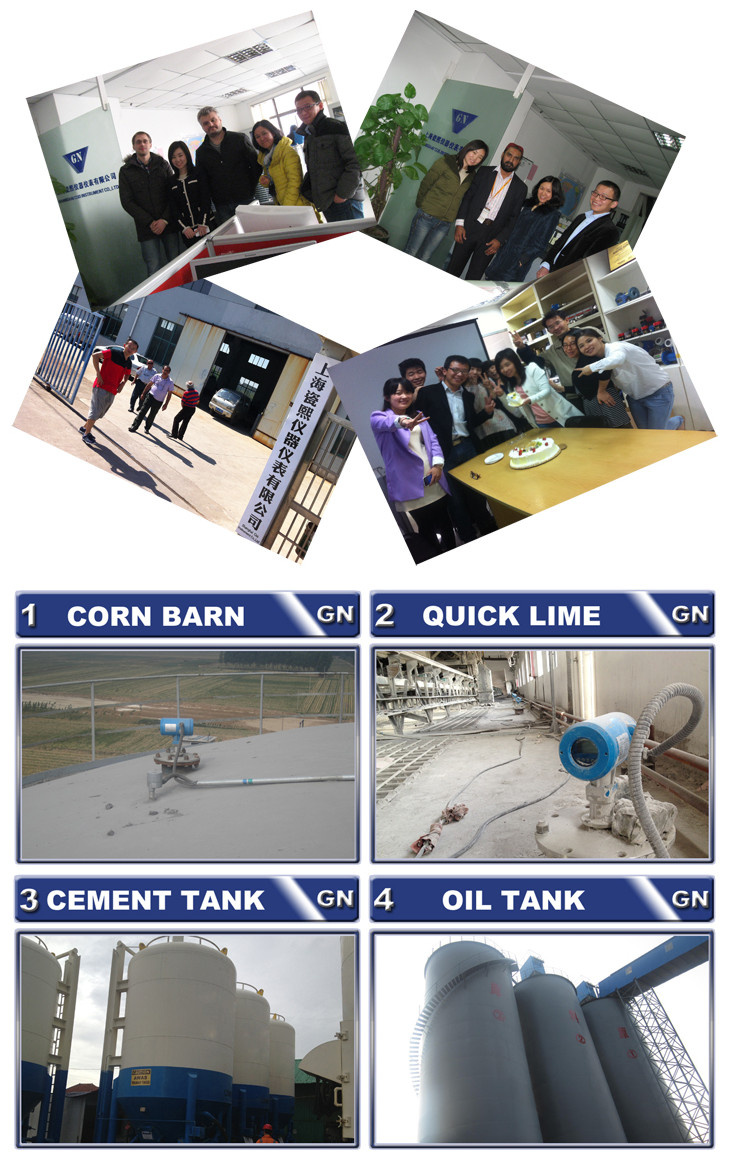

Suitable for all kinds of storing tanks or process measuring environment, liquids, slurries and solids.
For example: Water tank .Acid and alkali tanks ,Solid granules ,Small petrol tanks,Crude oil, light oil tank,
Coal and powder coal bunkers ,Volatile liquid tank,Charcoal level ,Slurry tank ,Solid granules

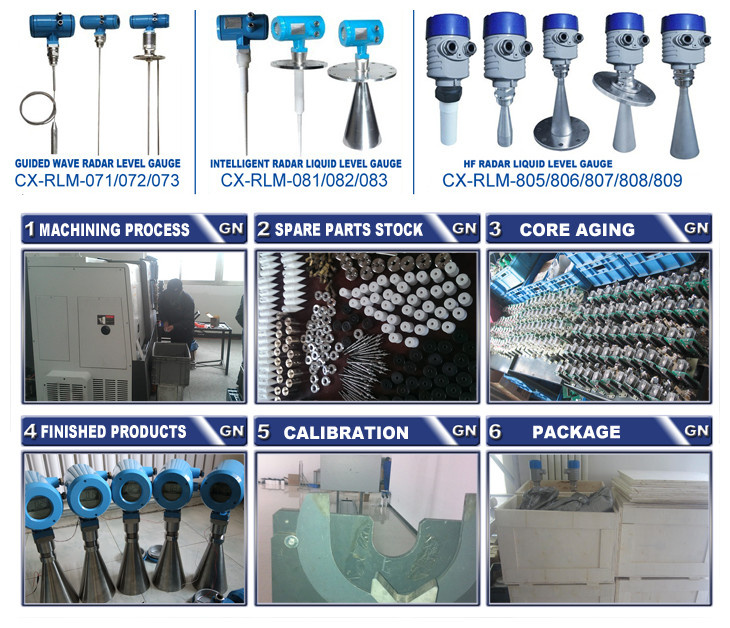

Models	CX-RLM-081	CX-RLM-082		CX-RLM-083
Measuring range	20 meters	20 meters		35 meters
Process connection	Screw	Flange		Flange
Process temperature	-40-130C	-40-150C		-40-250C
Process pressure	-1.0-3bar	-1.0-20bar		-1.0-40bar
Antenna material	PP/PTFE	PP/PTFE(rod)		316L stainless steel(horn)
Process connection	G1-1/2 316L stainless steel	flange 2'' 3'' 4'' 6''		flange 2'' 3'' 4'' 6'' 8'' 10''
Repeatability	± 3mm
Precision	< 0.1%
Frequency range	6.8GHz
Protection	EXiaIICT6/IP68
Signal output	4^20mA/HART(two phases)
Resolution	1mm
Response speed	>0.2s(depends on concrete application status)

Types	CX-RLM-071		CX-RLM-072		CX-RLM-073
Application	Liquid, solid granules		Liquid, solid granules		Liquid
Measuring range	30 meters		6 meters		6 meters
Process connection	Screw, flange		Screw, flange		Screw, flange
Frequency range	100MHZ-1.8GHZ
Signal output	4^20mA/HART
Repeatability	±3mm
Resolution	1mm
Sampling	wave echo sampling 55 times/s
Response speed	>0.2S(depends on concrete application status)
Precision	<0.1%
Connection	G1-1/2 ,Flange 2",3",4",6"
Pressure	-1-40bar
temperature	Environment :-40C~+80C ,Process temperature :-40C-250C
Shell safety grade	IP68/EXiaIICT6

Prod Model:	CX-RLM
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Warranty:	One Year
Certificate:	CE, SGS and ISO
Exported:	More 80 Countries
Pressure:	-1.0-40bar
Protection:	Exiaiict6/IP68
Temperature:	-40°c-250°c
Output:	4-20mA/Hart

Cixi flowmeter Co., Ltd. Was established in 2008 and since then has been dedicating itself to research and manufacture of various kinds of flowmeter. With sophisticated experience in technology and management, CIXI Flowmeter has made a name for itself as an excellent manufacturer of various kinds of flowmeter. In 2007, we have especially set up Shanghai Cixi Instrument Co. Ltd for handling the deals of Export.

Thanks to outstanding performance of products, CIXI Flowmeters are being applied in more and more fields where there' S liquid to measure. CIXI Flowmeters have found users in many countries besides China, such as Malaysia, India, Thailand, Vietnam, South Africa and so on. Increasing number of users are finding that CIXI Flowmeter are kind of product with super performance and reasonable price.
