Rated Output 25 to 400mA Hall Current Sensor

Prod Model:	GWHCS-20C4
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Mini Current Transformerretardant Rating:	94-V0
Mini CT Exterior Material:	PBT Resin UL Flame
Interior Insulation:	Epoxy Encapsulated
Isolation Current:	2500 Vrms for 1 Minute
Dielectric Resistance:	1000 M Ohms 500 VDC
Surge Withstand:	5000V
Operating Temperature:	25 to 55c, -40 to +85c Optional
Mini Current Transformer Frequency:	50 to 400 Hz
Accuracy Class:	0.2 0.1
Application:	PBT Resin UL Flame
Cooling Method:	Dry-type Transformer
Winding Type:	Multi-winding Transformer
Phase:	Current, Power and Energy Monitoring D
Coil:	PBT Resin UL Flame
Certification:	CE RoHS
Usage:	Voltage, Power and Energy Monitoring D
Frequency Characteristics:	50-400Hz
Shape Of Coil:	Laminated
Brand:	Grewin

Product Description

Close loop hall current sensors is a new generation of current sensor which applies hall effect principle, can measure direct current, alternating current, pulse and current of various irregular wave forms in electrical isolation conditions. Higher accuracy and linearity, short responding time and wide frequency band make it widely used in current monitoring devices, high current protection and other fields. The product has many other advantages: firm structure, low power consumption, small size, light weight, long lifetime, easy installation, vibration resistance, water vapor proof and dust proof, which assure convenient and reliable usage. And users can define the rated primary current and secondary rated output based on actual demand.



Rated output 25 to 400ma hall sensor for measurement

Description:
Current transformer mainly used in all kinds of electricity meter such as energy meter, water meter or electricity meter. We have current transformers both with and without DC immune. We can offer through-hole type, PCB type, Busbar type and flying wir type in mounting. Product with high accruacy up to 0.5, small phase error etc. We can also design and manufacture all kinds of current transformer according strictly to customer's special requirements.

Features
Measuring frequency 0-100KHz
Accuracy  0.2%-1%
Responding time: <1μs
Linearity: 0.1%
No measuring insertion loss
Measuring AC, DC and pulse current
High isolation between primary current and  secondary output signal
Manufactured by close-loop hall magnetic compensation principle
 Applications
High-power inverter
Medical electronics
Test and measurement equipment
Process control equipment
Sound equipment


Our main product are miniature voltage transformer ,miniature current transformer ,instrument current transformer , clamp on ccurrent transformer ,split core current transformer ,three phase current transformer ,zero-flux current transformer

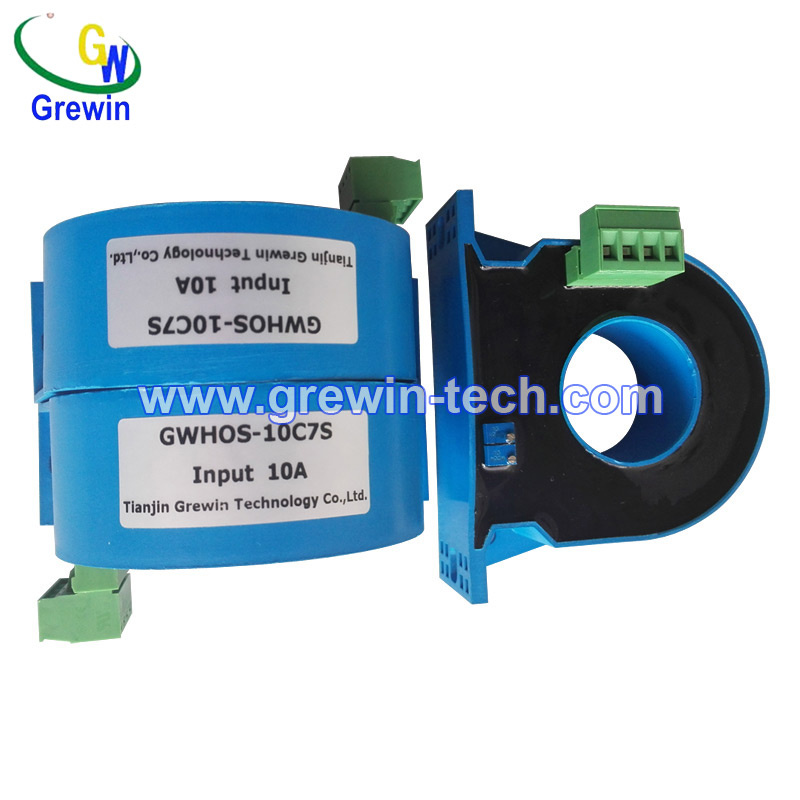

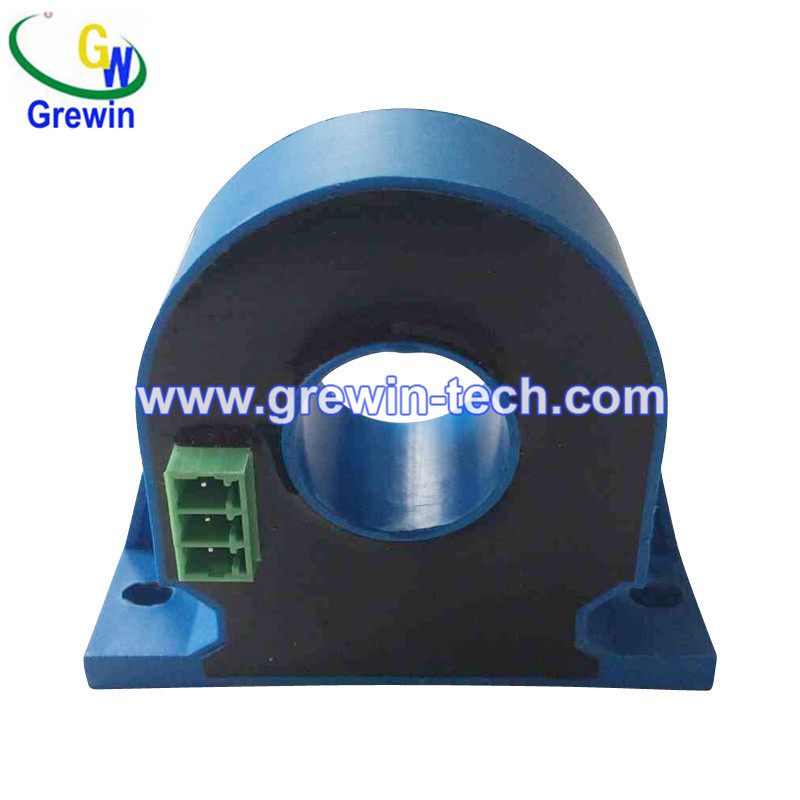

Pic of product


Typical Products


Single Turn Primary Mini Current Transformer(specifications)
Exterior Material	PBT Resin UL flame retardant rating 94-V0
Interior Insulation	Epoxy Encapsulated
Isolation Voltage	2500 Vrms for 1 minute
Dielectric Resistance	1000 M Ohms @ 500 Vdc
Surge Withstand	5000V(1.2/50μs standard  shock wave)optional
Rated Load Resistance	100K Ohms
Operating Temperature	-25 to +55ºC,-40 to +85ºCoptional
Frequency	50 to 400 Hz
Accuracy Class	defined in IEC 60044-1 Part 1 Voltage Transformers Class 0.1 0.2
Certification	RoHS Compliant CE Approved




Single Turn Primary Mini Current Transformer(features)

Low cost

More than 50 standard sizes

Non-symmetrical mounting pattern

Toroidal Silicon steel and Nickel Alloy available



Single Turn Primary Mini Current Transformer(applications)

For applications that require exceptional accuracy with minimal phase angle error

Applications would include Voltage,power and energy monitoring devices



Shipping:

1. Products are shipped via UPS / DHL / EMS / HK EMS /     FedEx / TNT and so on expresses (door to door).
2. We Provide Drop shipping Service.
3. 20 days around delivery upon receiving payment if the qty    is lower than 1000PCS and it is not customized products.
4. In order to ensure you receive your order tax free upon
     import, we declare lower value.
5. Shipping via EMS. UPS. FedEx and TNT express usually     takes 3~7days dependent on the destination country.

Payment:

1. We accept Western Union and T/T
2. 30% deposit and 70% before shipping
3. No payment collection. We only can deliver goods after
     geting full payment.

Warranty:

1. We provide 1 year warranty.
2. If the product is defective, please notify us within 3 days     of delivery.
3. All products must be returned on their original condition, in   order to qualify for a refund or exchange of goods

Our factory




Tianjin grewin technology co., ltd is a high-tech company which integrates production, design, R&D, and sale.We-CHIPSEN-specialize in developing many kinds of electronic components. Include electronic transformers,

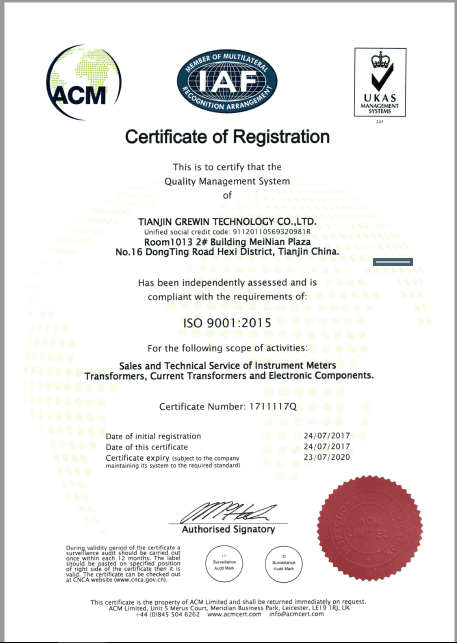

We are ISO 9001 and ISO 14001 certified and our products come with UL, SGS marks.
For more details, please contact us without hesitation.


WHY CHOOSE US?

Quality and honest first!
A.  Flexible service for diffierent transformers with high efficiency performance.
B.  Over 40 years experience of transformer designing and producing.
C. 100% test of every single product we produce from incoming material checking.
D.  UL, CE, ISO9001:2008
E.  We offer custom-made transformers, OEM and ODM are welcome
F.  We deliver the quality you expect at consistently competitive prices
 G. Transformer quality lifetime:10 Years.
 H. Specialty Sales service:5 -10 Years
