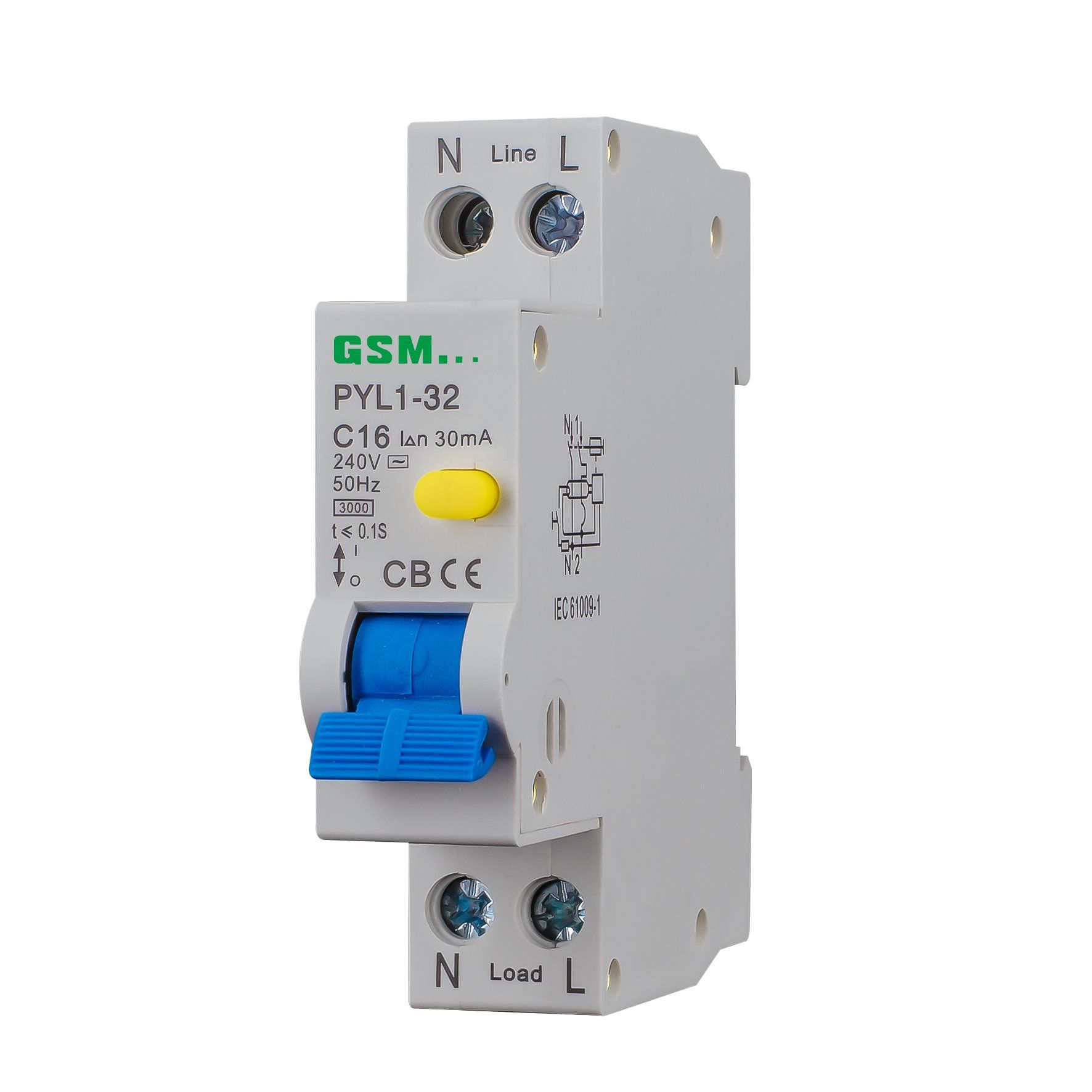

RCBO Miniature Circuit Breaker MCB Pyl1-32

Name: RCBO Miniature Circuit Breaker MCB Pyl1-32
Brand: all-electronics-online.com
SKU: 820913155
Availability: InStock
Rating: 4.4 (80 reviews)

Price:	Negotiable/Piece
Min Order:	500/Piece
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Product Description
Miniature Circuit Breaker
Application:
Miniature circuit breaker is applicable to the circuit of AC50Hz/60Hz, rated voltage 230V in 1P+N, rated current up to 32A.
Miniature circuit breaker is used in lighting distribution system or motor distribution system for protecting overload and short circuit.
Features:
1. Neoteric in structure, light in weight, reliable and excellent in performance.
2. High breaking capacity, can trip quickly
3. High fire-resistant and shockproof plastics of its case and items
4. Meet the international IEC60898 standard

Type	PYL1-32
Description	RCBO Miniature circuit breaker
Rated voltage	AC220/240;
Rated current	6,10,16,20,25,32A
Pole	1P+N
Ambient temperature	greater than minus 5 centigrade, less than 40 centigrade
Mounting class	IIIIIclass
Mounting environment	elevation: less than or equal to 2000m, no humid and corrosive gas
Type of instantaneous release	B(3-5In)
	C(5-10In)
	D(10-20In)
Overload protection	distribution, motor distribution protection
Rated circuit breaking capacity	3kA
Mounting manner	used for track of 35mm of IEC standard
Standard	IEC60898

Prod Model:	PYL1-32
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Vacuum
Installation:	Fixed
Structure:	MCB
Certification:	CE
Poles Number:	1p+N

Yueqing Geshiman Electric, which specializes in manufacturing series of circuit breakers, is a scientific enterprise integrating with scientific research, manufacture, processing and trading business.

The main products in our company are Miniature Circuit Breaker, Residual Current Circuit Breaker, Mould case circuit breakers Push botton switches, isolator etc...Our products apply into high end of market in the world. The qualification of products reaches a MID and high level in China markets, and the quality is accepted by high end of market.

Meanwhile, we have our own intellectual rights for breakers and leakage breakers and have advanced testing and assembly equipment and exquisite manufacture techniques.

We have more than 500 workers for production 8 engineers for quality control and technics. All of our product line are according the CE certficates and test reports.

For Business. We have experience to serve the famous brand in OEM. Our company is not very big but with the quality goods forever. We only make the quality parts. Welcome all of our customers or new friends feel free to visit our company.
