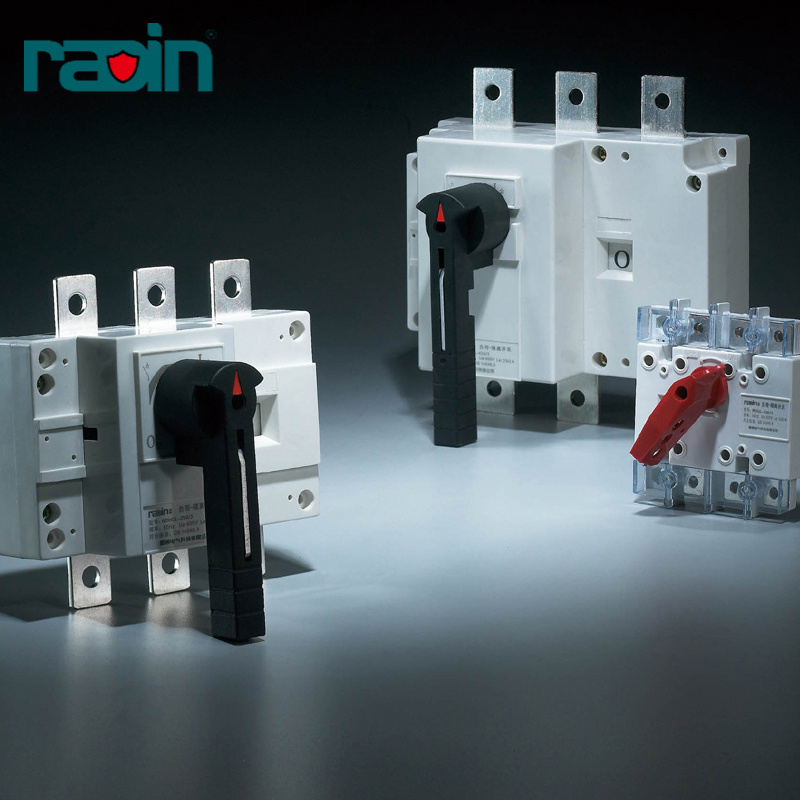

Rdgl Series Isolator Switch Load Breaker Switch Disconnector Switch
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T |
Product Description
RDGL series isolation switch adopts modular design structure and glass fiber reinforced unsaturated polyester resin casing. It is high dielectric property,protective value and safe operation.
The operation mechanism is a spring-accumulating and accelerating instant-release device,which makes instant making and breaking of the double gap contact.It is no relationship with the speed of operation handle.
The product have been obtained 3C certificate. Characteristics:
1.Spring-storage instantaneous release of the mechanism to speed up the realization of the rapid marking and breaking (13.8 m / s), and it is nothing to do with the operation handle speed, and have greatly improved the capability of extinguish electric arc.
2. The glass fiber reinforced unsaturated polyester resin casing have excellent flame resistance,dielectric,resist carbonic and resist impact performances.
3.Parallel double gap contact possesses self-cleaning functions.
4.All the contact materials are copper alloy plated with silver,and possess two separation contact surfaces.
5.Large clearance of insulation.
6.When it is "0" position,the product can lock the handle with three locks at the same time,and it can avoid error operation.
Application
RDGL series load isolation switch is applicable for AC 50Hz,rated voltage AC 660V and below, DC 440V and below,rated current up to 3150A.It can be applied for manually infrequent making and breaking.
Dlivery TermsShipment & Express & Air express
About the Company
We've got CE, TUV, KEMA, CCC certificate for ATS which also meets the ISO9001 standard and the factory has go through SGS test.FAQ:1. What's the warranty term?
24 Monthes.
2.How long does it take to deliver my goods?
Normally, samples can be delivered in 2 days. Customer designed sampleswill be delivered in 3-7 days.
3. Do you offer sample?
Yes, we offer sample order for customer to test the goods.
4. What kinds of payment terms do you accept?
We offer kinds of payment ways foe customer to chose from. T/T,L/C,Aliexpress,Western union etc.
5. What if there's quality peoblem?
We offer replacement for the goods as soon as there is a quality problem with the goods, and the fright is on our account to cut down the customer's loss to the lowest.We are sure any of your questions will get our prompt reply, just leave the message!
| Prod Model: |
RDGL |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Current: |
160A |
| Type: |
Low-voltage |
| Structure: |
Three-column Disconnector |
| Installation: |
Indoor High-voltage |
| Operation: |
Manual |
| Grounding: |
Un Grounded |
| Series: |
Three |
| Run: |
Turn the Horizontal |
| Switching Mode: |
Single Throw-in |
| Certification: |
CE |
| Common Model: |
Gl |
| Brand: |
Radin |
Radin electric is specialized in manufacturing a full range of low-voltage distribution products, which includes PATENTED dual power automatic transfer switches(ATS), PATENTED control and protective switching devices(CPS), load break switch(LBS), circuit breaker and etc. Together with it's sister company C-lin, we are able to provide a full catalog of electrical engineering products which meet the world market demands & standard.
Radin electric is a China and German joint venture for products manufacturing and service center. After its traditional surge protection device (RADIN) SAFE-PRO, according to the Chinese power electric situation and market demand, successfully launch RDQ series dual power automatic transfer switch and RDW series intelligent air circuit breaker and other suitable product to the market. RADIN have strict quality control system for each step of product design, manufacturing, storage, transportation and technical service, to ensure every product reach customer in perfect conditions. And meanwhile a professional, effective technical support & service team provide every customer a complete pre-sale to after sale service.
In China, RADIN products provide the most powerful secure to the safety of power transmission and distribution system, end-user and professional equipment etc. We continuously build different level working agent and service station, in order to provide more well service in place to all customers. Meanwhile, we will keep hard working, to use our advanced technology to provide customers with a more perfect, more professional surge protection device and electric products for power transmission and distribution system.
