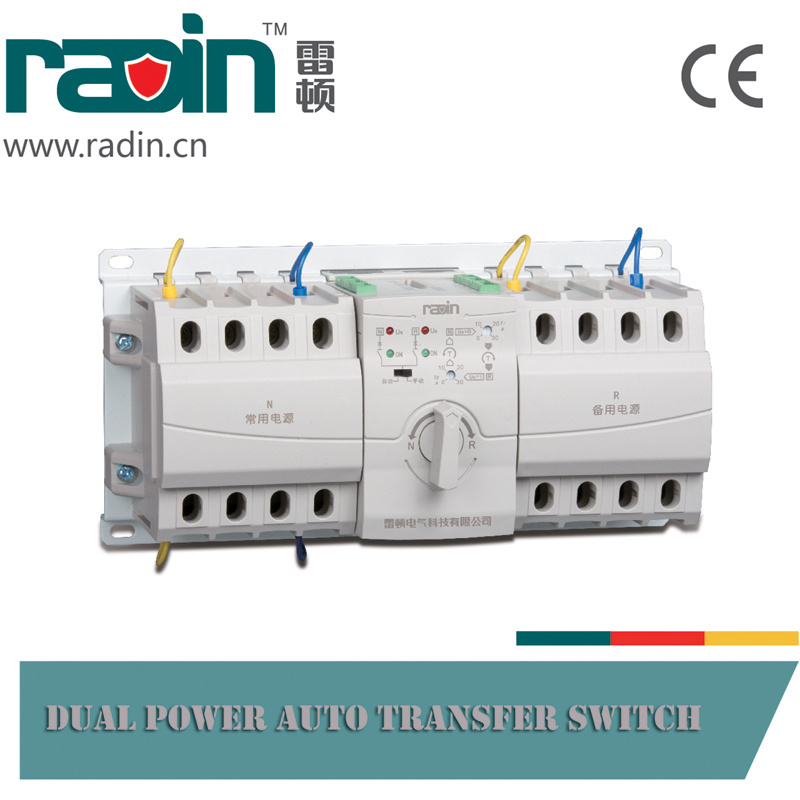

Rdq3nx Series Dual Power Automatic Transfer Switch (ATS)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T |
Radin Electric provides ATS design, engineering, and full after sales support for a wide range of automatic transfer switch applications. We offer onsite electrical audits to assist in determining the correct product and installation to meet your exact needs and requirements.
Technical Specification | Model | RDQ3NX-A/B/C/D |
| Working Voltage | AC150-265V 50/60Hz |
| Operation Mode | Auto and Manual |
| Transfer Mode | Auto Transfer with Auto Recovery |
| Transfer time delay | 0.2s Fixed / 0~30s adjustable |
| Rated Current | 6A to 63A 3P and 4P
|

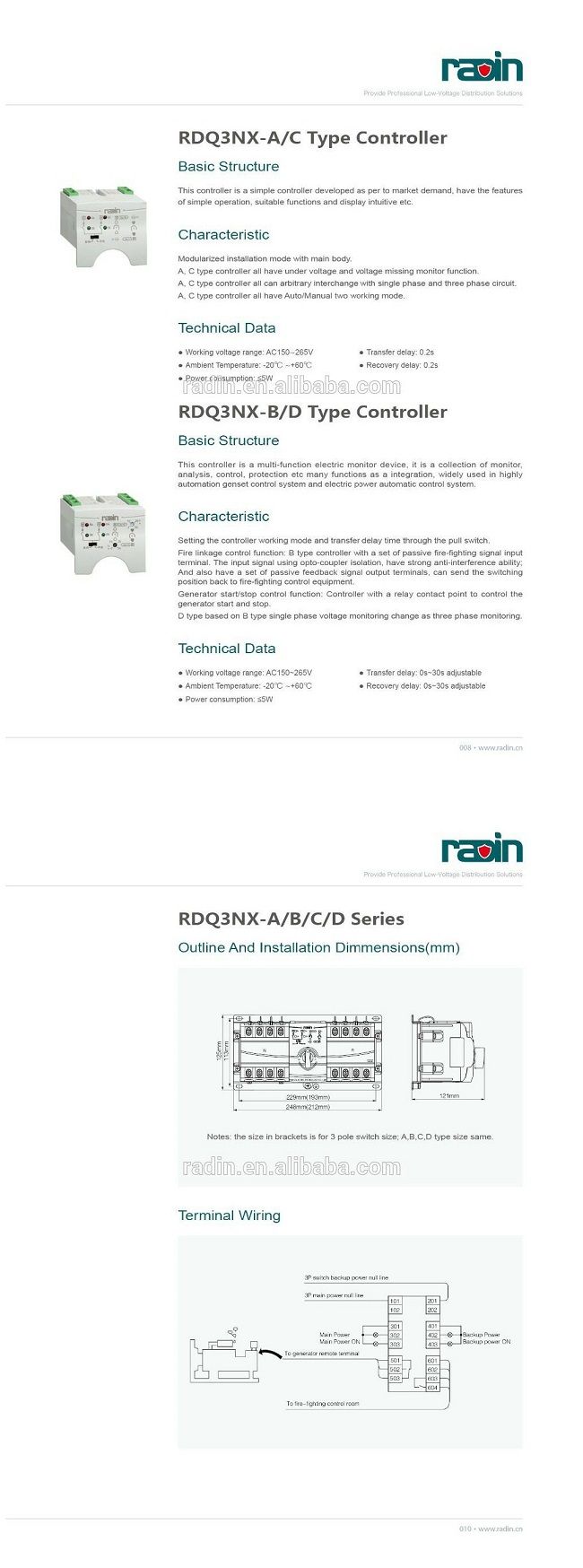

About ATSRDQ3NX-A/B/C/D series ATS is our company introduced to the market on 2009, effectively solved the problems of MCB type ATS 's insufficient functions, poor reliability, un-convenient replacement etc., this product have three patent certificates ( Invention patent, Utility models patent, Appearance patent), C/D series is a new type introduced to market on 2010, this product have complete functions, concept innovation, is a unique product among the similar products.Product StructureRDQ3-63-A/B/C/D series ATS comprised with two MCB and accessories, mechanical interlock system, intelligent controller etc. Product have A, B,C,D four type control construction, A type is basic type ( Only provide with auto change auto recovery, phase missing protect, auto/manual control), B type is intelligent type( including the A type functions and have Generator start, fire linkage, time delay functions), C and D type is improved type, increased three phase voltage monitoring function on A and B type. This ATS series circuit breaker keeps the original breaker's overload and short circuit protection function. RDQ3NX Series Advantages:1. Product with modularized design, executive unit, transmission mechanism, control circuit completely independent, easy for replacement.
2. Mechanical transmission device adopt gear transmission, completely eliminate the possibility of closing at same time;
3. Compact appearance, it is one of the smallest product on the market;
4. The control circuit layout adopt working power and sampling power separate with single chip control, to overcome the electromagnetic interference from the hardware construction;
5. Working power voltage range: AC200-400V;
6. Less power consumption, max. peak power loss 4.8W, only 20% of other similar products;
7. Product have complete functions, with generator start, fire linkage, ON delay functions etc.;
8. Modularized design, good components interchange performance, easy installation;
9. Can use various executive circuit breaker; Working ConditionsAmbient Temperature
Max. +60ºC
Min. -20ºC
24h average not more than +35ºC
Altitude : Not more than 2000m
Atmospheric conditions: humidity not more than 50% at max.+40ºC, higher humidity is allowed at lower temperature, at most wet month, the average max humidity is 90% at the average min temperature +25ºC, and have considered the condensation on the product surface due to temperature variation. Dlivery TermsShipment & Express & Air express

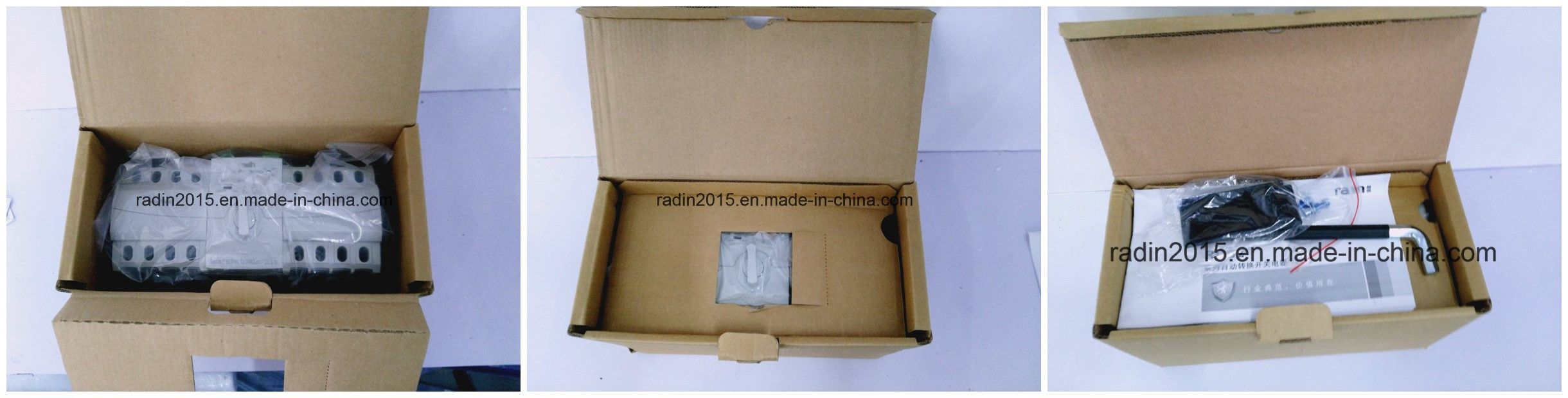

Packing
About the Company
We've got CE, TUV, KEMA, CCC certificate for ATS which also meets the ISO9001 standard and the factory has go through SGS test.FAQ:1. What's the warranty term?
24 Monthes.
2.How long does it take to deliver my goods?
Normally, samples can be delivered in 2 days. Customer designed sampleswill be delivered in 3-7 days.
3. Do you offer sample?
Yes, we offer sample order for customer to test the goods.
4. What kinds of payment terms do you accept?
We offer kinds of payment ways foe customer to chose from. T/T,L/C,Aliexpress,Western union etc.
5. What if there's quality peoblem?
We offer replacement for the goods as soon as there is a quality problem with the goods, and the fright is on our account to cut down the customer's loss to the lowest.We are sure any of your questions will get our prompt reply, just leave the message!
| Prod Model: |
RDQ3NX-A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Current: |
63A |
| Rated Voltage: |
AC150-265V |
| Frequency: |
50/60Hz |
Radin electric is specialized in manufacturing a full range of low-voltage distribution products, which includes PATENTED dual power automatic transfer switches(ATS), PATENTED control and protective switching devices(CPS), load break switch(LBS), circuit breaker and etc. Together with it's sister company C-lin, we are able to provide a full catalog of electrical engineering products which meet the world market demands & standard.
Radin electric is a China and German joint venture for products manufacturing and service center. After its traditional surge protection device (RADIN) SAFE-PRO, according to the Chinese power electric situation and market demand, successfully launch RDQ series dual power automatic transfer switch and RDW series intelligent air circuit breaker and other suitable product to the market. RADIN have strict quality control system for each step of product design, manufacturing, storage, transportation and technical service, to ensure every product reach customer in perfect conditions. And meanwhile a professional, effective technical support & service team provide every customer a complete pre-sale to after sale service.
In China, RADIN products provide the most powerful secure to the safety of power transmission and distribution system, end-user and professional equipment etc. We continuously build different level working agent and service station, in order to provide more well service in place to all customers. Meanwhile, we will keep hard working, to use our advanced technology to provide customers with a more perfect, more professional surge protection device and electric products for power transmission and distribution system.
