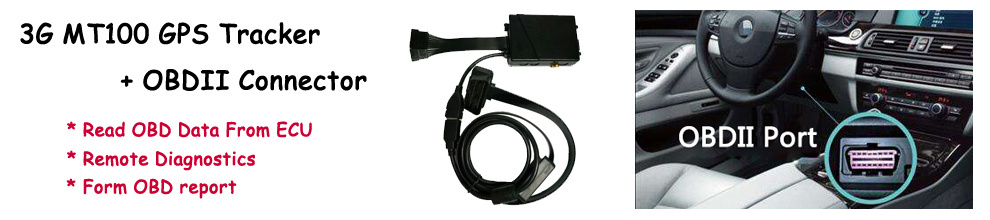

Read data from ECU via OBD2 connector 3G GPS Tracker MT100
(* Free GPS tracking platform lifetime * 2 years warranty * 1 day delivery * High Quality * Factory price )
1.Product Overview

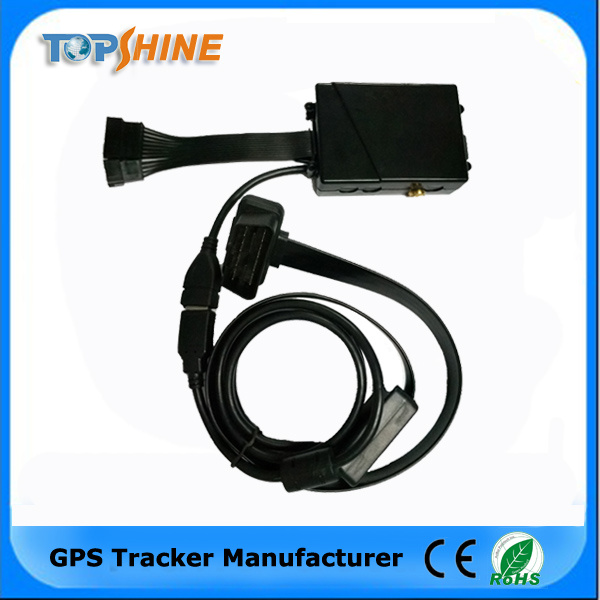

MT100 is a kind of mini GPS vehicle tracking product can be used for tracking and security of motorcycle and automobile etc. Mini size, builtin antenna and waterproof designed, easy to be installed and concealed, therefore can satisfy tracking and security demands for all kinds of vehicles.
2. Applications
Vehicle Real Time Tracking
Vehicle Security/Anti-Hijack
Fleet Management
3. Features & Functions
* Tracking by SMS/GPRS (TCP/UDP)
* Tracking by time/distance interval
* OTA Function
* Real time tracking via the web-platform
* Get position location via call/SMS
* Engine on/off detection
* Built-in backup 650 mAh battery
* Remote Engine cut off to stop the car in safe condition
* ARM9 high speed microcontroller
* Get location physical name via SMS & from the web-platform
* Google Map link for location via SMS, it shows your location on map via mobile phone.
* Mileage calculation with longitude and latitude via SMS; view mileage data via GPS web-based tracking centre system
* Built-in motion sensor for power & GPRS flow saving mode (sleep mode)
* Built-in 4MB memory & position logging capacity up to 26,000+ waypoints even no GPRS signal
* I/O: 2 Inputs, 3 Outputs, 1 Analog Input, 1 RS232 port.
* Over speed alert
* Geo-fence alert
* Power failure/low power alert
* SOS Panic button, SOS alert (optional)
* Harsh braking and harsh acceleration alarm
* Suddenly acceleration/brake alert
* Oil leaking/Refuel Alarm (need fuel sensor support) (optional)
* Accident alarm (need crash sensor support) (optional)
* RS232 Port Can equip with RFID kit for driver identification and auto Arm/Disarm functions (movement/towed alert, ignition alert, auto cut off engine etc) (need RFID support) (optional)
* Analog input for Temperature & Fuel sensor detecting/monitoring (optional)
4.Specifications
| Items | Specifications |
| Dimension | 80*58*22mm |
| Weight | 92g |
| Input voltage | DC 9V~36V/1.5A |
| Back-up Battery | 650mAh/3.7V |
| Power Consumption | 65mA standby current |
| Operating Temperature | -20°C~75°C |
| Humidity | 5%~95% |
| Work Time | 33 hours in power-saving mode and 8 hours in normal mode |
| LED | 2 LED lights to show GPS, GSM status |
| Button | 1 SOS and 1 power on/off |
| Microphone | Default |
| Memory | 4M Byte |
| Sensor | Motion sensor |
| GSM Frequency | GSM 850/900/1800/1900MHz |
| GPS Chip | Latest GPS SIRF-Star III Chipset |
| GPS Sensitivity | -159dB |
| Positioning Accuracy | 10meters, 2D RMS |
| I/O | 2 Input 3 Output
1 Analog Input 1 RS232 Port 1 USB Port |
5. Product Accessories:
MT100 unit -- 1 unit
8P wire -- 1 piece
Relay - 1 piece
SOS button - 1 piece
6. Optional Accessoires:
Fuel Sensor
Smart Phone Reader
Crash Sensor
Temperature Sensor
Active RFID Kit
Passive RFID Kit
USB configure Cable 7. Web-based GPS Tracking Platform GPRS01

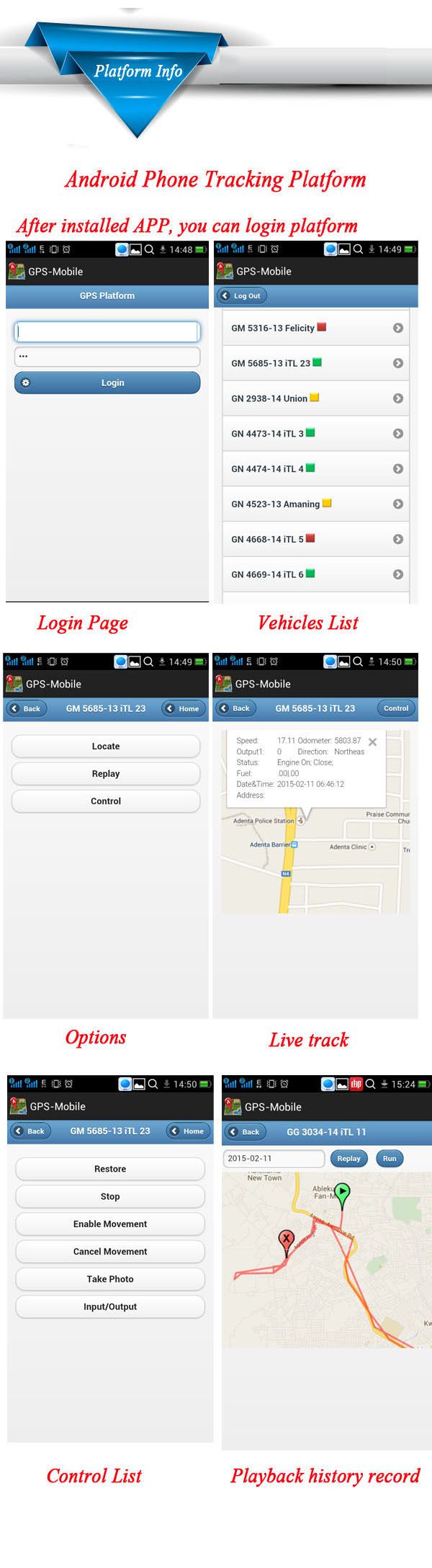

8. Android APP GPS tracking platform
9. Certificate
10 Our Company
11. We also supply you Free web base and Android APP GPS tracking platform lifelong,no charger.
But other company will charge you tracking platform months /year fee or exist other hidden cost.
Welcome login our multifunction platform demo to experience the function.
Web base : www.track-car.com
Mobile Phone: http://www.track-car.com/M
User name: test1
Password: 123
( This is demo account.May have some limitation.after you purchase GPS tracking devices from us ,we will help you create a main account of GPS tracking platform ,you can management your account ,can set unlimited sub account for your clients )
12. Our company advantage :
* Provide 2 free Tracking Platfrom (PC base & Android APP) lifelong. No charge.
* 2 years warranty
* All of our products have CE & RoHS & SGS certification
* Supply OEM&ODM service.
* Our engineer team could customize your personality tracking platform
* Professioal R&D team provide Customization and after-sale service lifelong .
* 100% made of industrial-grade component,GSM module have certified(CE2200)and with legal IMEI code.
13. Payment & Shipment:
Payment Term: PayPal /western union /TT
Shipping Term: DHL /Fedex /TNT /ARAMEX/EMX
Lead time: Samples within 1 days of delivery.bulk production within 5-7days of delivery.
Inquiry Now!!
Guangzhou Topshine Electronic Technology Co., Ltd. is a China leader manufacturer of superior Global Positioning System (GPS) tracking solutions and innovative integrated wireless communication equipments.
Since 1999, Topshine designs, develops, and manufactures high quality GPS tracking products, including location based and personal tracking systems for the vehicle, insurance, logistics and marine markets etc.
With experienced R&D team, excellent sales team and user-friendly software platform, we can promptly provide customized products, solutions and technical support and services, which helps us build a high reputation in the industry and among our customers all over the world. 90% of our products are for export. Our duty is to deliver the right product at the best price to meet your requirements. We try to exceed the expectations of every client by offering outstanding products backed up with effective and professional customer services and support.
TOPSHINE provides a proprietary system to help clients manage their fleet and asset.
Our proprietary software, Platform GPRS01, allows our clients who rely on a fleet of
Vehicles to transport their goods or clients with valuable moveable assets, to monitor
Their assets thus minimizing the risks associated with their investments, increasing
Efficiency and productivity, and minimizing logistics and manpower costs. Real-time
Information can help with effective decision making, thus improving your company's
Performance and reducing overall costs.
We currently serve over 100 major customers and our clients come from various
Industries with unique demands or operational requirements. We can customise our
System to cater to our client's needs. In our ever-growing network of connected
Devices, our fleet can be monitored from anywhere with our mobile applications. Our
Services cover Hong Kong, China and cross border fleets.
Professional Consulting Services
With years of service experience, we have built up a good reputation and a strong
Professional team to provide strategic solutions and technical advice in fleet
Management. We work closely with all our clients to define their problems and
Expectations and tailor the best solution to solve their fleet management problems.
Our role is more than a technology provider who is assisting you to drive your
Business to be more profitable and competitive.
Customer Integration Services
Our team will support you as you work to integrate the GPRS01 system into your
Operations. We provide complete servicing from the installation to the maintenance of
Each tracking unit. A member of our customer support team will help coordinate the
Times and location for unit installation and demo/training times at your convenience,
While you, our client, can concentrate on managing your business.
On-Site Training Services
Once we have installed our units in your fleets, a training session will be arranged to
Familiarize all necessary parties with the software. We also provide a customer service
Help desk to assist you should you have any further questions. Our strong customer
Service team will ensure you understand the system and can put it to good use.
Customer Care Services
Customer satisfaction is a critical element for us. We care about our clients' needs,
Ideas and opinions. We make sure our products and services satisfy or exceed our
Client's expectations.
