Real-Time GPS/GSM/GPRS Tracking Car GPS Tracker
Price: |
US $ 21.3-26/Piece |
Min Order: |
100/Piece |
Pay Type: |
L/C,T/T,Western Union,Paypal |
Prod Model: |
KG-006 |
Battery: |
400mAh |
Whole Machine Size: |
6cm*4.5cm*0.7cm |
Type: |
GPS Tracker |
Use: |
Automotive |
Operating Principle: |
Mixed Type |
Port Number: |
Multiplex Multi-purpose Channel |
Model: |
Total Station Type |
Carrier Frequency: |
Dual-Frequency |
Certification: |
ISO14001 |
Screen Size: |
No |
Chip: |
Mtk |
Brand: |
Koshiro |
Product Description

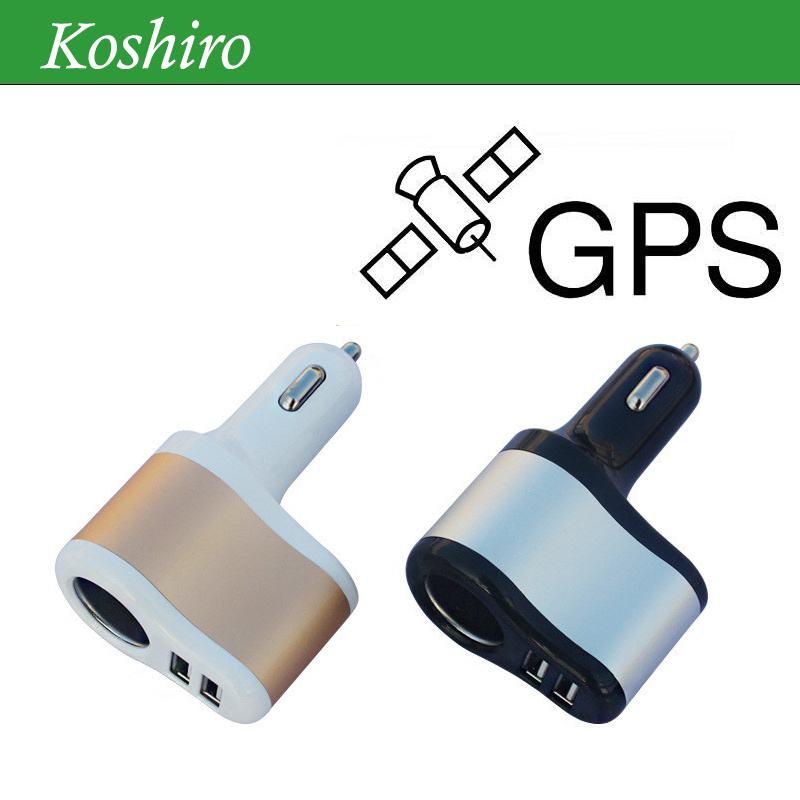

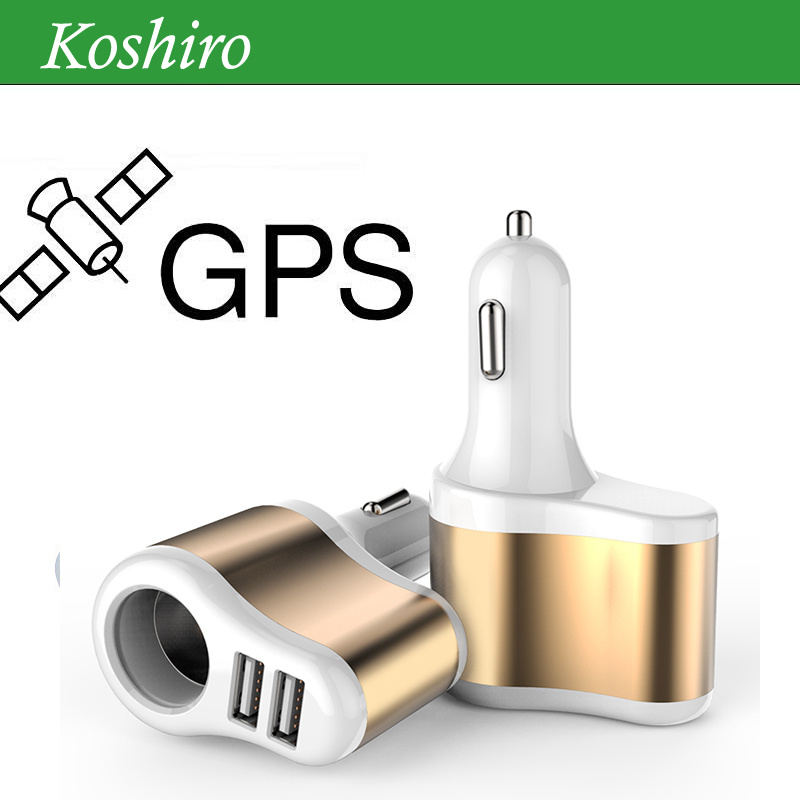

Car charger locator
Product positioning Cars, cars, trucks and so on
Major function
1, real-time positioning
2, historical track
3, electronic fence
4, vibration alarm
5, remote shutdown
6, intelligent shielding
Main features
1, free installation plug and play never power locator
2, zero error accurate positioning, always protect your car.
3,3.1A fast charge technology, stable output, to meet the charging needs
4, the vehicle abnormal alarm to remind

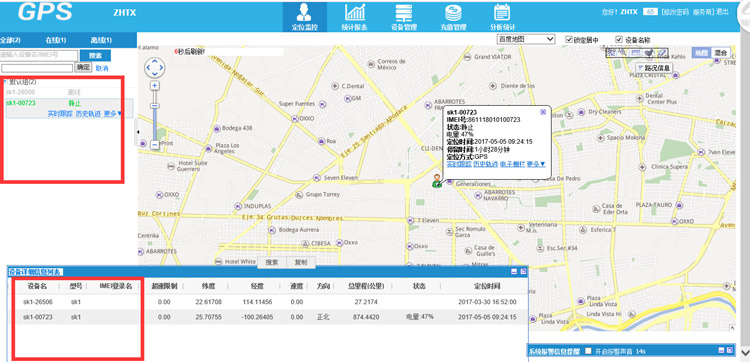

5, multi-car monitoring, fleet management
structure parts | category | specification | remarks |
ID design | Delicate, lighter size | |
Whole machine size | 9.7cm*5.8cm*3.5cm | |
Packing size | 11.5cm * 7.5cm * 3.5cm | |
Weight | 50g | |
colour | Gold, black | |
screen | no | |
gps antenna | High sensitive ceramics active antenna | |
GSM antenna | FPC antenna | |
battery | 380mAh | |
SIM card slot | 1 pc | |
G-sensor | support | |
| Charging specifications | 3.1A fast charge technology | |
2. Hardware parts |
Hardware parts | CPU | MTK MT6261 | |
GSM frequency band | 850/900/1800/1900MHz | |
GPS chip | MTK6261 | |
GPRS | class12 | |
GPS signal | L1,1575.42MHz C/A | |
GPS channel number | 22 channels | |
GPS chip receive sensitivity | Tracking sensitivity:-165dBm,capture sensitivity:-148dBm | |
WIFI location accuracy | 0 - 5M | |
GPS location accuracy | 5~15M | |
LBS location accuracy | 100-1000M | |
Minimum standby current | less than 0.5 mA | |
Average stndby current | less than 2.5 mA | |
Average working current | 5-36V | |
Working temperature | -20~70ºC | |
Working humidity | 5% to 95% non-congealable | |
GPS antenna | Built in high sensitivity ceramic antenna | |
GSM antenna | FPC antenna | |
G-sensor | Support | |
MIC | Support | |
Texture of material | ABS environmental protection material | |
3. software parts |

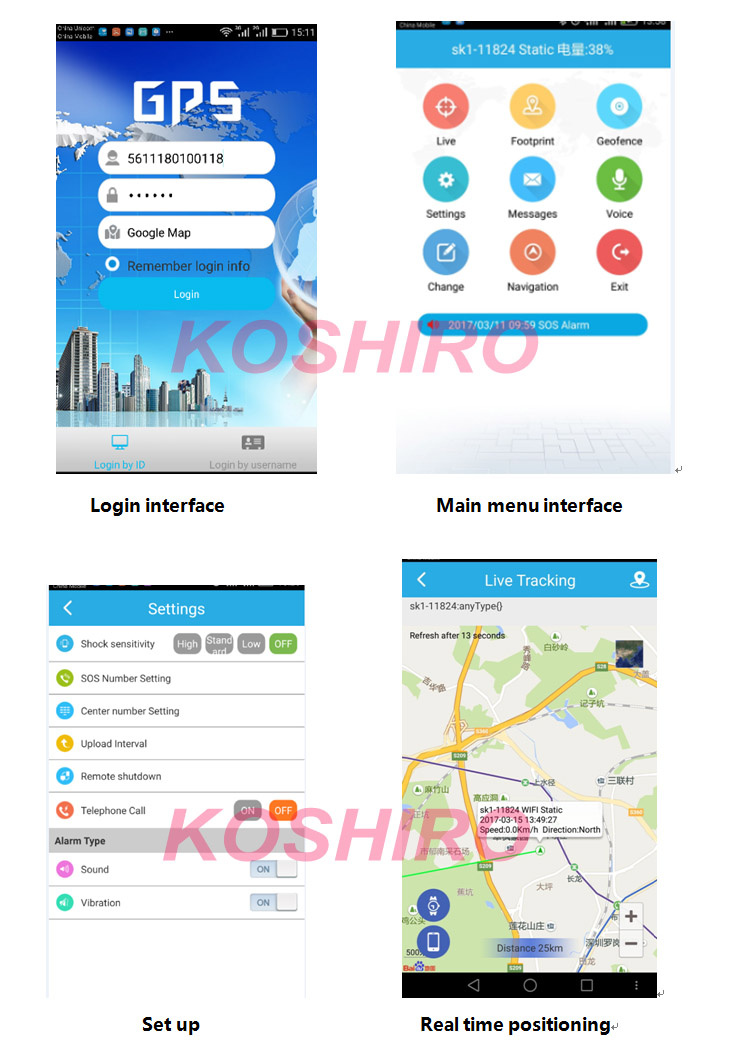

software parts | supported operating systems | Support android 2.3 and above system, IOS5.0 and above. | |
Language support | Simplified Chinese and English | Compatible with support for multi-languages |
GSM+GPRS+GPS+wifi | GPS+LBS+WIFI Multi-modal positioning | |
support AGPS | Cold start 26 seconds positioning | |
power management | Ultra-low power consumption of power management,intelligent dormancy | |
Smart Geo-fence | Outside the range setting can be automatic alarm | |
historical route | Can check history of three months | |
wireless upgrading | Software upgrade, remote debugging maintenance, remote setting parameters | |
OEM/ODM customized project would be highly welcome.Please feel free to contact us if any question or comments.
Thanks in advance!Zoe Liao
TEL:86-13809885387
KOSHIRO aims to become leading company in Safty/ healthy and devotes to bring people a scientific, high quality of life, healthy, safe, fashionable lifestyle.
IHD Technology Limited over the years has always adhered to "quality of products in order to survive, credibility and development services" business purposes. Committed to providing you with high-quality products and quality services. Have a professional, dedicated design management team, from product design, mold making, molding to the Product assembly, for each aspect and processes are rigorously testing and control.
For now, we have wide experience on GPS Tracking devices\Smart Health Watches\ Heart Rate Fitness Pedometer Bracelet etc...Products of high quality, fashionable, widely used in people's life, not only has the broad masses of the domestic sales market, but also exported to Europe and the United States.
We also have powerful hardware development capabilities. OEM & ODM project are mainly business of us. IHD to always implement the concept of customer value creation for customers tailored products to meet the needs of different customers, and continuously provide customers with solutions and technical problems.
For our current products, we offer beautiful price and can delivery the goods between 2 ~ 15 days.
OEM/ ODM project, Private label service, Package customized are also warmly welcomed.
