Rechargeable Polymer Lithium-Ion LiFePO4 Battery 3.6v 20ah for EV, HEV,UPS,ESS
Product specification | No. | Item. | Specification |
| 1 | Nominal capacity | 20ah |
| 2 | Nominal voltage | 3.6v |
| 3 | Charge current | Standard Charge :1C |
| 4 | Dimension | 9.5mm*145.5mm*266.0mm |
| 5 | Weight | 400g |
| 6 | Max.discharge current | 60A |
| 7 | Operating temperature | Charging:0ºC~45ºC
Discharging:-20ºC~60ºC |
| 8 | resistance | 2.2mΩ |
| 9 | Lifespan | 1500 times |
| 10 | Certification | CE, Un38.3, MSDS |

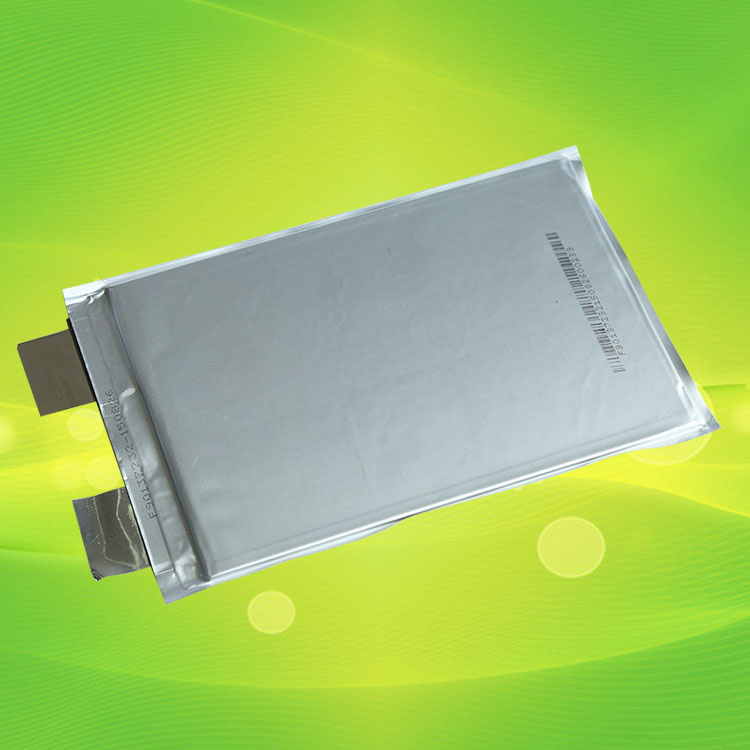

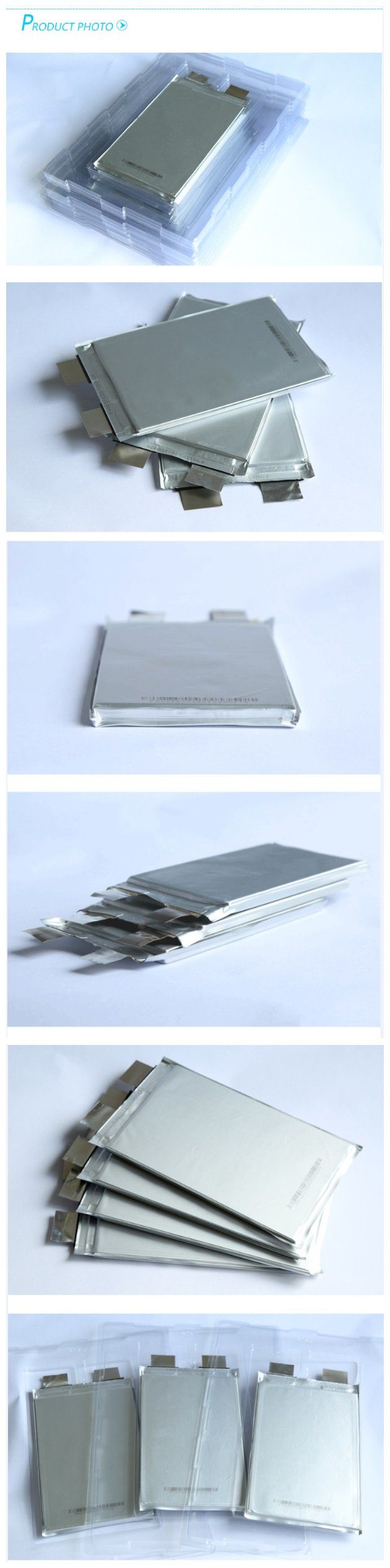

Product show

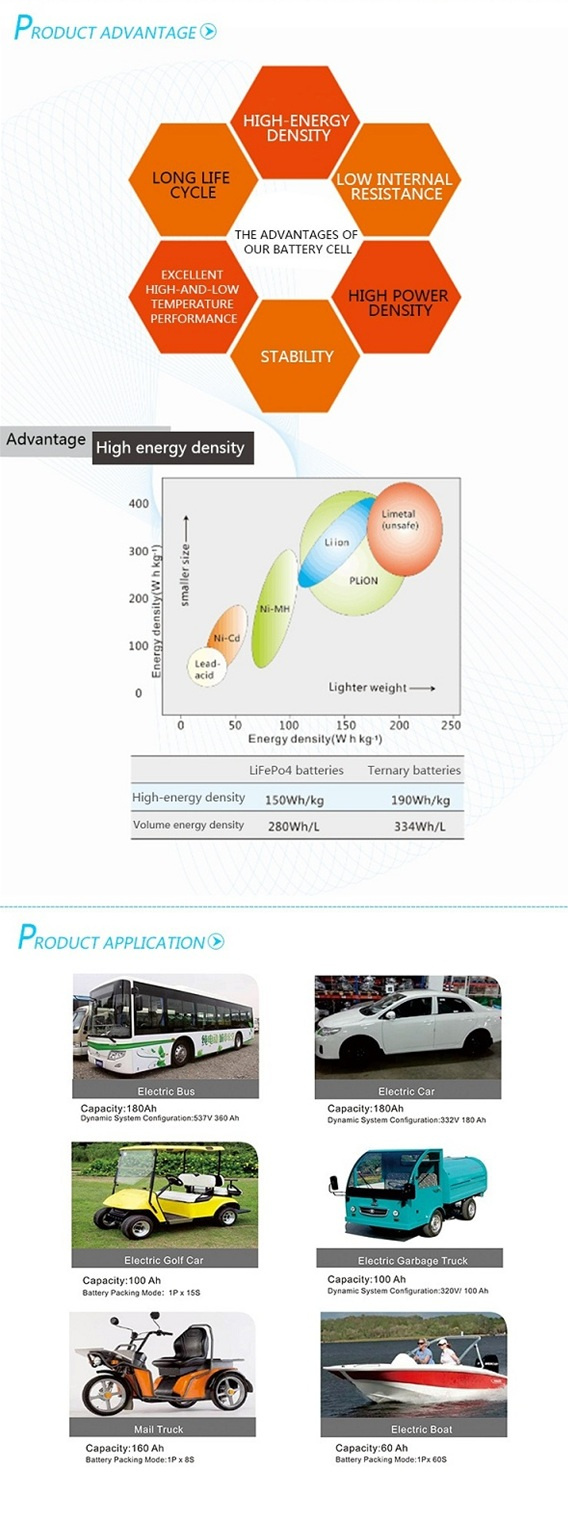

Product application

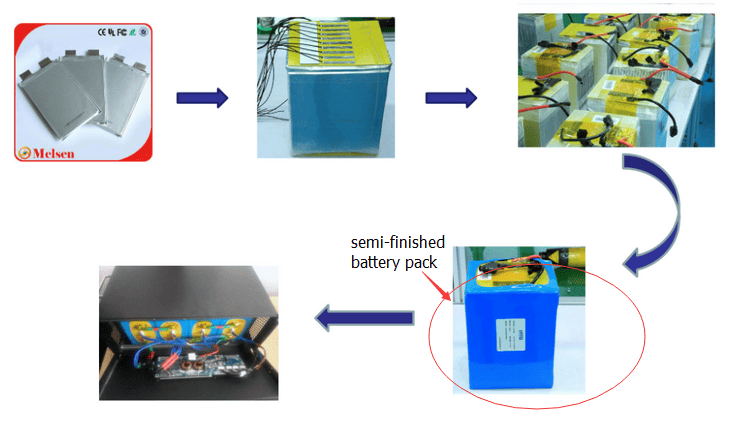

The assemple process
More models
model |
Vol(V) |
Cap(mAh) | Dimension(mm) |
Resistance(ohm) | Discharging rate
(C) |
| Thickness | Width | Height |
| F90137232 | 3.2V | 25000 | 9.0 | 137.5 | 233.0 | 1.8 | 3 |
| F95145265 | 3.2V | 33000 | 9.9 | 145.5 | 226.0 | 1.5 | 3 |
| F90160227 | 3.2V | 30000 | 9.0 | 160.5 | 228.0 | 1.6 | 3 |
| T8088178 | 3.6V | 12500 | 8.0 | 88.5 | 179.0 | 2.2 | 3 |
| T8088178 | 3.6V | 12500 | 8.8 | 88.5 | 179.0 | 2.5 | 3 |
lithium ion battery Safety performance | Item | Test name | Result |
| 1 | Over charge | No fire,no explosion |
| 2 | Over discharge | No fire,no explosion |
| 3 | Short Circuit | No fire,no explosion |
| 4 | Drop | No fire,no explosion,no leakage |
| 5 | Hot oven | No fire,no explosion |
| 6 | Crush | No fire,no explosion |
| 7 | Needle puncture | No fire,no explosion |

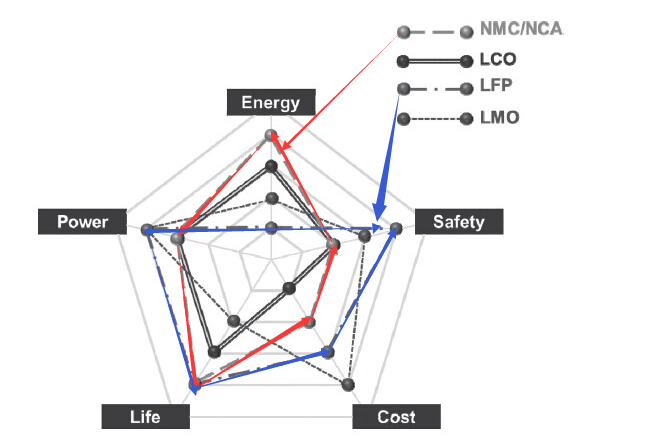

The contrast of different lithium batteries
About MelsenMelsen Power Technology Co.,LTD,specialized in researching ,developing,producing and marketing high quality Li-ion Polymer battery,is a high-tech enterprise in national key field.Our company ,established in 2012,is located in Melsen Industrial Park,Economical developing zone in Ningxiang,Hunan.With 50 million registered capital ,the factory covers an area of 120000m2 and there are nearly 600 employees and some other first-class production facilities,which amount to 260 in total.
We have passed ISO9001 Quality Management System Certification, ISO14001 Environment System Certification, OHSA18001:2007 Occupational Health and Safety Management System Certification and TS16949 Quality Management System Certification, etc. CE, ROHS, UL certifications also have been obtained to ensure the performance and security.
About product: we use high security battery and top quality ABS shell, with professional custom circuit board. total solution of protection as: converse connection over-charge&discharge over-loading; short-circuit protection.
About warranty: we promise replacement within 12 months if any quality problems are found.
About certificate: our products passed the CE, ROHS, FCC certification. and we have KC, COC, ACMA test reports.
About delivery time: For sample, 1-3 work days only.
For formal order, 7-15 days after deposit.
For OEM, 10 -15 days after receiving your sample confirmation and payment.
About price: The most favorable price in the same quality products.

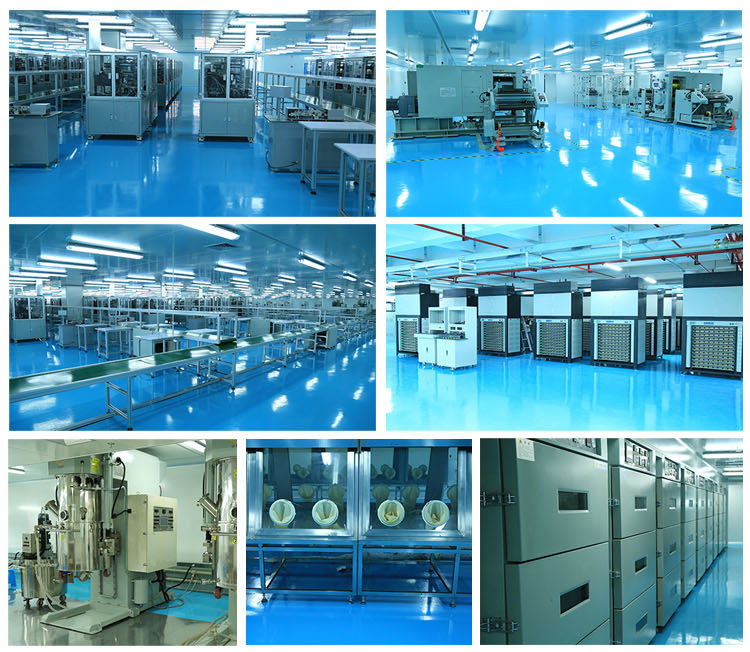

factory show
Core competitiveness1. Melsen Power Technology Co.,ltd is equipped with the stated-of the-art automatic production line and sophisticated production facilities, which lay a solid foundation for the conformance and reliability of our products.
2. The first-class technological process and dust-free workshop environment control with low humidity and high cleanness escort for the stability of the products.
3. The improvement of the unique and innovative technical process can upgraded the adhesion of the electrode plates so as to avoid producing inner bubble and promote the conformity and service life of products.
4. Reprocessing row material that applies highly conductive and thermally conductive grapheme optimizes the collocation of the materials, thus minimizing discharge rate and the temperature of battery with high-rate discharge performance.
5. The most professional R&D team keep up innovation and process-controlling, optimizing product design to ensure that our products are the most competitive.
6. The most outstanding end product design team constantly bring forth the new through the old.
Thanks for your reading!
Joanne
Melsen power, the world motive power.
Melsen Power Technology Co, Ltd. Is a professional manufacturer engaging in research, development, production, marketing and service of lithium ion pouch battery cell, battery pack and battery management system. Those products are widely used in EV, HEV, UPS, solar and wind system and remote control products.
Located in Hunan National Economic Development Zone in 2012, Melsen power has registered capital of RMB 50 million and been proved by government to be a national high tech enterprise.
Melsen Power has more than 800 staffs, including 20 advanced managing people, more than 40 development and research engineers. It has building area of 120, 000 square meters and 3 factory bases, those are, Ningxiang base, Changsha base and Shengyang base.
We has been pursuing quality policy of continuous innovation and improvement to meet customer's requirements. To realized full automation, we has introduced advanced foreign equipment and technology from Korea and Germany. To ensure the best quality, we has passed I S O 9 0 0 1, I S O 1 4 0 0 1 and O H S A S 1 8 0 0 1 certifications.
Not only in local market, our products are also exported to abroad market like Euro, USA, India, Australia, Korea. Our sales volume reached 100 millions in 2015.
We stick to the company concept of human orientation and efficient innovation and we welcome customization. So, lets join together to promote the development of renewable energy and friendly environment.
