| Prod Model: |
HTL12-100Ah |
| Size: |
484*171*241*241mm |
| Model: |
Htl12-150 |
| Gross Weight: |
45.5kgs |
| Warranty: |
3 Years |
| Delivery Time: |
10-15 Days |
| Export Markets: |
Global |
| Brand: |
Cspower/OEM |
| Color: |
Red |
| OEM: |
Available |
| Rated Capacity: |
150ah |
| Type: |
Lead-Acid Batteries |
| Usage: |
Solar and Wind System |
| Nominal Voltage: |
12V |
| Discharge Rate: |
Low Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
| Electrolyte: |
Gel |
Product Description

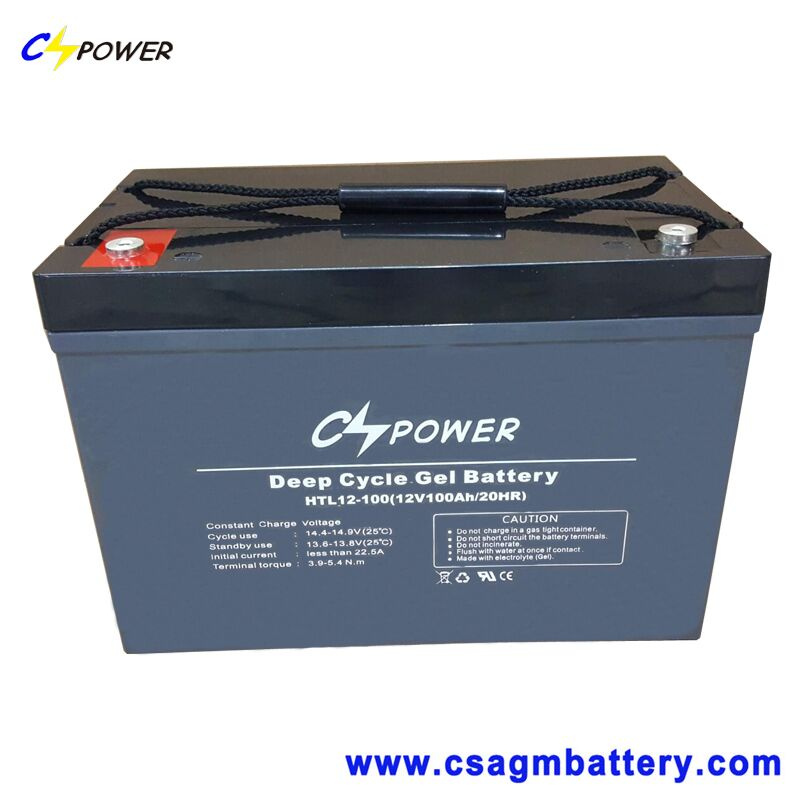

Rechargeable solar gel battery 12v100ah for high temperature power use, HTL12-100
NEWEST IN 2016, CSPOWER HIGH TEMPERATURE LONG LIFE GEL BATTERY, BEST CHOICE TO WORK IN HOT TEMPERATURE SITES AND LONG LIFE OVER 15YEARS.It meets with IEC, CE and ISO standards.With up-dated valve regulated technology and high purity raw GEL materials, the HTL series battery maintains high consistency for better performance and reliable standby service life. It is designed specially for using under high temperature sites.
battery with 15-18 years design life in float service.free maintenance deep cycle GEL series is High-temperature sealed LHT Using thick plate design with special additives (super-C). This newly developed battery can work even high temperature up to 60°C without the use of any air-conditioner.
We are proud to introduce our High Temperature Long Life Deep Cycle GEL Battery - HTL series.
Considering the above challenge, we developed a new range type of battery adapted for these environments.
Not only does it increase your capital expenses (CAPEX) and operational expenditure (OPEX) by spending thousands of dollars per year and per site in maintenance & electricity fees, it will also increase the energy used and thus increase your CO2 emissions. Reduction of Energy Consumption and increase of Energy Efficiency is one of the most important keys for outdoor use application.
Due to the nature and construction of the normal AGM lead acid battery, it cannot bear such a hot temperature, this is why for outdoor use have to be equipped with air-conditioner.
Many countries in Middle East and Africa such as Pakistan, Israel, Nigeria have an average temperature of 40°C during hot season. If the battery lay out of door, the temperature is even higher and can go up to 50 °C. You may already know it, for every 10°C increase in temperature, the battery life will be reduced by half. FEATURES AND BENEFITS FOR HTL BATTERIES
1. Three years warranty at 35°C average
2. Able to operate at 60°C
3. Long life and high stability under high temp. environment (no air-con needed)
4. Use super-C additives: Deep discharge recovery capability
5. Cycle usage: 50% DOD, 1500 Cycles
Rechargeable solar gel battery 12v100ah for high temperature power use Specification
| Model | Dimension (mm) | Weight (kgs) | Color |
| Solar gel battery12v100ah | 307*169*211*216 | 30.2 | Red |
Rechargeable solar gel battery 12v100ah for high temperature power use
CONSTRUCTION
1) Positive plate: Thick high Sn low Ca grid minimize corrosion and prolong life
2) Negative plate: Balanced Pb-Ca grid for improved recombination efficiency
3) Separator: Advanced AGM separator for ultra low float current
4) Electrolyte: nano GEL electrolyte import from Evonik Degussa Germany.
5) Battery container and cover: fire resistance ABS for higher temperature
6) Pillar seal: 100% factory tested, proven two layers epoxy resin seal
7) Relief valve : Complete with integrated flame arrestor
Applications
BTS Stations
Solar & Wind energy system
UPS system
Rechargeable solar gel battery 12v for high temperature power use Models
| CSPOWER MODEL | Voltage | Capacity | Dimension (mm) | Weight (kg) |
| (V) | (Ah) | Length | Width | Height | Total Height | (±3%) |
| HTL12-14 | 12 | 14 | 152 | 99 | 96 | 102 | 3.8 |
| HTL12-20 | 12 | 20 | 181 | 77 | 167 | 167 | 6.0 |
| HTL12-24 | 12 | 25 | 166 | 175 | 126 | 126 | 8.3 |
| HTL12-26 | 12 | 25 | 165 | 126 | 174 | 179 | 8.4 |
| HTL12-35 | 12 | 35 | 196 | 130 | 155 | 167 | 10.5 |
| HTL12-40 | 12 | 40 | 198 | 166 | 174 | 174 | 14.2 |
| HTL12-55 | 12 | 55 | 229 | 138 | 208 | 212 | 16.0 |
| HTL12-70 | 12 | 70 | 350 | 167 | 178 | 178 | 23.3 |
| HTL12-75 | 12 | 75 | 260 | 169 | 208 | 227 | 25.0 |
| HTL12-85 | 12 | 85 | 260 | 169 | 208 | 227 | 26.1 |
| HTL12-90 | 12 | 90 | 307 | 169 | 211 | 216 | 28.2 |
| HTL12-100 | 12 | 100 | 307 | 169 | 211 | 216 | 30.2 |
| HTL12-110 | 12 | 110 | 331 | 174 | 214 | 220 | 33.3 |
| HTL12-120 | 12 | 120 | 407 | 173 | 210 | 233 | 39.2 |
| HTL12-135 | 12 | 135 | 344 | 172 | 280 | 285 | 40.8 |

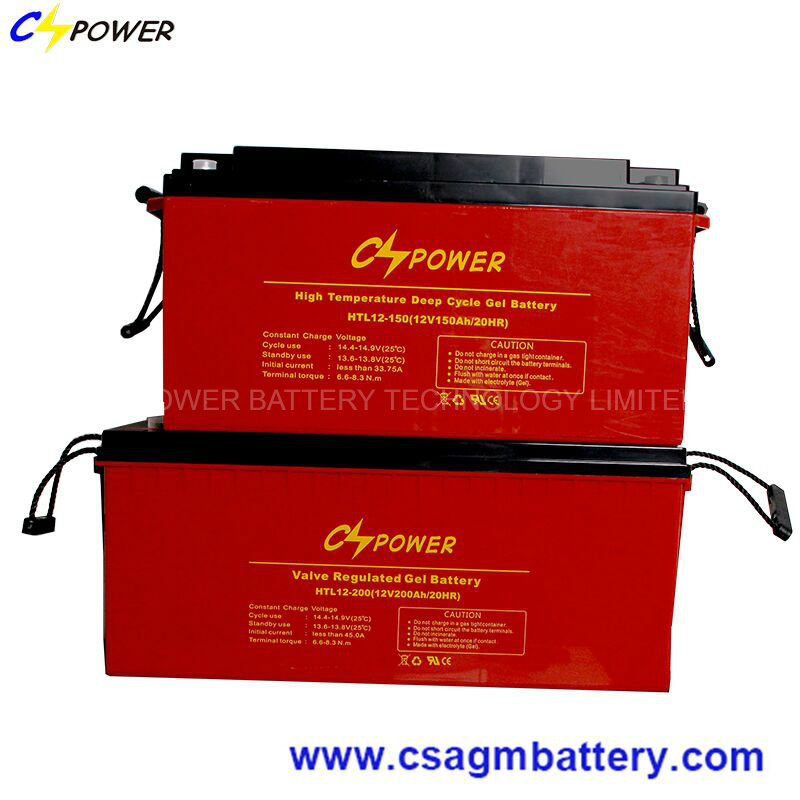

| HTL12-150 | 12 | 150 | 484 | 171 | 241 | 241 | 45.5 |
| HTL12-180 | 12 | 180 | 532 | 206 | 216 | 222 | 56.0 |
| HTL12-200 | 12 | 200 | 532 | 206 | 216 | 222 | 58.4 |
| HTL12-230 | 12 | 230 | 522 | 240 | 219 | 225 | 65.0 |
| HTL12-250 | 12 | 250 | 520 | 268 | 220 | 226 | 71.0 |
| HTL12-300 | 12 | 300 | 520 | 268 | 220 | 226 | 77.0 |
| HTL6-200 | 6 | 200 | 306 | 168 | 220 | 222 | 30 |
| HTL6-210 | 6 | 210 | 260 | 180 | 247 | 249 | 29.5 |
| HTL6-220 | 6 | 220 | 306 | 168 | 220 | 222 | 31.5 |
| HTL6-225 | 6 | 225 | 243 | 187 | 275 | 275 | 30.5 |
| HTL6-310 | 6 | 310 | 295 | 178 | 346 | 366 | 46 |
| HTL6-330 | 6 | 330 | 295 | 178 | 354 | 360 | 46.6 |
| HTL6-380 | 6 | 380 | 295 | 178 | 404 | 410 | 55.3 |
| HTL6-420 | 6 | 420 | 295 | 178 | 404 | 410 | 56.8 |
Why Choose CSPOWER?
1) Nearly 13 years leading manufacturer,established in 2003. Factroy size: 50000 square meter
2) Strict management system and quality control, 100% inspection.Factories are satisfied with ISO 9001 ISO
14001, products with CE/RoHS/TLC etc approval.
3) A professional experienced team to provide you high-quality service.All enquires will be replied in 24 hours.
4) Competitive price help you to occupy more market share
5) 20000KWH production capacity to guarantee the best deliver time
6) 1-3 years warranty policy, up to now, our product defective rate is under 0.4%.
