Regulated Output IC Wide Voltage Range Input DC Converter Grbxxxxd Series
| Price: |
Negotiable/Piece |
| Min Order: |
2/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
Regulated output ic wide voltage range input dc converter GRBxxxxD Series
Sunyuan GRB Series Wide Voltage Range Input, Regulated High Voltage Outptut DC DC Converter adopts the advanced DC/DC conversion and pressor technology, the unique vacuum insulation and encapsulation technical design, the metal shield case, which have the following characteristics: moisture-proof, shockproof, high efficiency, low noise, low temperature drift, anti-EMC electro magnetic interference,etc. The modules are widely used in mine exploration, metallurgy, optical control technology, medical equipment, physical and chemical experimental analysis, etc.
Technical Parameters:| Output Specifications: |
| Technical Specifications | Technical Parameter | Testing Conditions |
| Voltage Stability Accuracy | 3.0%max | 1%-100% load range |
| Voltage Regulation | 0.5%max | full load |
| Load Regulation | ±0.5%type.
±1.0%max
(No load to full load) | 0%-100% load range |
| Ripple and Noise | ≤150mVp-p,max | 20MHzband width |
| Dynamic Response Speed | ≤150us | 25% load-full load |
| Response Time | 500ms | |
| Input Specifications: |
| Input Voltage Range | (12VDC)9 - 18VDC | |
| (24VDC)18 - 36VDC | |
| Linear Speed Rate | 0.5% | low end- high end |
| General Specifications: |
| Switch Frequency | 150KHZ | Typical Value |
| Conversion Efficiency | See Model Selection Guide | |
| Isolation Voltage | Non-isolated | |
| Average Non-failure Interval Time | 50000 hours | |
| Temperature Coefficient | 0.02%/ºC | |
| Environment Characteristics: |
| Operating Temperature | -40ºC - +85ºC | |
| Storage Humidity | -55ºC - +125ºC | |
| Relative Humidity | 10% - 90% | |
| Cooling Mode | free air | |
| | | | |

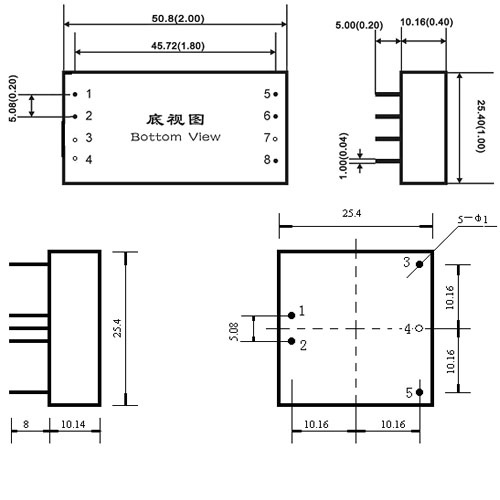

Dimension & PIN Definition:
( 1 ) A Model Dimension:25.4 x 25.4 x 10.14 Unit:mm A Model Product No. : GRBXXXXD- A (bottom view)
| Prod Model: |
GRBxxxxD Series |
| Input: |
4.5-9VDC,9-18VDC,18-36VDC,etc. |
| Output: |
80VDC,100VDC,110VDC,150VDC,200VDC,250VDC,etc. |
| Power: |
2-10W |
| Isolation Voltage: |
Non-Isolation |
| Package: |
DIP |
