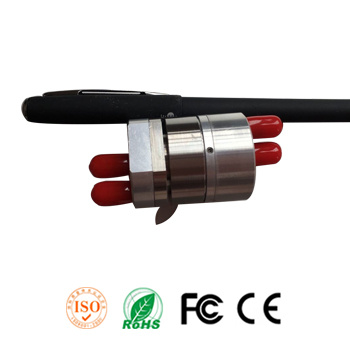

Reliable frequency rotary joint with SGS,ISO,CE,FCC,ROSH

Dual Channel Rotary Joint :Perfect frequency rotary joint from China at affordable price

A radio frequency rotary joint (or swivel joint) is a mechanism used to transfer fluid (under pressure or vacuum) from a stationary inlet to a rotating outlet, preserving and isolating the fluid connection. Radio frequency slip rings are engineered to endure a wide range of temperatures and pressures for a variety of conditions and environments. In addition, Radio frequency rotary joint may integrate multiple passages and handle different types of fluid simultaneously.
Radio frequency rotary joint typically used in satellite communication solutions to the military, broadcast media, and corporate customers.

Reliable frequency rotary joint with SGS,ISO,CE,FCC,ROSH

Dual Channel Rotary Joint
Radio frequency channel characteristics

Channel designation	Channel 1	Channel 2
Interface	1.5-3.5 female	1.5-3.5 female
Frequency range	DC to 4.5 GHz	DC to 4.5 GHz
Peak power, max.	1 kW	1 kW
Average power, max.	10 W	10 W
VSWR, max.	1.2	1.5
VSWR variation during rotation, max.	0.05	0.20
Insertion loss, max.	0.25 dB	0.30 dB
Insertion loss variation during rotation, max.	0.05 dB	0.15 dB
Phase variation during rotation, max.	0.5 deg. @ DC to 4.5 GHz	4 deg. @ DC to 4.5 GHz
Isolation, min.	50 dB
DC carrying capability, min.	0.5 A* @ 24 VDC	0.5 A* @ 24 VDC

Condition: DC applied to one channel only.

Rotating speed, max.	200 rpm	Life, min.	10 Mio. revolutions
Starting torque, max.	0.05 Nm @ ambient temp.	Torque during rotation, max.	0.05 Nm @ ambient temp.
Axial load on interface, max.	±5 N	Radial load on interface, max.	±5 N
Case material	aluminum alloy	Case surface finish	chromate conversion coat per MIL-C-5541
Connector material	SMA connector copper alloy	Connector surface finish	gold plated
Weight, approx.	0.13 kg	Marking	adhesive label

General environmental conditions

Operation
Temperature range	-40°C to +70°C
Humidity	95% RH (non-condensing)
IP protection level	IP60 per EN 60529
Storage
Temperature range	-55°C to +70°C
Humidity	95% RH (non-condensing)

Features: Reliable frequency rotary joint with SGS,ISO,CE,FCC,ROSH
Low Torque Seals
Compact Design
NPT / BSPT Connection Options
Lightweight Construction
Corrosion Resistant
Low Heat Generation
Increased Seal Life Performance
Customized options

Prod Model:	BTRF-02FS
Channels:	2
Frequency:	4.5GHz
Isolation:	50dB
Operating Temperature:	-40 C~ +80c
Rotational Speed:	200rpm
Others:	One Channel Option
Guaranteed:	1 Year
Lead Time:	2 Weeks

ByTune electronics Co., Ltd, since 1998, is a government supporting, hi-tech, private enterprise, with more than 200 employees, 20, 000 square feet factory and 2, 500 square feet rd & sales office. ByTune is focused in developing, designing, manufacturing slip rings nearly 20 years, we supply wide range slip rings and provide360° Rotary solutions. Besides supplying standard through hole slip rings, capsule slip rings, separate slip rings, pan cake slip rings, hydraulic slip rings, pneumatic slip rings, coax rotary joints, fiber optic slip ring etc, we have an expertized engineering team of more than 50 persons, we provide full range of customized slip rings at prompt delivery. We customize slip rings as per customers request in different applications such as agriculture machine slip ring, crane slip ring, antenna slip rings, wind turbine slip rings, auto-wrap machine slip rings...

ByTune electronics is equipped with the machines of CNC ( 2, 3, 4 and 5 axis), vertical machine tool integrating turning with milling, auto-drilling machine, precise milling machine, numerical control punch press, grinding machine, and so on… ...With advanced machines, we could do all of the processions in one-stop: CNC lathe, milling, drilling, grinding, punching, bending, casting, forging, stamping, etc … ByTune supplies quality & precise machine parts at prompt delivery.

At www.btslipring.COM, you could get high quality slip rings and machine parts at an affordable price and with superior support by contacting sales@btslipring. COM.

ByTune is ISO9001, CE, FCC, RoHS and military standard JGB9001A certificated!
