RFID Driver Identification Automotive GPS Tracker VT1000
Specification
| Power Supply | +9V - +35V / 1.5A |
| Backup Battery | 850mAh |
| Dimension | 110mm x 80mm x 30mm |
| Installation Dimension | 110mm x 80mm x 30mm |
| Weigh | 180g |
| Operating temperature | -20° to 75° C |
| Humidity | 5% to 95% Non-condensing |
| Frequency | GSM 900/1800/1900Mhz or GSM 850/900/1800/1900Mhz |
| GPS Chipset | latest GPS SIRF-Star III chipset |
| GPS Sensitivity | -158Db |
| GPS Frequency | L1, 1575.42 MHz |
| C/A Code | 1.023 MHz chip rate |
| Channels | 20 channel all-in-view tracking |
| Position Accuracy | 10 meters, 2D RMS |
| Velocity Accuracy | 0.1 m/s |
| Time Accuracy | 1 us synchronized to GPS time |
| Default datum | WGS-84 |
| Reacquisition | 0.1 sec., average |
| Hot start | 1 sec., average |
| Warm start | 38 sec., average |
| Cold start | 42 sec., average |
| Altitude Limit | 18,000 meters (60,000 feet) max |
| Velocity Limit | 515 meters/second (1000 knots) max. |
| LED | 2 LED lights to show GPS/GSM working status.One SOS button |
| Button | SOS |

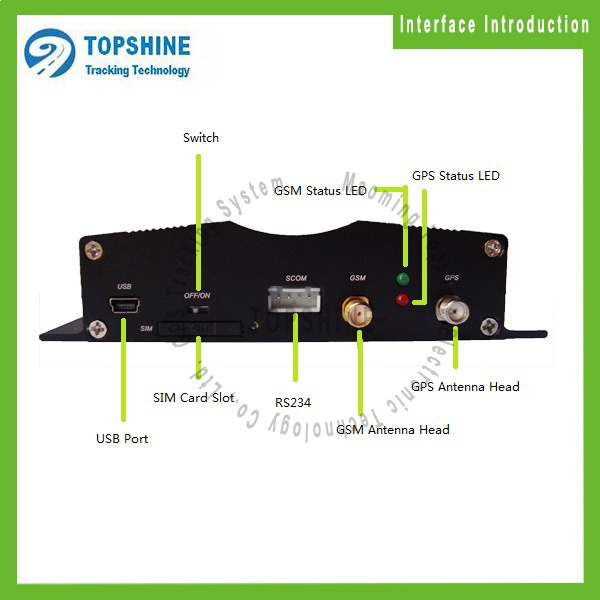

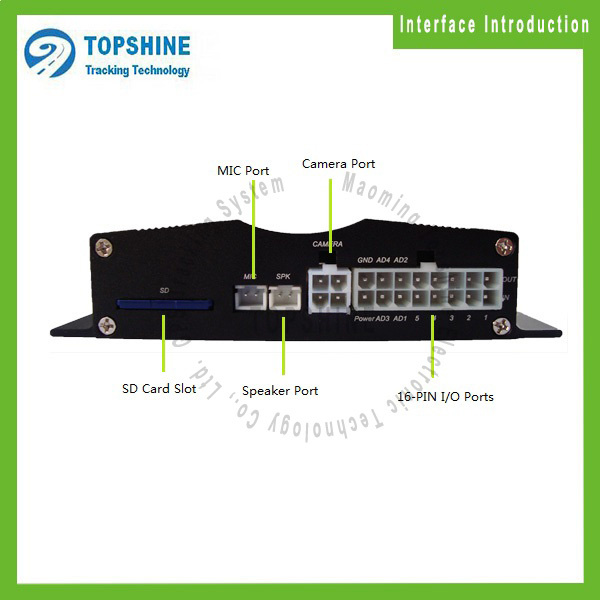

| Interface | 5 inputs,5 outputs, 4 A/D ports, MIC&Speaker port, camera port, RS232 port, SD card slot |
Application
*Vehicle Real Time Tracking
*Car Security/Anti-Hijack
*Comprehensive fleet management
Features
* Tracking by SMS/GPRS (TCP/UDP)
* OTA Function
* Tracking by time/distance interval
* Two way communication (Listen & Speak)
* Real time tracking via the web-platform
* Oil leaking/Refuel Alarm
* Get position location via call/SMS
* Accident alarm
* Engine on/off detection
* Remote Engine cut off
* Built-in backup battery
* Support max 64G SD card store
* Wiretapping/remote listening
* ARM9 high speed microcontroller
* Photo with location & driving information log function
* Get location physical name via SMS & from the web-platform
* Google Map link for location via SMS, it shows your location on map via mobile phone.
* Mileage calculation with longitude and latitude via SMS; view mileage data via GPS web-based tracking centre system
* Built-in motion sensor for power & GPRS flow saving mode (sleep mode)
* Built-in 4MB memory & position logging capacity up to 26,000+ waypoints even no GPRS signal
* Can equip with RFID kit for driver identification and auto Arm/Disarm functions
(movement/towed alert, ignition alert, auto cut off engine etc)
* I/O: 5 Inputs, 5 Outputs, 4 Analog Input
* Analog input for Temperature & Fuel sensor detecting/monitoring, support max 4 fuel sensor manage
* More Alarm functions:
* Over speed alert
* Geo-fence alert
* Power failure/low power alert
* SOS Panic button, SOS alert
* Harsh braking and harsh acceleration alarm
* Suddenly acceleration/brake alert

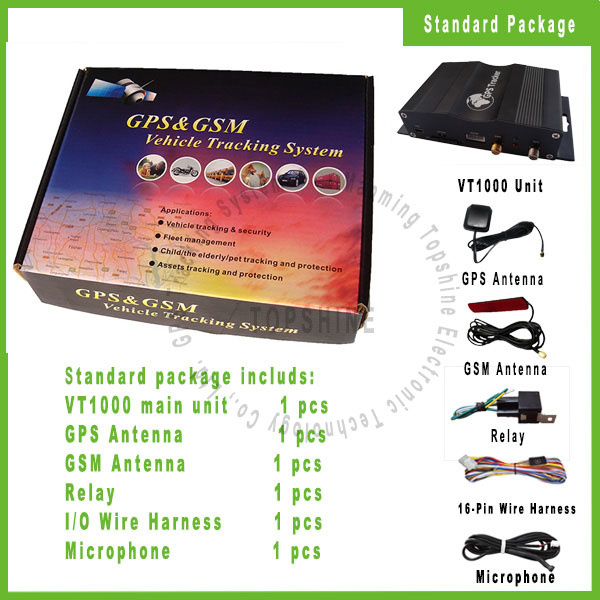

Package and Accessories
Optional AccessoriesCamera
Fuel sensor
Temperature sensor
Active RFID kit
Passive RFID kit
SD card
Crash sensorThanks For Your Time!
