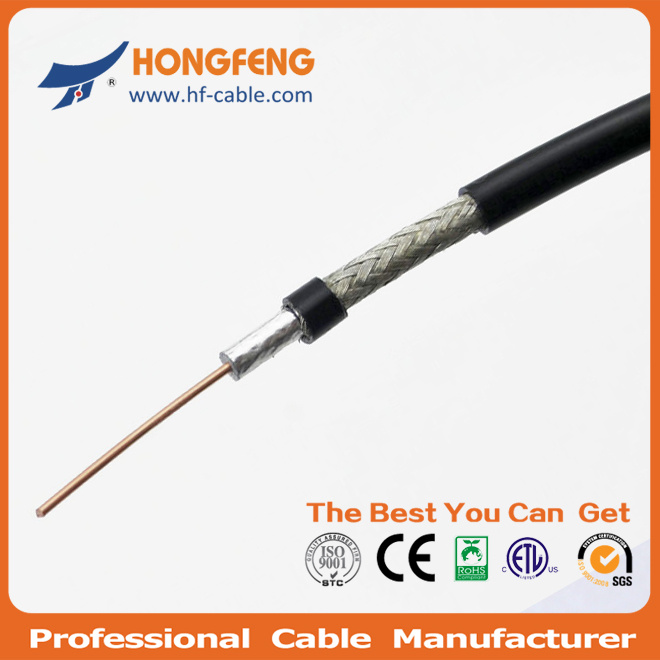

Rg58 Coaxial Cable with 50 Ohm Cable

Name: Rg58 Coaxial Cable with 50 Ohm Cable
Brand: all-electronics-online.com
SKU: 731888935
Availability: InStock
Rating: 4.4 (40 reviews)

Price:	US $ 0.1-1/Meter
Trade Terms:	FOB
Min Order:	10Kilometer
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	RG58
Markets:	South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe
Inner Conductor:	9*0.18mm
Dielectric:	2.95mmfpe/Spe
Frist Shield:	Tc/Bc
Shield Coverage:	95
Jack:	4.95mmpvc
Inpedance:	50ohm
Jack Color:	Any Color
Application:	Coaxial Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Cover Material:	PVC
Certification:	UL
Type:	Coaxial Cable

Product Description

Specifications

1, Specs: 10*0.18mm BC/TC+2.95PE+TC/BC Brading+4.95PVC
2, CE, ROHS, ISO
3, MOQ: 20KM
4, Leadtime: 10days
5, OEM is welcome

Product Description
1. Specifications:
1) 19X0.18mmTinnedCopper+2.95mmSolid PE + + 95% Tinned
Copper Braiding+4.95mmPVC
2) Customers' specifications are welcomed

2. Characteristics:
Impedance: 50+/-2 Ohm
Velocity of Propagation: 66%
Capacitance: 93.5pF/m
Return Loss: 23dB min
Attenuation: [@68 F. (20 C) ] dB/100meters
30MHz 6.30dB
50MHz 8.10dB
150MHz 45.60dB
220MHz 14.10dB
450MHz 17.10dB
900MHz 24.60dB
1500MHz 35.00dB
1800MHz 50.10dB
2000MHz 53.00dB
2500MHz 59.50dB
5800MHz 93.10dB

Our company, hongfeng industry, a professional cable manufacturer, is located in hangzhou, a city which is not only famous for its fabulous scenery, and also known for the center of the manufacture industry. And also we get close to the Shanghai port and ningbo port. This makes our company an unique position offering and delivering the cable overseas. We are dediacated to providing high quality coaxial cable and LAN twisted pair cable.

We offer whole range of coaxial cable and LAN twisted pair cable. Coaxial cable includes RG6 series, RG58series, RG59series, RG7series, RG11series, QR series, 500 series. And network cable CAT7 series, CAT 6 series, CAT 5 series.

We provide consistent high quality products at competitive prices. We have an products controlling teams, which monitors the manufacturing process and checks all the products before shipment. Our professional customer's service are ready to provide you with all necessary consultations and solve any problems related to our products.
