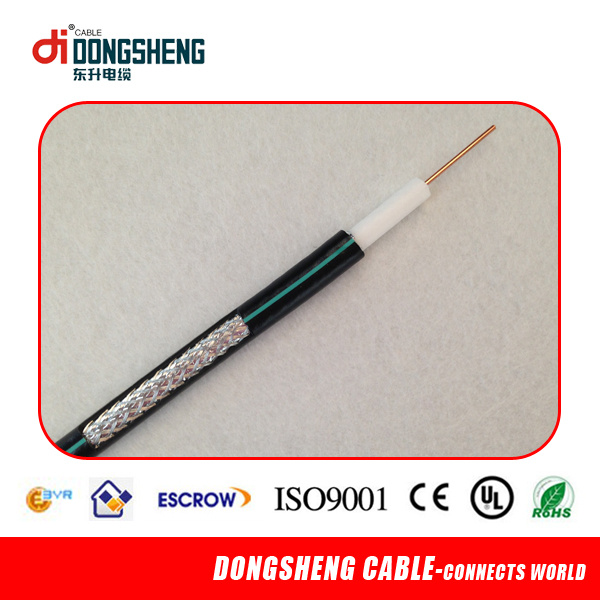

RG59 Cable Coaxial 75 Ohm Note:
1) Center conductor:BC,TC,CCA,CCS
2) Al-foil:Non-bonded Al-foil, bonded Al-foil,double bonded Al-foil,and double non-bonded Al-foil
3) Braiding wire:Al,BC,,TC,CCA,CCS
4) Braiding wire diameter:0.10,0.11,0.12,0.13,0.14,0.15,0.16mm
5) Braiding net:32,48,64,72,80,96,120,128,144 and more
6) Braiding coverage:Between 30-97%
7) PVC jacket of flame retardant,UL
Constructure and Specifications-RG59
RG59 cctv cable good quality
1):cctv cable for CCTV Camera
2):cctv cable Brand OEM
3):cctv cable RG59 plus power cable
| Component | Diameter | Material |
| Inner Conductor | 0.81(mm) | BC/CCS |
| Dielectric | 3.77(mm) | Solid/Foamed PE |
| First Shield (Al Foil Shield) | | Bonded/Al Foil |
| Second Shield (Braiding Shield) | 96/112/128*0.12(mm) | TC/BC/CCA/AL wires |
| Jacket | 6.0(mm) | PVC |
| power cable | 30*0.15mm/16*0.2mm | BC/CCA |
| Dielectric | 1.8mm | Red & Black PE |
| Jacket | 4.5mm | PVC |
Electrical Characteristics-RG59
| Impedance(Ohms) | 75+3 |
| Nomial Capacitcance(pF/m) | 67 |
| Velocity of Propagation | 82% |
| Minimum Return Loss(dB) | 1-1000Mhz 23 1000-2250Mhz 20 |
Attenuation[ @68°F]
| Frequency (Mhz) | Maximum(dB/100M) |
| 10 | 2.5 |
| 50 | 5.0 |
| 100 | 7.3 |
| 200 | 9.6 |
| 400 | 14.3 |
| 700 | 19.1 |
| 900 | 22.0 |
| 1000 | 24.0 |
| MOQ | 50KM |
| Payment | 30% deposit in advance. the balance before shipping |
| Delivery time | with in 15 days when we got the deposit |
| Certificate | CE/RoHS
|

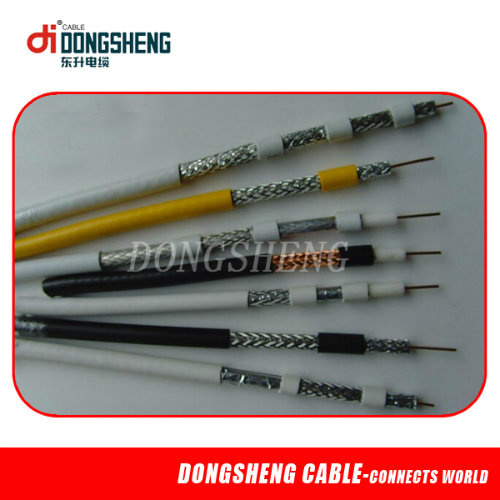

Products photos-RG59

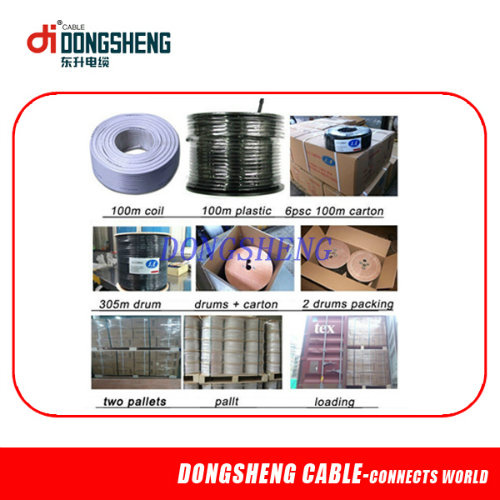

Package-RG59
1) Packing Lengths: 100m/roll, 305m/roll,1000m/drum,Other lengths available according to client's request;
2) Inner packing: Wooden reel, plastic reel available.
3) Outer packing: Cardboard box, pallet customers'request available.
4) Other packing available according to client's request
