| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Port: |
Shenzhen |
| Certification: |
Rhos I Compliant |
| Type: |
Generally Coaxial Connector |
| Coupling Mechanism: |
Threaded Connection |
| Brand: |
Renhotec |
Product Description

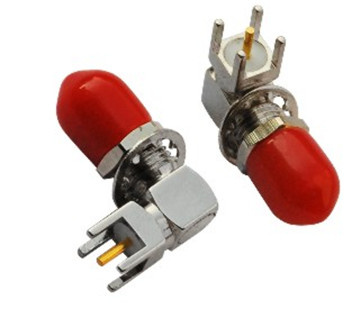

SMA series connectors have many advantages, such as small size, wide frequency range, excellent signal properties and high reliability. They are widely used in RF and Microwave Industries.
Technical Charicteristics:
Temperature Range |
-55~+155( PE cable -40~+85) |
Impedance |
50ohm |
Frequency Range |
0-12G,0-18G |
Working Voltage |
500 VRMS |
Contact Resistance |
Inner:3 m ohms max
Outer:2.5 m ohms max |
VSWR: |
straight:1.1max,R/A:1.2max |
Durability |
500cycles |
Authentication |
ISO9001: 2008 |
APPLICABLE STANDARD |
IEC169-15 MIL-C-39012 |
Materials :
Shell |
Shell |
Gold plated |
Contact pin |
Brass |
Gold plated |
Insulator |
PTFE |
|
Services: We also customize special products to meet our clients' requirements. Just show us your drawing, sample or indicated details, we will produce it Or please kindly send us your specific engineering parameters such as IMD, VSWR, plating etc. We will discuss with you about the details and please feel free to contact us.
Quality: We use only the best quality components to ensure the standard of our product range is of the highest caliber. All products we sold out are strictly selected and tested by our QC department.
Guaranty: We provide comprehensive service, including quality service, guidance services, We focus on customer needs in every detail.
Quality is essential to both of us, we believe that excellent quality. reasonable price, mutual benefit will be good basis of our cooperation. If you have any requirement. Please contact us. We looking forward to cooperate with you! Http: //www. dosinconn.com
or www.renhotec.com.
