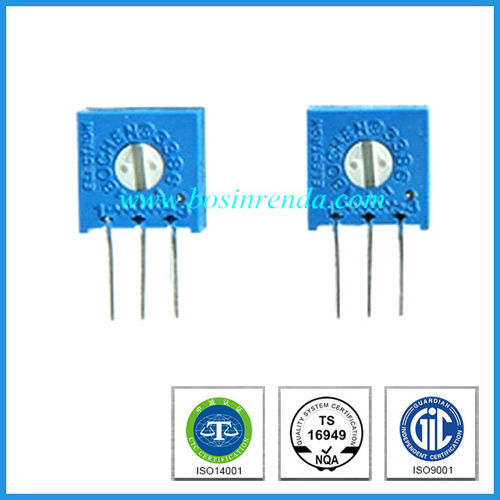

Rotary Potentiometer 3386 Variable Resistor Trimmer Potentiometer

Name: Rotary Potentiometer 3386 Variable Resistor Trimmer Potentiometer
Brand: all-electronics-online.com
SKU: 811373935
Availability: InStock
Rating: 4.9 (141 reviews)

Price:	US $ 0.08/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Potentiometer, Precision potentiometer, rotary potentiometers, Trimmer Rotary potentiometer, potentiometers, audio potentiometers

Bosin electronics is a manufacturer specializing in rotary encoders, potentiometers and switches. Our company passed ISO9001, ISO14001, ISO/TS16949.

This trimmer potentiometer mainly use on instruments, testers and audio equipments.

Please check below specification.

1.Electrical Characteristics for trimmer potentiometer
1.1 Range of nominal resistance: 10Ω~5MΩ 1.2 Total Resistance Tolerance: ± 10% 1.3 Terminal resistance: ≤±1%R or 2Ω 1.4 Contact resistance variation : ≤±1%R or 3Ω 1.5 Insulation resistance: ≥ 1GΩ (100V AC) 1.6 Withstand voltage: 500V DC or AC peak value 1.7 Effective electrical travel: ≥200°
2.Mechanical Characteristics
2.1 Total Rotational Angle: 260°±10° 2.2 Rotational Stopper Strength: ≥50mN.m 2.3 Rotational Torque: ≤20mN.m
3.Endurance Characteristics
3.1 Rated power: 0.25W ( 300V max) 3.2 Temperature Range:-55°C~+125°C 3.3 Soldering conditions: 260°C ±5°C,5Sec. 3.4 Electrical endurance (0.25W, 1000h): ΔR≤± (5%R+0.1Ω),CRV≤±3%R or 5Ω 3.5 Mechanical endurance (200 cycles): ΔR≤± (10%R+0.5Ω), CRV≤±3%R or 5Ω 3.6 Steady damp heat (IEC68-2-3, Ca, 96h):ΔR≤± (5%R+0.1Ω), Insulation Resistance≥100MΩ 3.7 Temperature Coefficient:±250ppm/°C

Prod Model:	WI3386
RoHS:	100%
Certificate:	ISO9001, ISO14001, Ts16949
Resistance:	Variable Resistor
Function For Resistance:	Load Resistor
Installation:	DIP Resistor
Material:	Carbon Film Resistor
Package Type:	Surface Mount
Type:	Rotary Potentiometer
Brand:	BS

Bosin Electronics Ltd is invested by Bosin holdings which established in 2006.

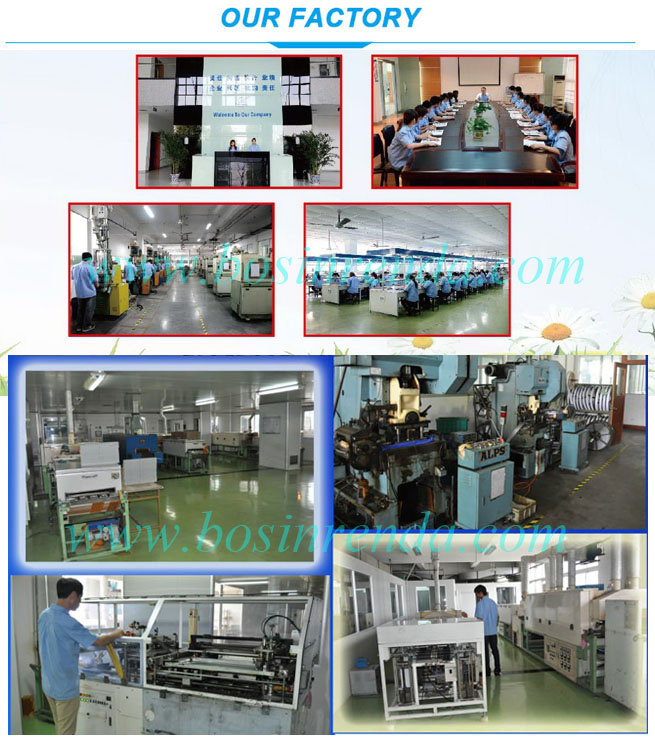

The copmany specializing in designing and manufacturing potentiometer, encoder, switch and DC motors. Now our company factory area is about 10000 m2, employees more than 600 persons and technicians more than 60 persons. And we all staffs have strived for five years to build up a set of completely production flow including of developing new product, mould manufacture, spare parts or components manufacture, finished product assembly. We build up a good image of " Bosin" in our field and the products already accepted by LG, PHILIPS, SANYO, BBK, Malata, etc. For a long time.

After decade of efforts, the Bosin products have been sent to over 100 countries, including rotary potentiometers, slide potentiometers, trimmer potentiometers, super-thin potentiometers, encoders and rotary switches, widely applied to computer/multimedia peripherals and various industrial fields. All products are RoHS compliant. For further improving the compatibility and making effort to our quality policy of "Keep Improving, Quality Assurance", the Bosin takes most advanced management mechanism and technologies that including computerized jigs and dies design, automatic assembly facilities and so forth. Now, the Bosin has the capability of producing over 1200 different kinds of hardware, 16 series with about 240 models of potentiometer to meet most of the requirement of the potentiometer market.

The Bosin has passed the certificate of ISO 9001-2000, ISO 14001-2004, TS16949, this assures to satisfy our clients with best quality of products and services. Now, the Bosin is devoting all its efforts to become the top of the potentiometer manufacturer in China.
