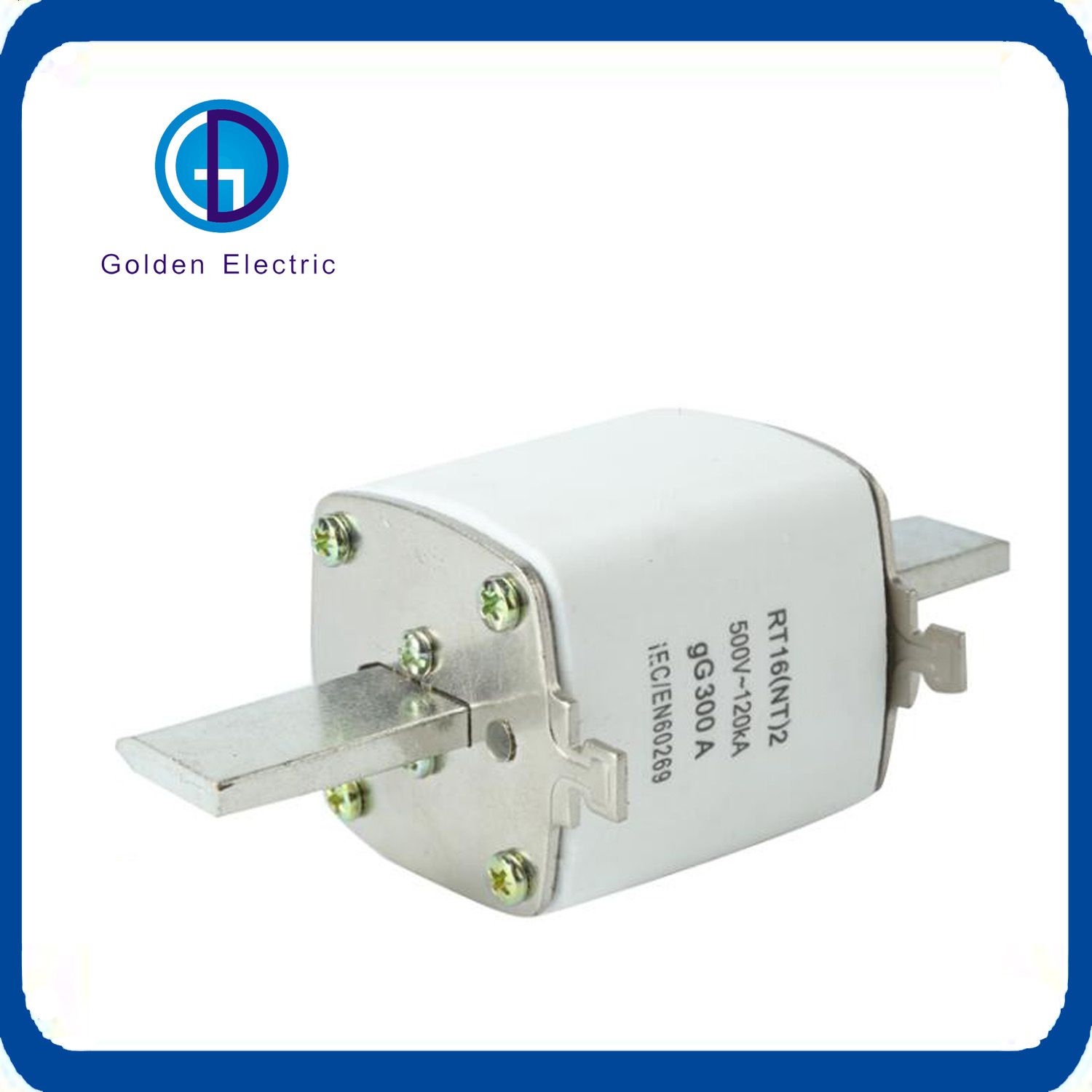

Rt16 Nt Series Fuse, Fuse Base with Ce ISO

Name: Rt16 Nt Series Fuse, Fuse Base with Ce ISO
Brand: all-electronics-online.com
SKU: 827625505
Availability: InStock
Rating: 5 (63 reviews)

Price:	US $ 0.08-0.5/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

RT16 (NT)Knife contact fuse protector is a new fuse protector designed by our company and featured by small size, light weight, low consumption and high breaking capacity, etc.;and widely used for overload protection and short-circuit protection of electric device. The series products are divided into "gG" and "aM" type; "gG" is ordinary fuse protector with full range of breaking capacity, while "aM" is fuse protector for the protection of motor with partial breaking capacity. This product conforms to GB 13539 and IEC 60269 standards; its technical indicators have reached international advanced level.

Specifications	Rated current(A)	Rated voltage(V)	Rated power (W)
RT16-00C (NT00C)	4	400 500 660	0.67
	6		0.89
	10		1.14
	16		1.65
	20		1.94
	25		2.50
	32		3.32
	40		4.30
	50		4.50
	63		4.60
	80		6.00
	100		7.30
RT16-00 (NT00)	4	400 500 660	0.67
	6		0.89
	10		1.14
	16		1.65
	20		1.94
	25		2.50
	32		3.32
	40		4.30
	50		4.50
	63		4.60
	80		6.00
	100		7.30
	125		7.80
	160		9.60
RT16-0 (NT0)	4	400 500 660	1.03
	6		1.42
	10		1.85
	16		2.15
	20		2.36
	25		2.70
	32		3.74
	40		4.70
	50		5.50
	63		6.90
	80		7.60
	100		8.90
	125	400 500	10.10
	160	400 500	15.20
RT16-1 (NT1)	80	400 500 660	6.20
	100		7.50
	125		10.20
	160		13.00
	200		15.20
	224	400 500	16.80
	250	400 500	18.30
RT16-2 (NT2)	125	400 500 660	9.00
	160		11.50
	200		15.00
	224		16.00
	250		18.40
	300		21.00
	315		19.20
	355	400 500	24.50
	400	400 500	26.00
RT16-3 (NT3)	315	400 500 660	27.10
	355		22.70
	400		26.80
	425		28.90
	500		32.00
	630	400 500	40.30
RT16-3 (NT3)	800	400 500 660	60.00
	1000		90.00
	1250		110.00
	1600		140.00

Packaging Details

NT00C: QTY: 180PCS; GW: 21KGS NW: 21KGS; MEAS: 35x25x22.5cm

NT00: QTY: 100PCS; GW: 21KGS NW: 20KGS; MEAS: 43x17x27cm

NT0: QTY: 72PCS; GW: 18KGS NW: 17KGS; MEAS: 37x27x20cm

NT1: QTY: 48PCS; GW: 21KGS NW: 20KGS; MEAS: 43x28.5x22cm

NT2: QTY: 36PCS; GW: 24KGS NW: 23KGS; MEAS: 38x31.5x24cm

NT3: QTY: 24PCS; GW: 22KGS NW: 21KGS; MEAS: 45x32x20.58cm

Prod Model:	RT16
Current:	4A-1600A
Voltage:	500V/690AC
Giggest Block Ability(Ka:	33ka
Working Temperature:	"-5°"to +40°
Protection Degree:	IP20
Installation Altitude:	≤2000m
Material:	Ceramic Body
Finish:	Chrome-Plated
Dimension:	785445
Name:	HRC Fuse Nh Size 2 Type Class Gl-Gg-120ka 200A 300
Breaking Capacity:	High
Usaga:	Low Voltage
Type:	Solar Fuse
Fusing Speed:	Fast
Fusing Device:	PV System
Standard:	High Quality Ce&TUV Certificate
