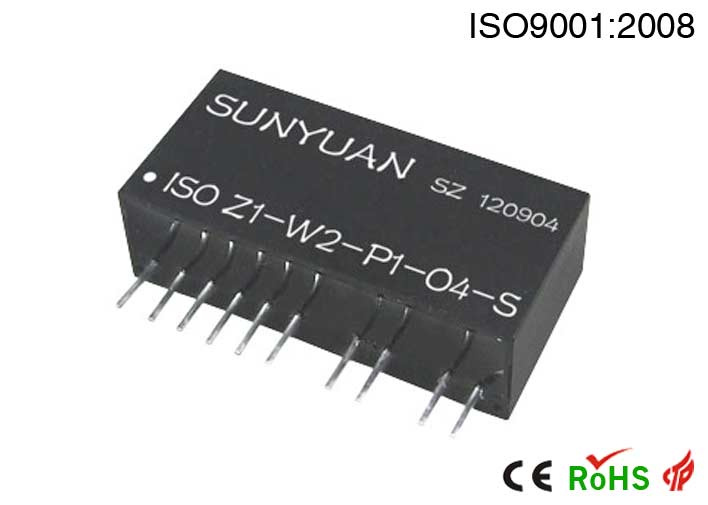

Rtd PT100/Cu100 to Current/Voltage Isolated Transmitter/Converter
| Price: |
Negotiable/Piece |
| Min Order: |
5/Piece |
| Pay Type: |
T/T,Western Union,Paypal,Money Gram |
RTD Pt100/Pt10/Cu100/Cu10 to Current/Voltage Signal Isolated Transducer/Transmitter
Characteristics:
Three-wire, four-wire or two-wire PT100/Cu50 thermal resistance signal input
Accuracy, Linearization error grade:0.2(Relative Temperature)
Built-in linear processing and long-term compensation circuit
Isolation Voltage: 3000VDC Three port: input/power/output
Auxiliary Power Supply:5V,12V,15V or 24VDC
International standard signal output:4-20mA/0-5V/0-10V etc
Small size, low cost, easy use and high reliability

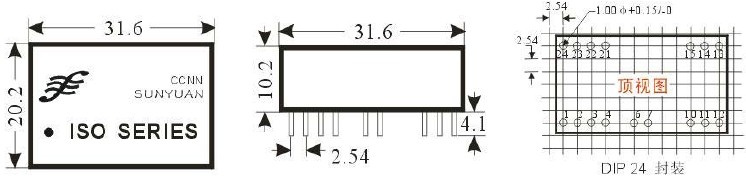

Standard DIP 24/SIP12 Pin, UL94V-0 package
Industrial temperature range: - 45ºC ~ + 85 ºC
Applications:
Temperature signal isolation, acquisition and transfer
Industry site high-precision temperature measure
Terminal resistance signal isolation and temperature control
Ground interference suppression
Temperature sensor signal converter to standard signal
Oil temperature measure and Alarm
Signal remote without distortion transmission
Power monitoring, medical equipment, temperature control isolation barrier

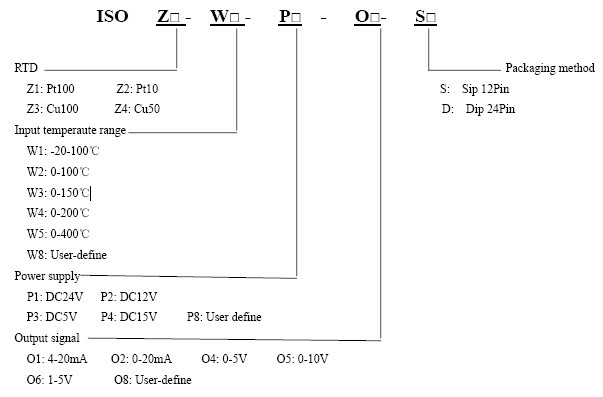

| Prod Model: |
ISO Z-W-P-O Series |
| Input: |
PT100/PT10/Cu100/Cu50 |
| Output: |
4-20mA/0-20mA/0-5V/0-10V/1-5V,etc |
| Isolation Method: |
Electromagnetic Isolation |
| Isolation Voltage: |
3000VDC |
