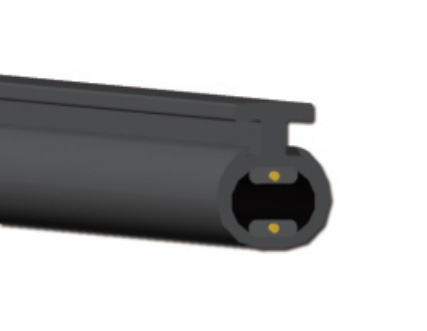

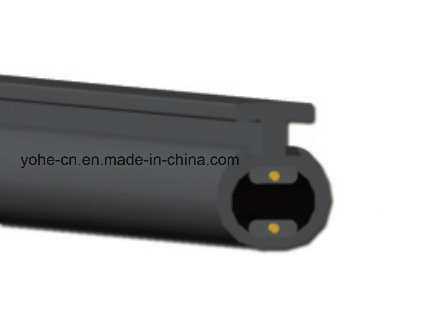

Rubber Integrated Sensor Tape for Roller Shutter

Product Description


rubber integrated sensor tape for roller shutter door window

Applications
Safety contact edge products are pressure senor products used on the opening and closing edge which can be easily extraded and sheared, It is widely used in automatic garage door, industrial gate, the courtyard door, gate, revolving door, sliding door, machinery and other equipment to protect personal security, etc.

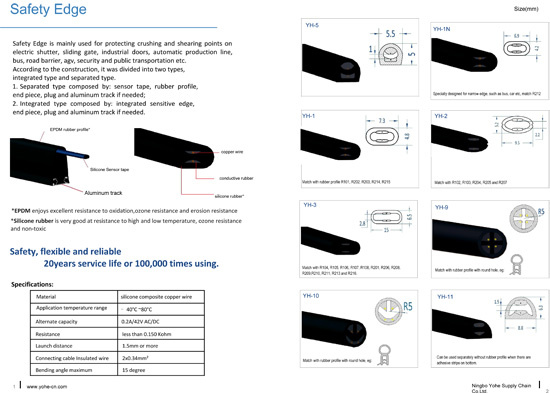

Technical parameters
Technical parameters: the product use the innovation of epdm and butadiene-acrylonitrile rubber mixed, to ensure its flexibility in the low temperature, Application temperature is from -25ºC to +60ºC. Resistance is generally < 150-500 Ω, launch distance is up to the products specification. The bending angle is up to 15 degrees, scleroscope hardness A60-65 degree.
Applications

Working principle

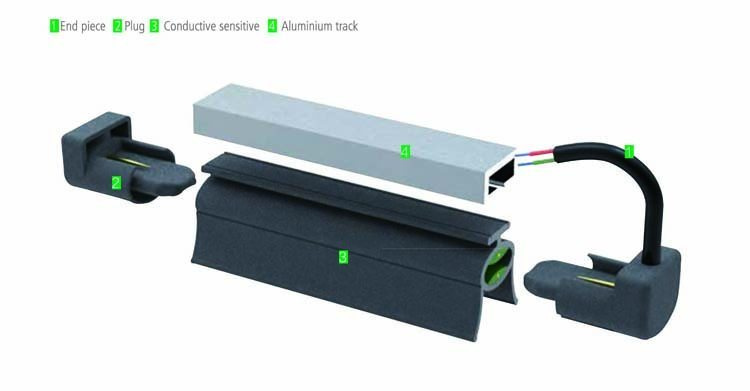

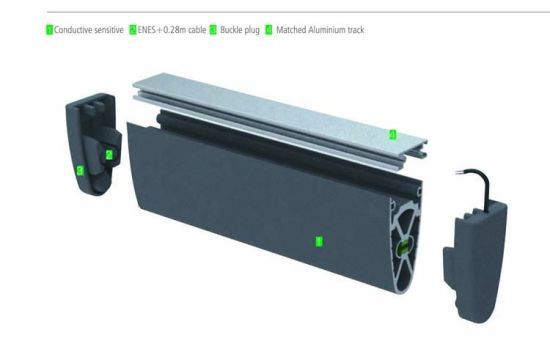

Safety edges series use different structure design, For example contact boundary internal can be divided into two or three collision the switch surface are separated by conductive adhesive and copper wire line with a specific distance, which was separated from each other with certain distance under static state. Finally, the safety edges are assembled by a terminal resistance, which can monitor the whole system. On one hand, this special design could prevent the short circuits and fittings problem, on the other hand, if the edges change, the resistance will prevent the danger immediately. Fixed end piece connection mode and waterproof plug buckle design make the installment more convenient, quickly.


Technical deta:
