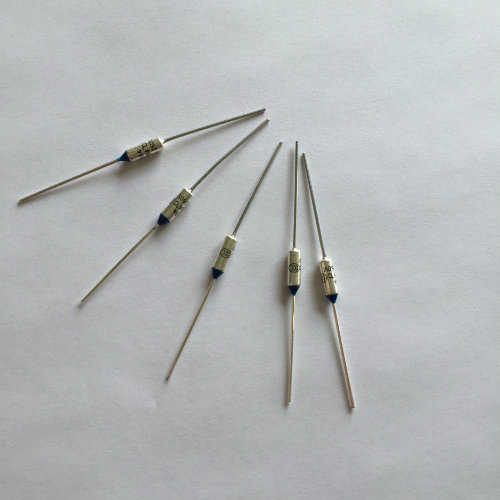

Ry-01 Series Metal House Radical Lead Thermal Fuse 250V 10A 15A 72-240'c

Name: Ry-01 Series Metal House Radical Lead Thermal Fuse 250V 10A 15A 72-240'c
Brand: all-electronics-online.com
SKU: 809457045
Availability: InStock
Rating: 4.6 (60 reviews)

Price:	US $ 0.08-0.3/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

RY01 series thermal fuse is a non-resetting protective device, which is used to prevent various electrical and heating appliance, dynamoelectric tools and industrial equipment from overheating. When the working temperature exceeds the rated value, the molten substance would cut the circuit rapidly and avoid the damage caused by overheating.

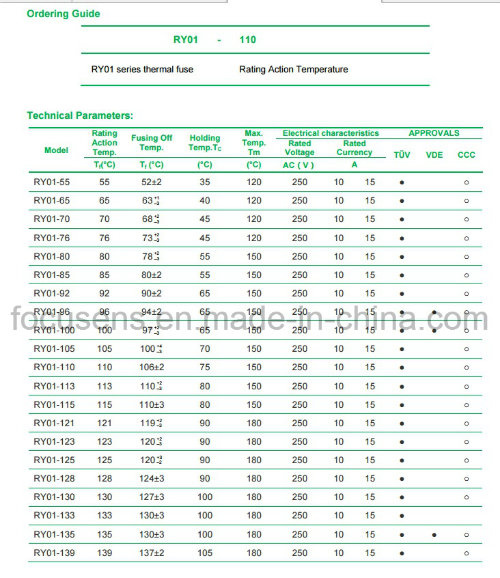

Specifications:

Typical Applications:	Features:
Fanner, Ventilator	High precision, non-resetting,
Smoke extractor	Precision and stable action temperature.
Sashing machine	Tiny size, metal shell
Juice extractor and blower etc.
Electric cooker
Micro-Wave Oven
Water heater,
Electric iron, Electric radiator etc.
Lighting appliance and game player etc.

Note: The rating action temperature is changeable. Please feel free contact with us for the details fo the all temperature scale table.

Relevant Products:

Contact US:

Focus Sensing and Control Technology Co.,LTD
Sales Manager
Cherry Chen
Tel: +86-551-69109668

Prod Model:	RY Series
Breaking Capacity:	High
Type:	Current Fuse
Usaga:	Machine Tool
Fusing Device:	Polymer Material Fusing off

Focusens is a ISO certified and patented company specially works in developing, producing and service of temperature sensors and thermal components.

With more than 15 years field experience, we are committed to provide quality and prompt delivery of temperature and humidity components, as well as custom design service in temperature humidity field.

Our activities covers all over the world, including Asia, Europe, America, Latin America, Australia and South Africa.

Our customers covers Important players such as Schneider, Oster, Haier, Lada, JAC etc.

Our main products including various temperature sensors and temperature sensing element, various output type humidity transducer, and temp. Humidity monitor and control units.

We provide professional design, manufacturing, and assembly, meanwhile accept OEM with customers design.

Contact us now for details and improve projects efficiency with our expertise.
