| Prod Model: |

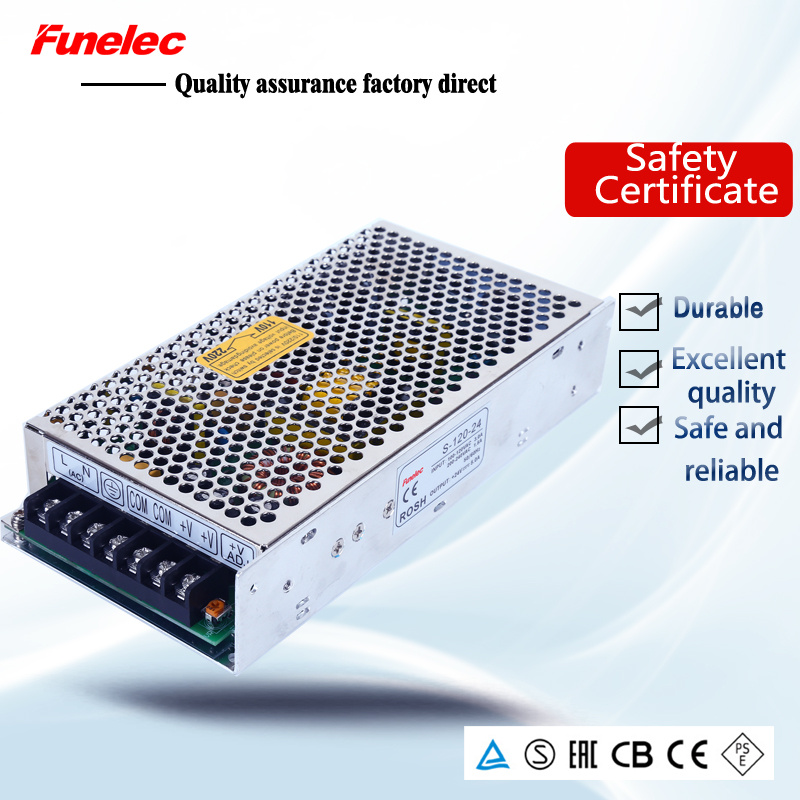

S-120-24 |
| Output Type: |
Single |
| Warranty: |
2 Years |
| Output Power: |
101 - 200W |
| Input Voltage: |
110-220V |
| Connection Mode: |
Series Switching Power Supply |
| Starting Mode: |
Self-excited Switching Power Supply |
| Voltage Regulating Mode: |
Frequency Modulation Type |
| Power Supplying System: |
Level 1 Power Distribution Equipment |
| Certification: |
CB |
| Brand: |
Funelec |
Product Description
Wenzhou Funelec Electric Co., Ltd. is a high-tech enterprise which is engaged in the design, development, production switching power series products. we are a professional manufacturer of power supplies ,all of our products have approved CE CB and ISO9001.
The EFC capacitors and our own transformers make our products have 3 years warranty,The payment terms which we accept L/C T/T westion union and paypal !
We get a good feedback from our customers ,what we want to do is make your business easy ,
We accept OEM and Sample order,MOQ IS 1PC .
Here take 30W for example !
| Model | S-120-5 | S-120-12 | S-120-15 | S-120-24 | S-120-48 |
| Output | DC Voltage | 5V | 12V | 15V | 24V | 48V |
| Rated Current | 24A | 10A | 8A | 5A | 2.5A |
| Current Range | 0~24A | 0~10A | 0~8A | 0~5A | 0~2.5A |
| Rated Power | 120W | 120W | 120W | 120W | 120W |
| Ripple & Noise (max.) | 100mVp-p | 125mVp-p | 125mVp-p | 150mVp-p | 150mVp-p |
| Voltage Adj. Range | 4.5~5.5V | 10.8~13.2V | 13.5~16.5V | 21.6~26.4V | 43.2~52.8V |
| Voltage Tolerance | ±2.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% |
| Line Regulation | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Load Regulation | ±1.0% | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Setup,Rise time | 1000ms, 30ms at full load |
| Hold time (Typ.) | 20ms at full load |
| Input | Voltage Range | 90 ~ 132VAC/170 ~ 264VAC selected by jumper or switch |
| Frequency Range | 47~63HZ |
| Efficiency(Typ.) | 76% | 80% | 81% | 83% | 84% |
| AC Current(Typ.) | 3.15A/115VAC 1.5A/230VAC |
| Inrush Current (Typ.) | COLD START 20A/115VAC 40A/230VAC |
| Leakage Current | |
| Protection | Over Load | 105 ~ 150% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed |
| Over Voltage | 5.75 ~ 6.75V | 13.8 ~ 16.2V | 17.25 ~ 20.25V | 27.6 ~ 32.4V | 55.2~64.8 |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed |
| Environment | Working Temperature | -10 ~ +60°c (Refer to "Derating Curve" ) |
| Working Humidity | 20~90% RH Non-condensing |
| Storage temp.& humidity | -20~+85°C, 10~95%RH |
| Temp. coefficient | ±0.03%/°C (0~50°C) |
| Vibration | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes |
| Safety & EMC (Note 4.) | Safety Standards | UL1012, UL60950-1, TUV EN60950-1, CCC GB4943 approved |
| Withstand Voltage | I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC |
| Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC/ 25°c / 70% RH |
| EMC Emission | Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3 |
| EMC Immunity | Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level, criteria A |
| Others | MTBF | 314.9K hrs min. MIL-HDBK-217F (25 °c) |
| Dimension | 199*98*38mm (L*W*H) |
| Packing | 0.65Kg; 20pcs/14.2Kg/0.8CUFT |
| Note | 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature. |
| 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. |
| 3. Tolerance : includes set up tolerance, line regulation and load regulation. |
| 4. The power supply is considered a component which will be installed into a final equipment. |
| The final equipment must be re-confirmed that it still meets EMC directives. |
