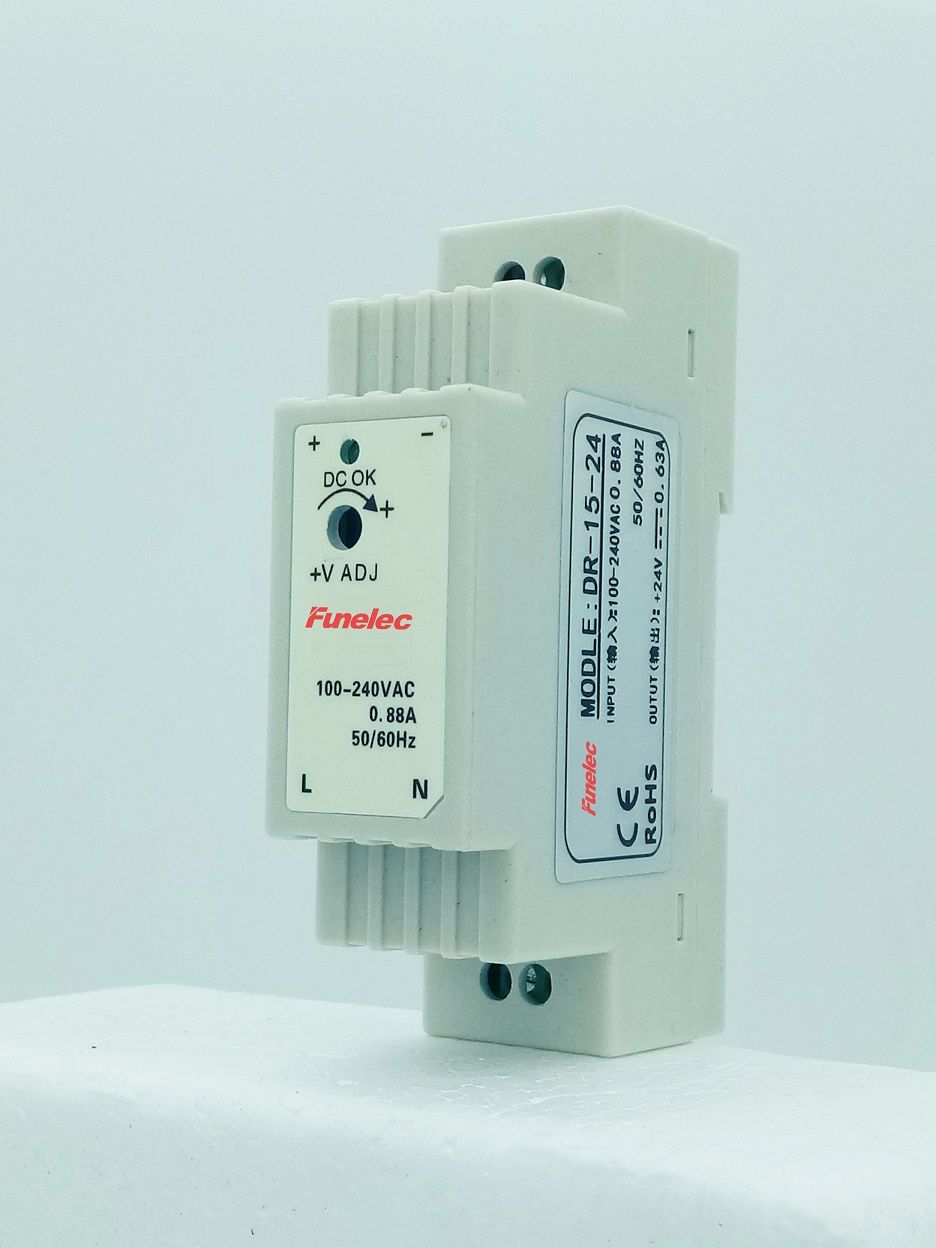

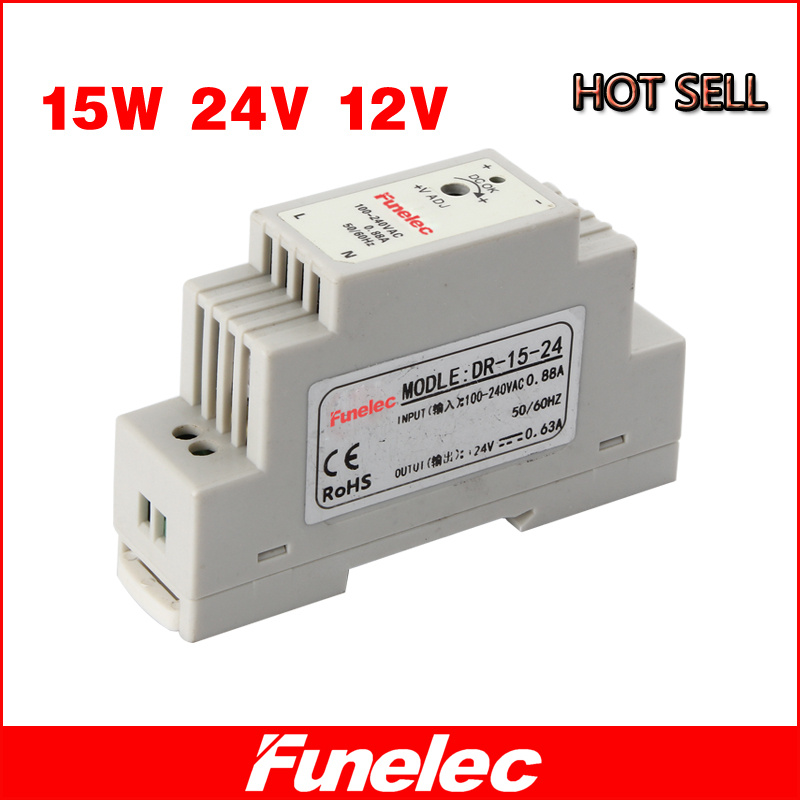

15W Single Output Industrial DIN Rail Power Supply DR-15 series
Features:
Universal AC input/ full range
Protections: Short circuit/ Over load/ Over voltage
Cooling by free air convection
Can be installed on DIN rail TS-35/7.5 or 15
Isolation class
LED indicator for power on
No load power consumption<0.5W
100% full load burn-in test| SPECIFICATIONS |
| OUTPUT | |
| Model | DR-15-5 | DR15-12 | DR-15-15 | DR-15-24 |
| DC Voltage | 5V | 12V | 15V | 24V |
| Rated Current | 2.4A | 1.25A | 1A | 0.63A |
| Current Range | 0-2.4A | 0-1.25A | 0-1A | 0-0.63A |
| Rated Power | 12W | 15W | 15W | 15.2W |
| Ripple & Noise | 80mVp-p | 120mVp-p | 120mVp-p | 150mVp-p |
| Voltage Adj. Range | 4.75-5.5V | 10.8-13.2V | 13.5-16.5V | 21.6-26.4V |
| Voltage Tolerance | ±2% | ±1% | ±1% | ±1% |
| Line regulation | ±1% | ±1% | ±1% | ±1% |
| Load regulation | ±1% | ±1% | ±1% | ±1% |
| Setup, Rise, Hold Up Time | 1000ms, 50ms/230VAC 1000ms, 50ms/115VAC at full load 70ms/230VAC 16ms/115VAC at full load |
| | |
| INPUT | |
| Voltage Range | 85 ~ 264VAC 120 ~ 370VDC |
| AC Current | 0.88A/115VAC 0.48A/230VAC |
| Efficiency | 77% | 84% | 83.50% | 85% |
| Inrush Current | COLD START 35A/115VAC 65A/230VAC |
| | |
| PROTECTION | |
| Over Load | 105%~160% rated output power |
| Protection type: Constant current limiting, recovers automatically after fault condition is removed |
| Over Voltage | 5.75-6.75V | 13.8-16.2V | 17.25-20.25V | 27.6-32.4V |
| Protection type: Shut off o/p voltage, clamping by zener diode |
| | |
| ENVIRONMENT | |
| Working Temp., Humidity | -20°~+60°; 20%~90% RH non-condensing |
| Storage Temp., Humidity | -40°~+85°; 10%~95%RH |
| Temp. Coefficient | ±0.03%/°(0~50°) |
| Vibration | 10~500Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Z axes, Mounting: Compliance to IE60068-2-6 |
| | |
| SAFETY | |
| Withstand Voltage | I/P-O/P: 3KVAC |
| Isolation Resistance | I/P-O/P: 100M Ohms / 500VDC/ 25°/ 70%RH |
| | |
| STANDARD | |
| Safety Standard | Design refer to UL60950-1,TUV EN60950-1,EN50178 |
| EMC Standard | Design refer to EN55011,EN55022,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11,EN55024,EN61000-6-2,EN61204-3, heavy industry level, criteria A |
| | |
| OTHERS | |

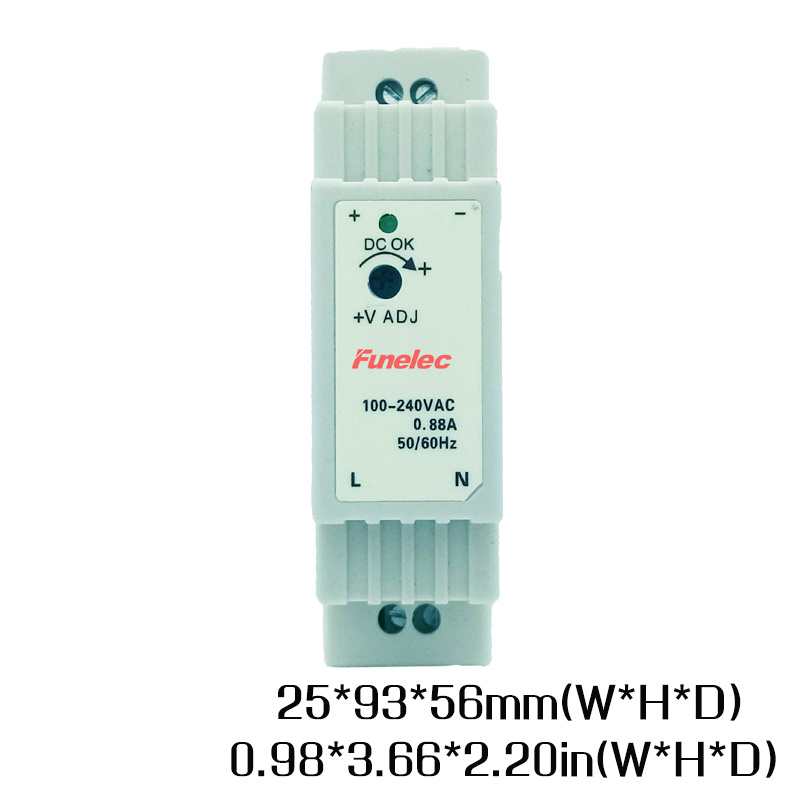

| Dimension | 25*93*56mm(W*H*D) |
| Weight | 0.1Kg |
| Packing | 140pcs/15KG/0.92CUFT |
| | |
| NOTE | |
| 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25° of ambient temperature. |
| 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μ & 47μ parallel capacitor. |
| 3. Tolerance: includes set up tolerance, line regulation and load regulation. |
| 4. The power supply is considered a component which will be installed into final equipment. The final equipment must be re-confirmed that it still meets EMC directives. |
