| Prod Model: |
WB-LC-64 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Conductor: |
Solid Bare Copper |
| AWG: |
23 |
| Insulation: |
PE(Skin-Foam-Skin) |
| Jacket: |
PVC/Lszh/LDPE |
| Packing Way: |
Easy Pull Box, Wooden Drum |
| Application: |
LAN Cable |
| Conductor Material: |
Copper |
| Certification: |
VDE |
| Cover Material: |
Cmx/Cm/Cmr/LSZH/LDPE |
| Type: |
Cat7 |
| Model: |
Cat7 S/FTP Data Cable |
| Brand: |
Webit or OEM |
Product Description
Appliacation
1. Suitable for structured premised cabling;
2. For transmission of digital and analogue voice and data signals
3. Especially suitable for all Class F applictions;
4. ISDN, Ethernet 10 Base-T, Fast Ethernet 100 Base-T, Gigabit Ethernet 1000Base-T, 10G Base T(IEEE802.3)
5. Token Ring4/16 Mbit/s, TP-PMD/TP/DDI 125bit/s, ATM155Mbit/s(IEEE 802.5)
Electronic Characteristics
Impedance: 4-100MHz 100± 15(ohms).
100-200MHz 100± 22(ohms).
200-1000MHz 100± 32(ohms).
Max. Conductor DC Resistance 20º C: 8.4(ohms/100m)
Resistance unbalance(%): Max2.5
Pair-to-Ground Capacitance Unbalance: 330(Pf/100m)
Transfer Impendance: Max 10 mohms/m@100MHz.
Coupling Attenuation: Min 80 Db.
Installation temperture: 0-50º C.
Operation temerture: -20~60º C| Assortment | Shieded | Describe |

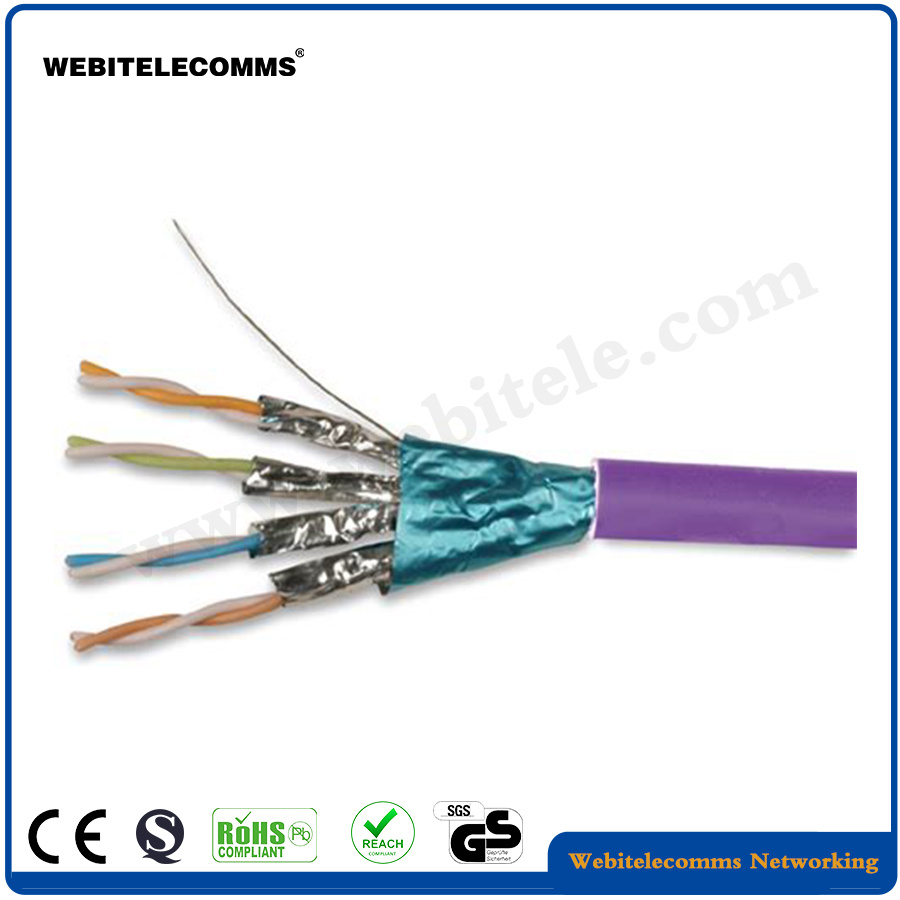

| Cat 7 Installation cable | S/FTP Shielded | S/FTP Shielded Cat 7 Twisted Pair Installation cable |
| Conductor |
| Conductor | Insulation | Qty of Conductor | Color code | Indiviual pair shied | Overall shield | Drain wire |
| Solid Bare Copper 23AWG | PE(skin-Foam-Skin) | 8,twisted in 4 pairs | blue-white, orange-white, green-white, brown-white | AL-Foil, 100%coverage,foil face out | Tinned copper braid | None
|
| | Outer jacket information | |
| Item no | Outer jacket | overall diameter(mm) |
| D195-P | CMX | 8.3±0.3 |
| D195-C | CM | 8.3±0.3 |
| D195-R | CMR | 8.3±0.3 |
| D195-L | LSZH | 8.3±0.3 |
| D195-E | LDPE | 8.3±0.3 |
Sample show
