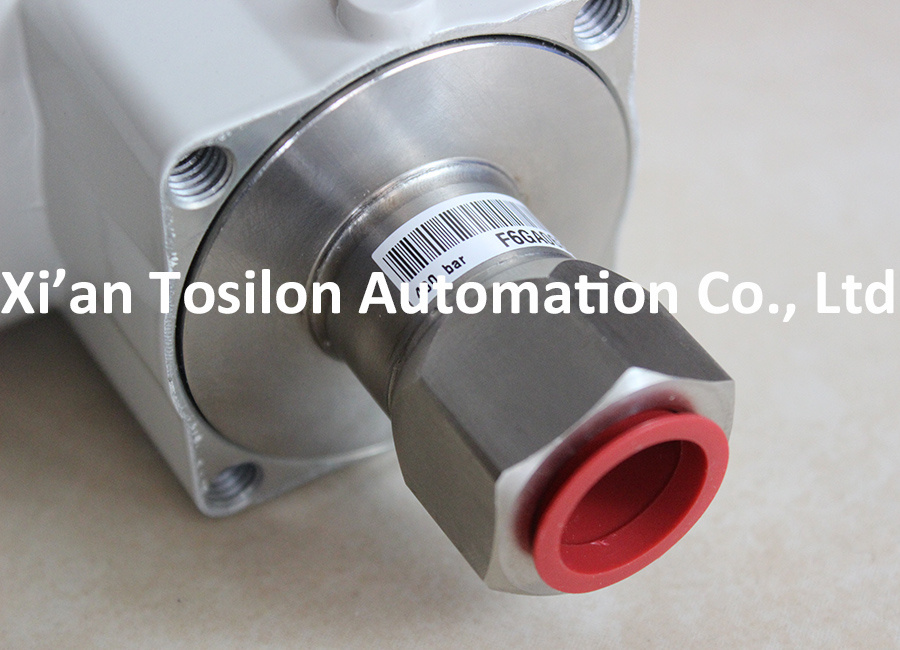

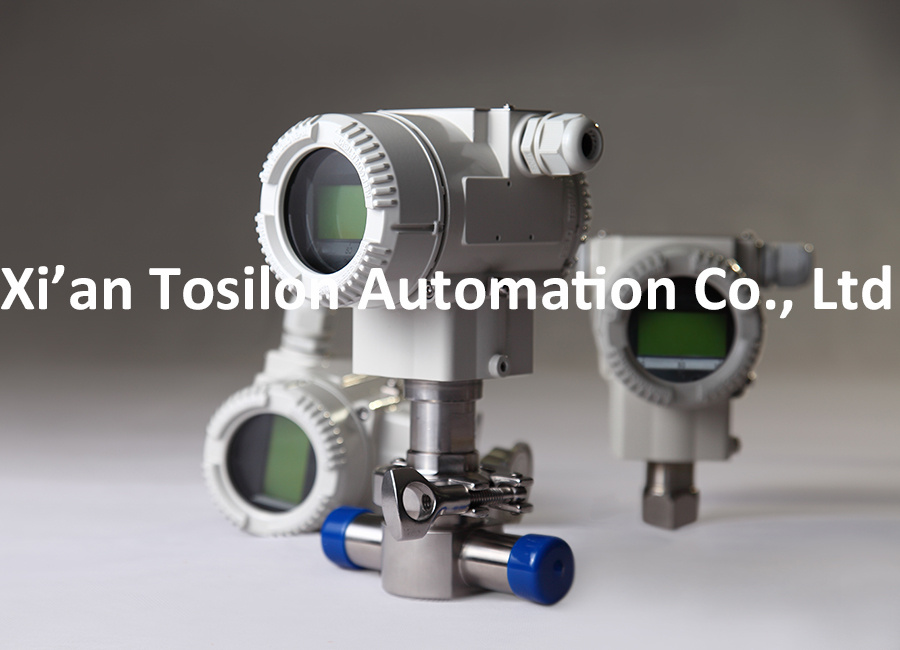

Sanitary Type Low Pressure Transmitter with 4-20mA Via Hart (ATEX)
| Price: |
US $ 400-1000/Piece |
| Min Order: |
2/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
RP1002 |
| Overpressure Effects: |
0.05% X Span |
| Stability: |
0.1% X Span/3 Years |
| Power Supply Effects: |
0.001% / 10V (12~24V DC) |
| Up-Time: |
<15s |
| Ambient Temperature Limits: |
-40 to 85 Deg. C |
| Fill Fluid: |
Silicone Oil / Fluorinated |
| Amplifier Housing: |
Aluminum with Epoxy Resin Coat |
| Output: |
2-Wire 4-20mA Via Hart |
| Electrical Connection: |
M20X1.5 |
| Weight: |
1.6kg |
| Structure Type: |
Monocrystalline Silicon |
| Accuracy Grade: |
0.075%F.S |
| Pressure Range: |
0 - 100PA~2MPa |
| Certification: |
Atex |
Product Description
Tosilon Sanitary type Low Pressure Transmitter with 4-20mA via HART (ATEX Approved)Design and Manufacturing according to ATEX StandardGeneral DescriptionThe high performance pressure transmitter RP1002/3-A is suitable to measure liquid, gas, or
steam flow as well as liquid level, density and pressure. RP1002/3-A outputs a 4-20mA DC signal
corresponding to the measured pressure. The key feature include quick response, remote set-up
using communications, self-diagnostics and optional status output for pressure high/low alarm.m.
Span & Range LimitsSpan/
Range Limits | kPa | psi | bar | Kgf/cm2 |
| C/S | Span | 2~40 | 0.29~5.8 | 0.02~0.4 | 0.02~0.4 |
Range
Limits | -40~40 | -5.8~5.8 | -0.4~0.4 | -0.4~0.4 |
| D | Span | 2.5~250 | 0.3625~36.25 | 0.025~2.5 | 0.025~2.5 |
Range
Limits | -100~250 | -14.5~36.25 | -1~2.5 | -1~2.5 |
| F | Span | 30~3000 | 4.35~435 | 0.3~30 | 0.3~30 |
Range
Limits | -100~3000 | -14.5~435 | -1~30 | -1~30 |
| G | Span | 0.1~10MPa | 14.5~1450 | 1~100 | 1~100 |
Range
Limits | -0.1~10MPa | -14.5~1450 | -1~100 | -1~100 |
| H | Span | 0.21~21Mpa | 30.45~3045 | 2.1~210 | 2.1~210 |
Range
Limits | -0.1~21MPa | -14.5~8000 | -1~210 | -1~210 |
| I | Span | 0.4~40MPa | 58~5800 | 4~400 | 4~400 |
Range
Limits | -0.1~40MPa | -14.5~5800 | -1~400 | -1~400 |
Span/
Range Limits | kPa | psi | bar | Kgf/cm2 |
| M | Span | 2.5~250 | 2.5~250 | 0.025~2.5 | 0.025~2.5 |
Range
Limits | 0~250 | 0~250 | 0~2.5 | 0~2.5 |
| O | Span | 30~3000 | 30~3000 | 0.3~30 | 0.3~30 |
Range
Limits | 0~3000 | 0~3000 | 0~30 | 0~30 |
EMC Performance Table| Items | Test Items | Basic Standard | Test Condition | Performance Level |
| 1 | Radiated Interference (Housing) | GB/T 9254-2008 | 30 MHz~1000 MHz | OK |
| 2 | Conducted Interference
(DC Power Port) | GB/T 9254-2008 | 0.15 MHz~30 MHz | OK |
| 3 | Electrostatic Discharge (ESD)
Immunity | GB/T 17626.2-2006 | 4kV (Line)
8kV (Air) | B |
| 4 | RF Electromagnetic Field
Immunity | GB/T 17626.3-2006 | 10V/m (80 MHz~1 GHz) | A |
| 5 | Frequency Magnetic Field
Immunity | GB/T 17626.8-2006 | 30A/m | A |
| 6 | Electrical Fast Transient Burst
Immunity | GB/T 17626.4-2008 | 2kV/(5/50ns, 5kHz) | B |
| 7 | Surge Immunity | GB/T 17626.5-2008 | 1kV (Line to Line)
2kV (Line to Ground)
(1.2us/50us) | B |
| 8 | Conducted Interference
Immunity induced by RF Field | GB/T 17626.6-2008 | 3V (150 KHz ~ 80 MHz) | A |
Dimensions
For more information, please contact Tosilon
