Dynamic Pressure Sensor for Well Testing
| Price: |
US $ 1000/Piece |
| Min Order: |
2/Piece |
| Pay Type: |
T/T,Western Union |

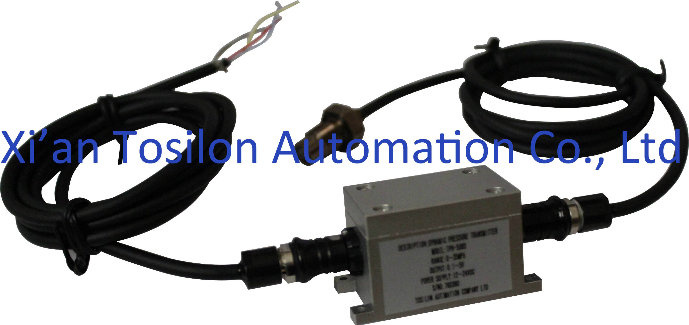

Tosilon Dynamic Pressure Sensor for Well TestingDesign and Manufacturing according to Military StandardGeneral DescriptionModel TPH500 is a rugged, piezoresistive pressure transducer for high pressures which is available in ranges from 0 to 100 MPa.
Tosilon pressure transducers adopt four-arm strain gage bridge diffused into a sculptured silicon diaphragm for maximum sensitivity and wideband frequency response. Self-contained hybrid temperature compensation provides stable performance over the wide temperature range of -40°C ~125°C. The transducers also advanced in excellent linearity, high shock resistance, and high stability during temperature transients.
TPH500 is widely used for high pressure applications such as studies of structural loading by shock waves resulting from explosive blasts, pulsations in hydraulic and combustion systems.
Brief Technical Parameters Medium Measured: Liquids or Gas that are compatible with silicon, glass, Stainless Steel, epoxy glue.
| Model | Standard Measuring Range | Natural Frequency |
| TPH507GS | 2 / 4 / 6 MPa | 280KHz~400KHz |
| TPH507GM | 2 / 4 / 6 / 8 / 10 / 15 / 25 MPa | 280KHz~400KHz |
| TPH507GL | 0.2 / 0.5 / 1 / 2 MPa | 60KHz~240KHz |
| Rise Time: Microsecond Class |
| Non-linear Precision | 0.2% F.S | Full Scale Output: | Min. | 30mV |
| Hysteresis Repeatability | 0.1% F.S | Normal | 80mV |
| Zero Temperature Coefficient | 2x10-4 F.S / Deg. C; 5x10-4 F.S / Deg. C | Max. | 130mV |
| Sensitivity Temperature Coefficient | 2x10-4 F.S / Deg. C; 5x10-4 F.S / Deg. C | Input / Output Impedance: | Min. | 4kΩ |
| Zero Time-Drift ( | 0.1; 0.2 | Normal | 5kΩ |
| Zero Position Output | 0±5mV | Max. | 6kΩ |
For more information, please contact Tosilon
Your Global Partner for Automation
www.tosilon.com
| Prod Model: |
TPH 500 Series |
| Natural Frequency: |
1>1000 kHz |
| Non-Linear Precision: |
0.2% F.S |
| Hysteresis Repeatability: |
0.1% F.S |
| Zero Temperature Coefficient: |
2X10-4 F.S / Deg. C; 5X10-4 F.S / Deg. C |
| Sensitivity Temperature Coefficient: |
2X10-4 F.S / Deg. C; 5X10-4 F.S / Deg. C |
Zero Time-Drift (
| 0.1; 0.2 |
|
| Zero Position Output: |
0+/- 5mv |
| Storage Tempt. (Deg. C): |
-55~130 |
| Compensation Tempt. (Deg. C): |
10~60; as Required |
| Military Customization: |
Available |
| Component: |
Integration |
| For: |
Dynamic Pressure Transmitter |
