60kva-80kva Solar power generator inverter with mppt charger in built
The Feature of our product.Excellent microprocessor control guarantees superior quality and reliability
.High efficiency C.R.G.O. technology with output isolation transformer
.100% unbalance load design with lower energy loss
.Built-in super smart charger with battery capacity real-time auto-detection & auto-adapt
.Auto-adjustable 1~20A charging current
.DC cold start function
.ECO mode operation for energy saving
.Communication port on RS232 / RS485, SNMP adapter (optional)
.Adaptable with harsh environment of electric power, and compatible with generator mod
Application- Computer room
- Data center
- Commercial facility
- Telecommunication
- Industry
- Precision instrument
- Intelligent instrument
The parameter of the product| MODEL | LIBERTE 10k-30K(L) | LIBERTE 30K(L) | LIBERTE 40-60K(L) | LIBERTE 80K-120K(L) |
| Phase | 3-phase in / 3-phase out |
| VA Rating | 10KVA/8KW | 15KVA/12KW | 20KVA/16KW | 30KVA/24KW | 40KVA/32KW | 50KVA/40KW | 60KVA/48KW | 80KVA/64KW | 100KVA/80KW | 120KVA/96KW | 160KVA/128KW | 200KVA/160KW |
| Display | LCD or LED optional |
| Casing Material | Metal |
| PV INPUT | MPPT SOLAR CHARGER CONTROLLER |
| Max. input voltage | 220Vdc-440Vdc | 440Vdc-720Vdc |
| Max. current | 20A-50A | 20A-50A |
| INPUT |
| Phase | 3φ 4W + PE |
| Connection | Three phase four wire plus safty ground wire |
| Voltage | 304 ~ 478 Vac |
| Current THD | < 3% |
| Frequency | 45Hz ~ 65Hz |
| OUTPUT |
| Phase | 3φ 4W + PE |
| Voltage | 380V ± 1% on inverter mode; 380V ± 10% on city mains |
| Frequency | 50/60Hz ± 0.5% |
| Waveform | Pure Sinewave |
| Efficiency | > 98% in mains mode; > 86% in invereter mode |
| Transfer Time | ≤ 1.5ms |
| Current THD | < 3% (Battery Mode) |
| Instant Reaction | When loading changes between 0 and 100%, voltage change < 3% |
| Overload capability | 110%, close the device in 30 seconds |
| 120%, close the device in 2 seconds |
| Overload at city mains, buzzer alarms |
| BATTERY |
| Standard Model | Battery Type | Lead-Acid Maintenance-Free Battery |
| Voltage | 192Vdc (16 x 12Vdc) | 384Vdc (32 x 12Vdc) |
| Recharge Time | 3-4 hours recover to 90% capacity |
| Charging Current | Default: 1.0A ± 10%; Max.: 2.0A ± 10% |
| Charging Voltage | 220Vdc ± 1% | 440Vdc ± 1% |
| Over Charge Ability | 10 minutes at 100% ~ 125% loading; ≥ 1 minute at 125% ~ 150% loading |
| Long-run Model | Battery Type | Depending on applications |
| Charging Current | 15 ~ 45A (Can adjust with software and LCD control button) |
| Backup Time | Depends on Capacity and Volume of External Batteries |
| Charging Voltage | 220Vdc ± 1% (based on 16 pcs batteries) | 440Vdc ± 1% (based on 32 pcs batteries) |
| PROTECTION |
| Over Load Protection | Yes |
| Short Circuit Protection | Alarms sounds continously for 20 seconds, then UPS is off |
| Input High/Low Voltage Protection | Yes |
| Low Battery Alarm | Yes |
| Battery High/Low Voltage Protection | Yes |
| Battery Anti-polarity Protection | Yes |
| High Temperature Protection | Yes |
| PHYSICAL |
| Long-run Model | Dimension (W*D*H) | 610*284*760mm | 710*384*862mm | 700*445*1105mm | 830*542*1715mm | | 830*1082*1715mm |
| Net Weight | 132kg | 142kg | 152kg | 174kg | 192kg | 214kg | 214kg | 257kg | 288kg | 317kg | 356kg | 380kg |
| ENVIRONMENTAL |
| Noise | < 45 db (1 Meter) |
| Temperature | 0 ~ 40ºC |
| Humidity | 20% ~ 90% (non-condensing) |
| MANAGEMENT |
| Smart RS-232/USB | Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7/8, Linux, Unix, and MAC |
| Optional SNMP | Power management from SNMP manager and web browser |

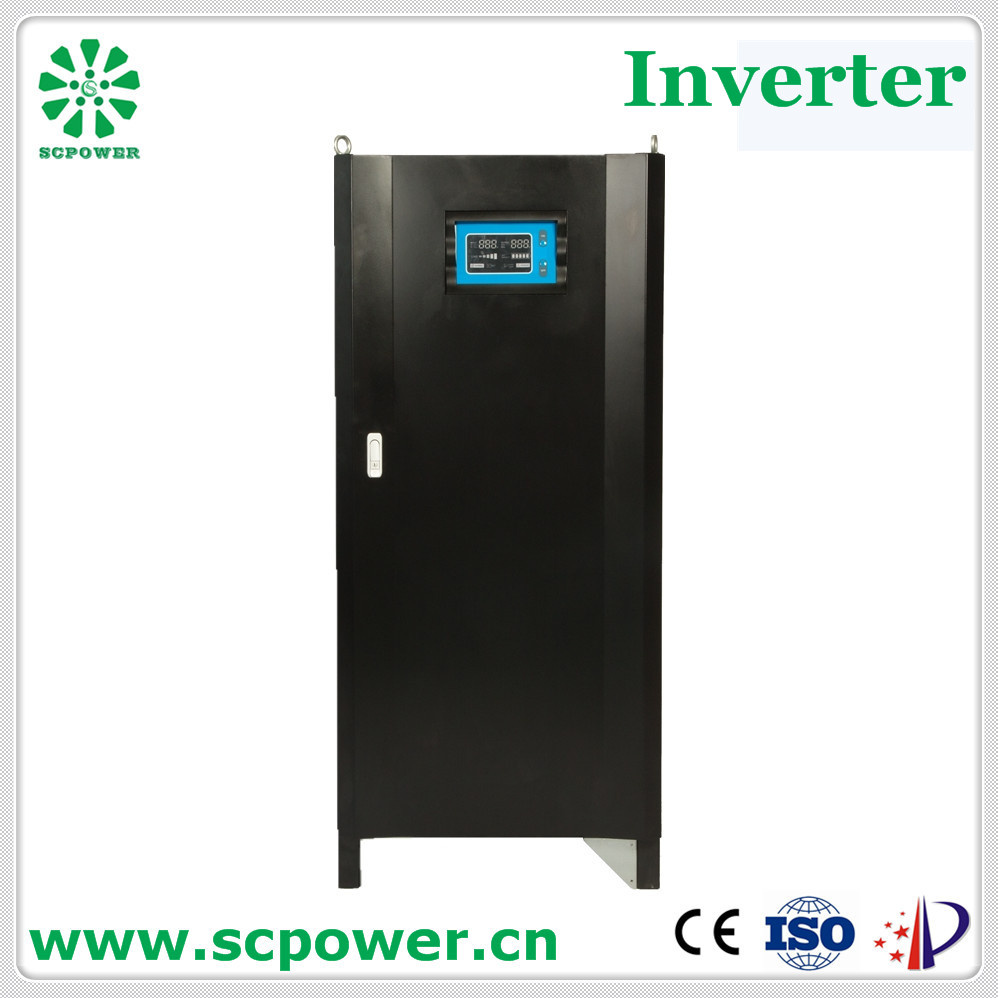

Product picture
Package&ShippingRegular packing: standard export carton or standard export carton with wood pallet.
Customized packing: Please kindly show us your carton design and packing requirement.
Shipping and Transportation
We promise to offer you rapid, economy, safe transportation service
• Express service
• Sea transportation service
• Railway transportation service
If you are not sure which way is the best or cost-effected for your order, please feel free to inquiry us.
Company Profile
We believe"Superiority Catures Potency"
Founded in 2002,Foshan SC Power Technology Ltd. SCP is a National key support High-Tech Enterprise which integrated with R&D, production and marketing of Solar power system products.
• We are factory
• 14 years experience on solar inverter system and UPS system
• Master core technology
• Advanced inspection equipments
• Perfect quality management system
• We obtains many technology patents
• All our products pass CE,ISO9001, Environmental Management System
Our Service
• Strict Quality Control Service: we promise inspect every machine before packing
• Software upgrade service
• Free provides of spare parts within warranty
• Online/Onsite training of installation, debugging, maintenance, reparation, etc.
• Consolidation Service( only peripherals of our products)
• Promotion Support
• After sale services
FAQQ1. Can I have a sample order ?A: Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit ?A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order?A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on product?A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?A: Yes, we offer 1-2 years warranty to our products.
Q8: How to deal with the faulty?A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
