SC/UPC/APC fiber optic/optical connector for FTTH solutions
SC Fiber Optic Connectors

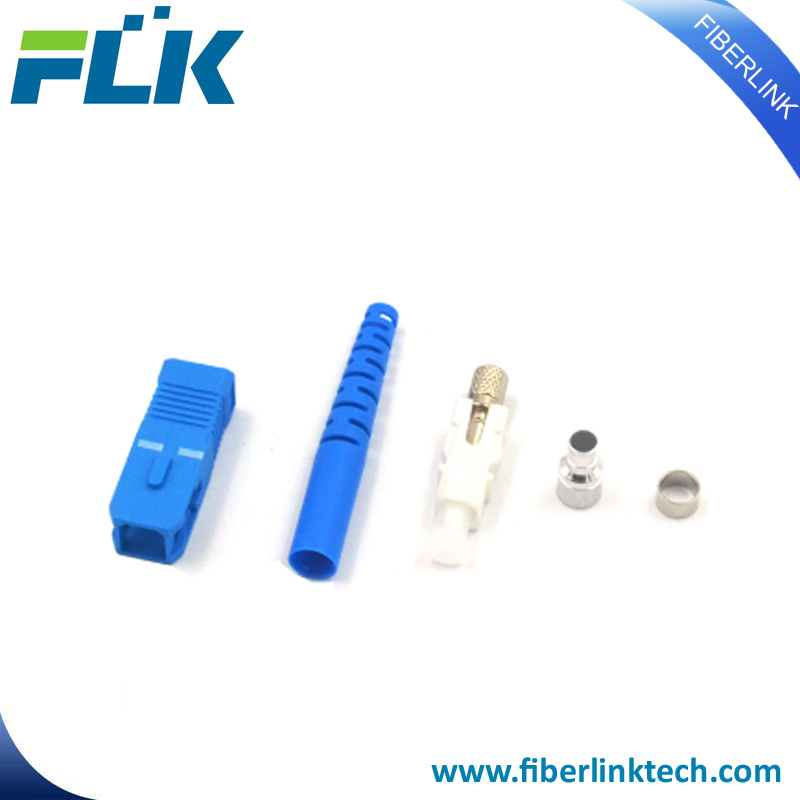

SC Fiber Optic Connector is a push pull type, gives an audible click when mates into its adaptor and can be tuned in 4 positions to provide the lowest insertion loss. It comprises of a body with ceramic ferrule/spring/crimp barrel assembly plus a crimp over sleeve and rubber boot. These connectors are suitable for, 0.9mm and 2-3mm cables. The connector is precision made to demanding specifications. The combination of a ceramic ferrule with precision polymer housing pro-vides consistent long-term mechanical and optical performance.
Features:
High quality ceramic components and Material
End-face geometry requirement complies to Telcordia GR-326-CORE
100% tested on optical performance (Insertion Loss & Return Loss)

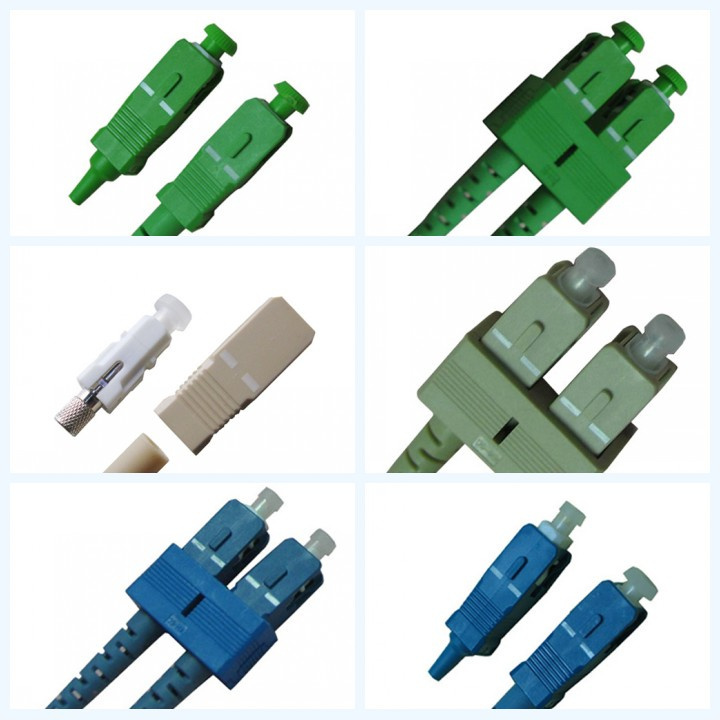

Simplex, duplex and higher core densities
900 micron, 2mm, 3mm cable applications
Details:
Connector Ferrule | Ceramic |
Alignment Sleeve | Ceramic |
Connector Body | UL 94V-0 rated Thermoplastic to meet standard flammability ratings |
Crimp Insert/Crimp Tube | Nickel-Plated Brass/Thermoplastic Elastomer Polymer |
Dust Cap | Nylon or PVC |
Strain Relief Boot | Flame retardant (UL-Rated 94-V0) polymer |
Connector Style | SC, FC, ST, LC, MTRJ, |
Polish | PC, UPC, APC |
Capillary Diameter Tolerance | 126 ± 0.5μm(Single Mode), 127 ± 0.5μm (Multimode) |
Ferrule Diameter | 2.5 ± 0.001mm(FC,SC,ST),1.25± 0.001mm (LC) |
Specifications:
Item | Single mode | Multimode |
PC | UPC | APC | 62.5/125 | 50/125 | 50/125 10G |
Insert Loss/connector (single Fiber) | 0.3dB Max. (0.2dB typ.) | 0.3dB Max. (0.2dB typ.) |
Return Loss | ≥45 dB | ≥50 dB | ≥60 dB | N.A |
Insert Loss/MTRJ Connector | 0.5dB Max. (0.45dB typ.) | 0.5dB Max. (0.45dB typ.) |
Pull Strength | ≥98N | ≥98N |
Ordering Information:
1,Connector type : SC,LC,FC,ST,MTRJ
2,Polish: UPC ,PC,APC
3,Mode:Singlemode,Multimode
4,Fiber Count: Simplex or Duplex
5,Connector boot diameter: 0.9mm,2.0mm or 3.0mm

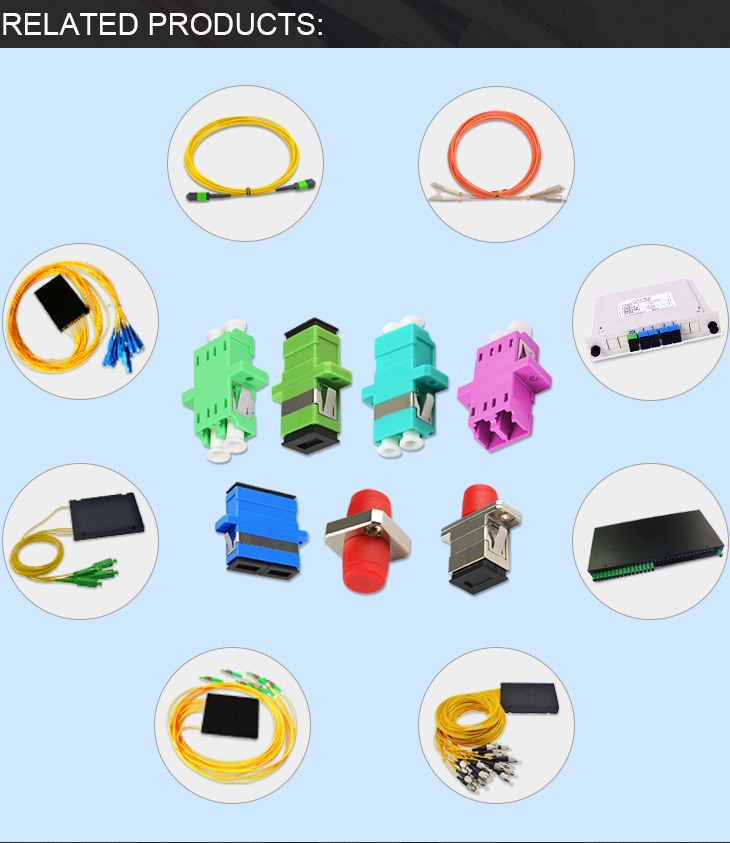

Related productsOur fiber patch cord production line:

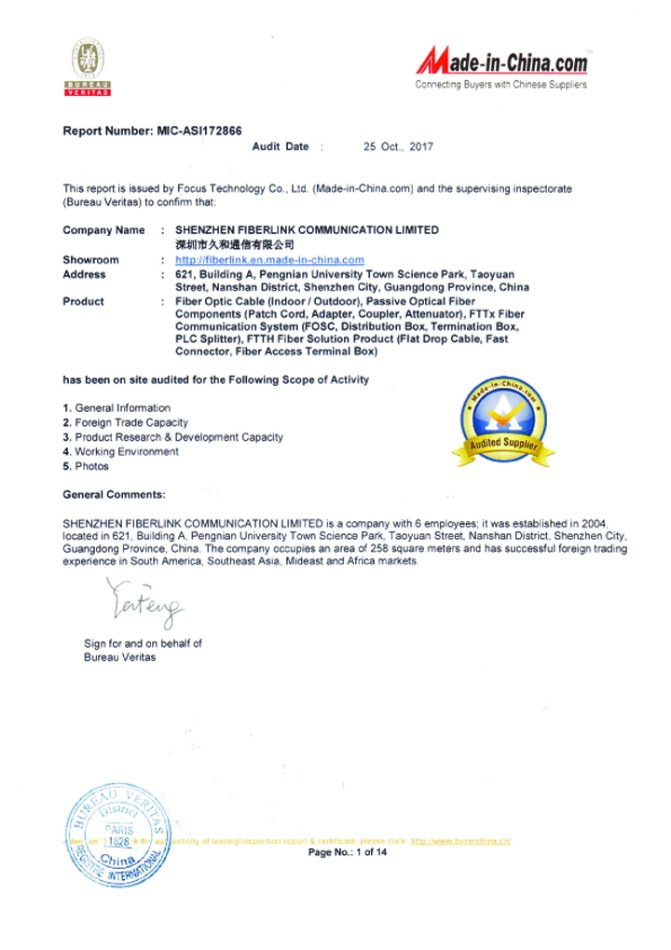

Certifications
