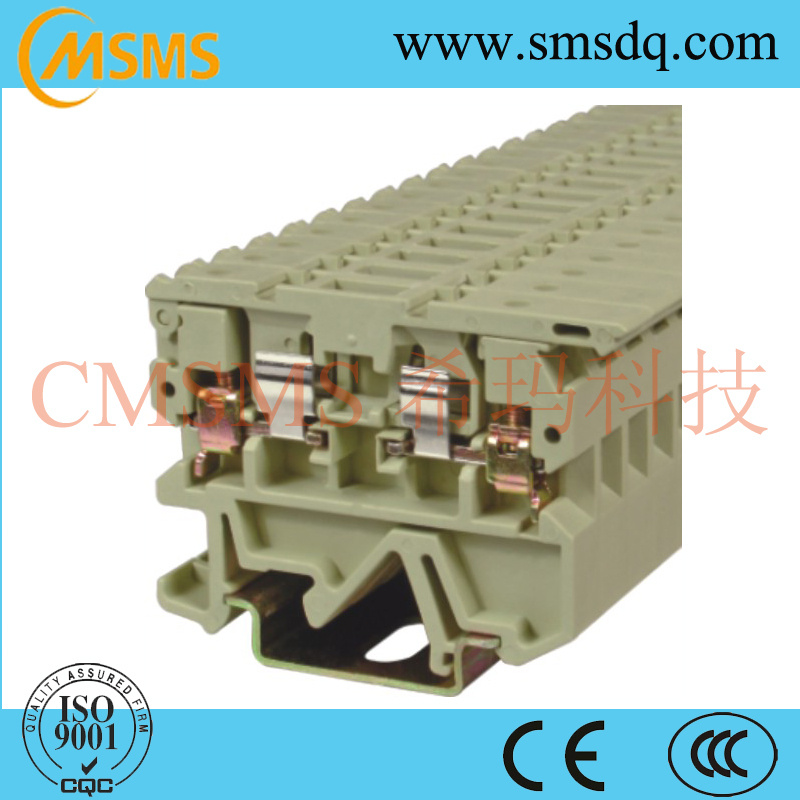

Screw Cage Fuse Terminal Blocks (STK-2.5RD / STK-2.5RD/X)

Name: Screw Cage Fuse Terminal Blocks (STK-2.5RD / STK-2.5RD/X)
Brand: all-electronics-online.com
SKU: 606991384
Availability: InStock
Rating: 5 (61 reviews)

Price:	US $ 1-2/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	500/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	STK series screw cage fuse terminal blocks
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Environmental Protection:	General
Shape:	Rectangle
Application:	Battery
Contact Termination Form:	Welding Connection
Connection Mode:	Push-Pull Connection

Product Description

These 600 V, 30 A DIN-rail mountable fuse blocks are available with a long lasting neon indicator light for quick troubleshooting. The permanently attached pivoting fuse door simplifies and speeds fuse replacement without using tools.

ITEM NO.	STK-2.5RD	ST1-2.5RD/X
Order No.	06012	06060
Dimension
Width x Thickness x Height (mm)	58.5/8.0/43.5	58.5/8.0/43.5
Screw (mm)	M3	M3
Torque (Nm)	0.5-0.7	0.5-0.7
Stripping Length (mm)	10	10
Rated data
Voltage Rating (V) Current Rating (A)	660	660
Power-frequency withstand voltage	6.3	6.3
Wire section (mm² )	2.5	2.5
Connecting capacity
Single wire	1.0-4	1.0-4
Multistrand wire	1.0-2.5	1.0-2.5
Multistrand wire with terminal

Zhejiang SMS Technology Co., Ltd is a professional manufacturer of solar mounting system, Electric connection & relative products. Our main products are Terminal block, Piercing connector, Connection box, DIN rail, Fan and Ventilate filter, etc. For passed ISO9000 many years, we always concentrate to manufactures of Electric connection and relative products, energetically explore potential markets worldwide. Mostly of our products are approved by CE, RoHS, CCC, UL, etc...And enter to international markets.

At the beginning we enter the electric connection industry, we keep our eye on produce High quality products and offer More competitive products to our customers.

We adopt advanced technologies and high quality material to offer more than 20 series products in electric distribution system, power control system and cable connection, etc...Including SKJ series terminal block, ST1 series spring connector, Insulation piercing connector, DIN rail, Fan & ventilate filter, electric metering box, multipurpose terminal block and relative accessories & tools.

Our products are widely applied in electric & electronic industry, electric equipment, Industrial automation, street lighting and power control system in traffic and transportation, posts & telecommunication, petrol chemical industry, industrial building machine-building, etc.

Zhejiang SMS technology Co., Ltd. Established more than 40 agents and service parters all round China and keep expanding international market. We accept OEM/ODM order from oversea customers. We believe our products and believe customers will chosen our products as their best choice in electric connection field.
