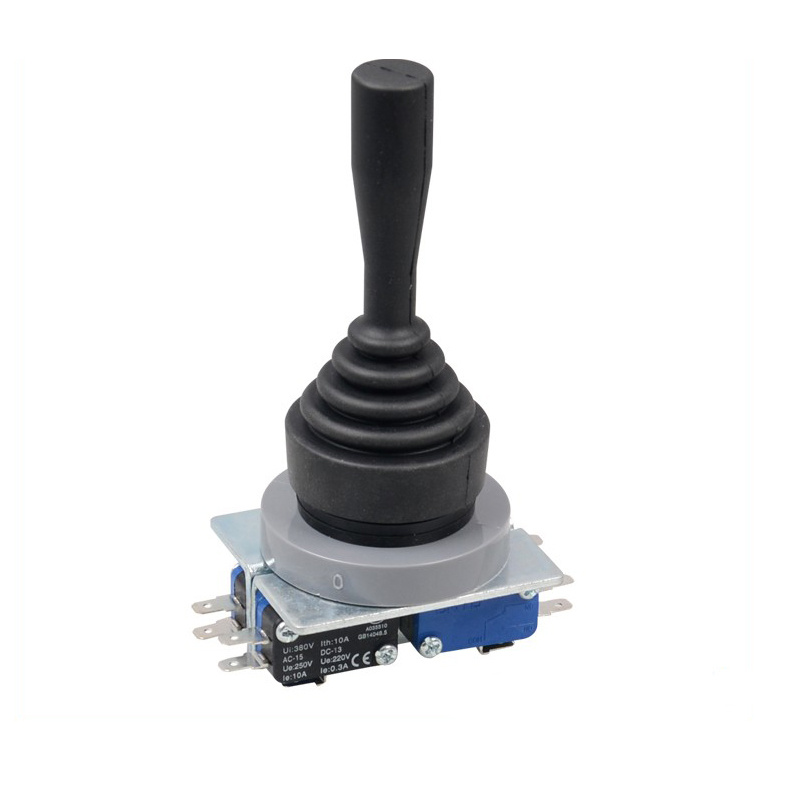

Seal Round Joystick Switch Cmrsn-304

Name: Seal Round Joystick Switch Cmrsn-304
Brand: all-electronics-online.com
SKU: 834966295
Availability: InStock
Rating: 4.6 (51 reviews)

Price:	US $ 1/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Four directions to handle the lever: upward,rightward,downward and leftward smoothly&swiftly
Three alternatives of movement are attainable in each direction:Stay put,spring return and blockade-enforcing
Rubber bushing is waterproof,oil-resistant and dustpreventive

Model No.	CMRSN-304
Name	Electric Cross Joystick Switch
Type	Round/Square/Seal Round/Seal Square
Mounting diameter	Φ30m/m
Contact	Sliver contact
No.of contact Blocks fitted	1-4
Actuating keys	Stay put or spring return or blockade-enforcing
Type of contact blocks fitted	None 1NO 2NO 1NC 2NC 1NO-1NC
Mechanical life	≥1,000,000
Degree of protection	IP65/IP40
Payment term	30% deposit in advance,70% before shipment,100% T/T in advance
Certificate	CE/CCC/EN60947-5-1 approved standard
Logo	Customized logo with Decal / Frosted / Print are available as request
Design ability	We can supply sample,OEM&ODM is welcome (Design,Engineering, Photographing,Sample, Production)

AC	Rated voltage		110V	220V	440V
	Rated current		10A	6A	3A
	Breaking current capacity		50A	30A	10A
DC	Resistance Load	Rated voltage	110V	220V	600V
		Rated current	2.2A	1.1A	0.4A
		Breaking Current	2.42A	1.21A	0.44A
	Inductive Load	Rated current	1.2A	0.45A	0.2A
	Inductive Load	Breaking Current	1.32A	0.5A	0.22A

Prod Model:	CMRSN-304
High Switch Current:	10A/15A
Contact Form:	No/Nc
Max Voltage:	AC/DC 250V
Life:	10,000,000
