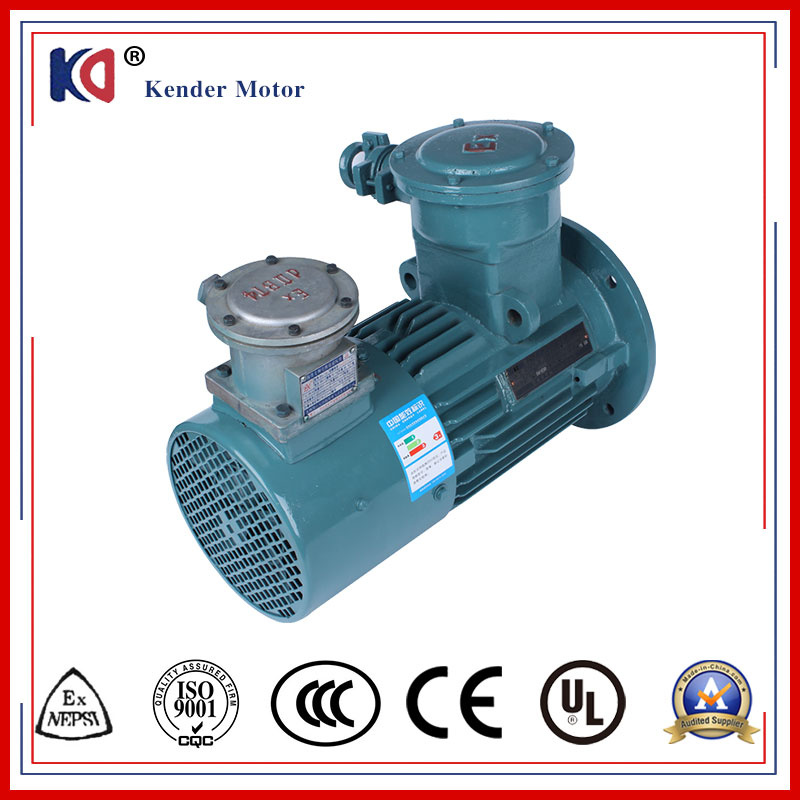

Series Electrical Induction Three-Phase AC Motor
| Price: |
US $ 55-65/Piece |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
5/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
Operating Condition
1. Rated voltage: 220V/660V 380/660V 660V/1140V
2. Protection class: IP55
3. Ambient temperature: -15ºC~40ºC
4. Rated frequency: 50Hz/60Hz
5. Altitude: Not exceed 1000m
6. Insulation class: F
7. Cooling method: IC411
8. Working duty: S1 (continuous)
9. Basic Installation Method B3 B35 B5
10. Frame size: 62-355
11. Basic Poles:4.
Technical data of Explosion-Proof Phase Electrical AC Motor with speed variable | Type | Power | Current | Rated torque | Noise level | Torque change
range | Power change
range | (KG) | (L) |
| (kw) | (A) | (N.M) | dB(A) |
| YVPEJ80M1-4 | 0.55 | 1.6 | 3.5 | 73 | 5-50Hz | 50-100Hz | 21 | 400 |
| YVPEJ80M2-4 | 0.75 | 2.1 | 4.7 | 73 | 5-50Hz | 50-100Hz | 22 | 400 |
| YVPEJ90S-4 | 1.1 | 2.8 | 7 | 76 | 5-50Hz | 50-100Hz | 26 | 430 |
| YVPEJ90L-4 | 1.5 | 3.7 | 9.5 | 76 | 5-50Hz | 50-100Hz | 30 | 455 |
| YVPEJ100L1-4 | 2.2 | 5.1 | 14 | 79 | 5-50Hz | 50-100Hz | 42 | 495 |
| YVPEJ100L2-4 | 3 | 6.7 | 19 | 79 | 5-50Hz | 50-100Hz | 43 | 495 |
| YVPEJ112M1-4 | 4 | 8.8 | 25.4 | 80 | 5-50Hz | 50-100Hz | 55 | 515 |
| YVPEJ132S1-4 | 5.5 | 11.7 | 35 | 86 | 5-50Hz | 50-100Hz | 83 | 597 |
| YVPEJ132M1-4 | 7.5 | 15.6 | 47.7 | 86 | 5-50Hz | 50-100Hz | 95 | 635 |
Advantage of Explosion-Proof Phase Electrical AC Motor with speed variable 1,Frequency Conversion 2. Speed Regulation 3,One year warranty 4. High protection class5,High efficiency,Energy saving 6,Long using life7,Easy installation and maintenance
About Kender
1,The company covers an area of 5000 square meters;
2,Modern workshops have advanced production lines and professional knowledge of assembly.
3,Excellent sales team and after-sales service
4,Professional technical team
5,Broad market:Europe(Germany....)America(America,Canada...)
Asian( Korea, Japan...)
Packing
Inspecting spare parts every processing
100% test after each process and final test before packing.
Name CardJiangsu Kender Motor CO., LTD
Contact Person:Lynn Zhu
Tel:86-519-69655640
Fax:86-519-85160023
Address:No.19 Wenya Road Qianhuang Town Wujin District Changzhou City,Jiangsu Province,China
| Prod Model: |
YVBP |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Yvbp-80m1-4 |
| Rate Power: |
0.55kw |
| Current: |
1.6A |
| Rated Torque: |
3.5 N.M |
| Speed: |
880 R/Min |
| Voltage: |
380V |
| Torque Change Range: |
5-50Hz |
| Power Change Range: |
50-100Hz |
| Weight: |
21kg |
| Noise Level: |
73 Db |
| Application: |
Power Tools |
| Operating Speed: |
Constant Speed |
| Number Of Stator: |
Three-Phase |
| Species: |
Explosion-Proof Three-Phase |
| Rotor Structure: |
Winding Type |
| Casing Protection: |
Closed Type |
| Starting Mode: |
Direct on-line Starting |
| Brand: |
Kender |

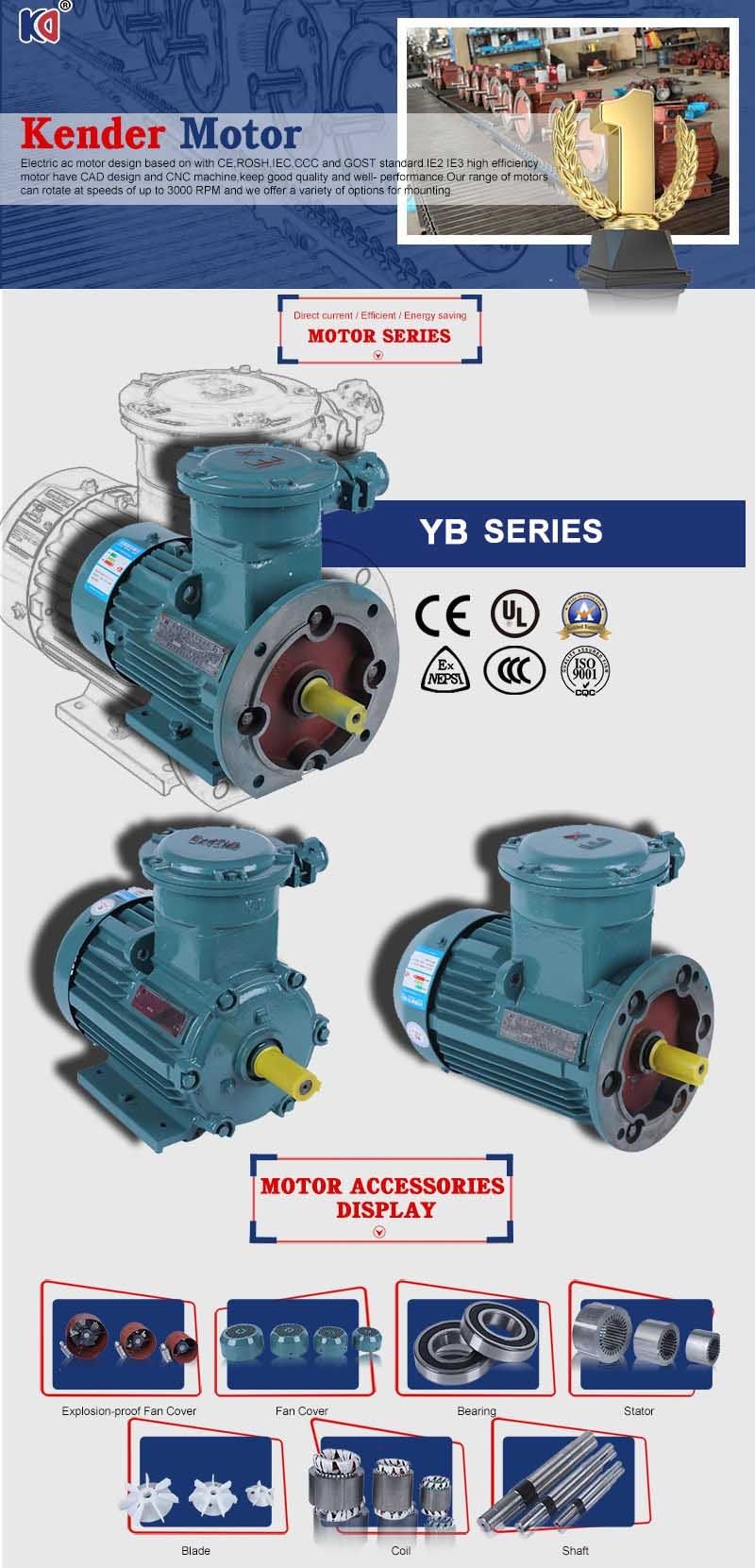

Kender Main Product YB3 series explosion proof motor, YBX3 series energy-efficient explosion proof motor, Y2, YX3, YE3 series normal motor, YEJ series Electromagnetic braking motor, YVF2 series variable-frequency and variable-speed motor, cycloidal pin gear speed reducer Special long axis motor. At the same time for the customer customization of all kinds of different voltage and non-standard motor.
The company has professional testing instruments(The stator test system, Fully automatic intelligent factory test term) and sophisticated technology and equipment(vertical CNC lathe, CNC grinding machine, disposable porous drill and so on). Our products are manufactured and control in strict accordance with the IS09001 quality system. And successively obtained CCC certification, CE certification and explosion-proof motor industrial products production license.
The company has been adhering to the "total quality control, keep improving, perfect quality, customer satisfaction" concept of the camp, Continue to strengthen management innovation, overall raise modern quality management level, Insist on brand strategy, pay attention to product quality, Based on the market at home and abroad with Sophisticated technology and equipment perfect detection means, good after-sales service strict and efficient management system.
