Fude Factory is the super V.I.P GOLDEN SUPPLIER for stepper motor
1) Over 10000+ designs
2) Over 1000+ designs for 2018
3) Small order accept

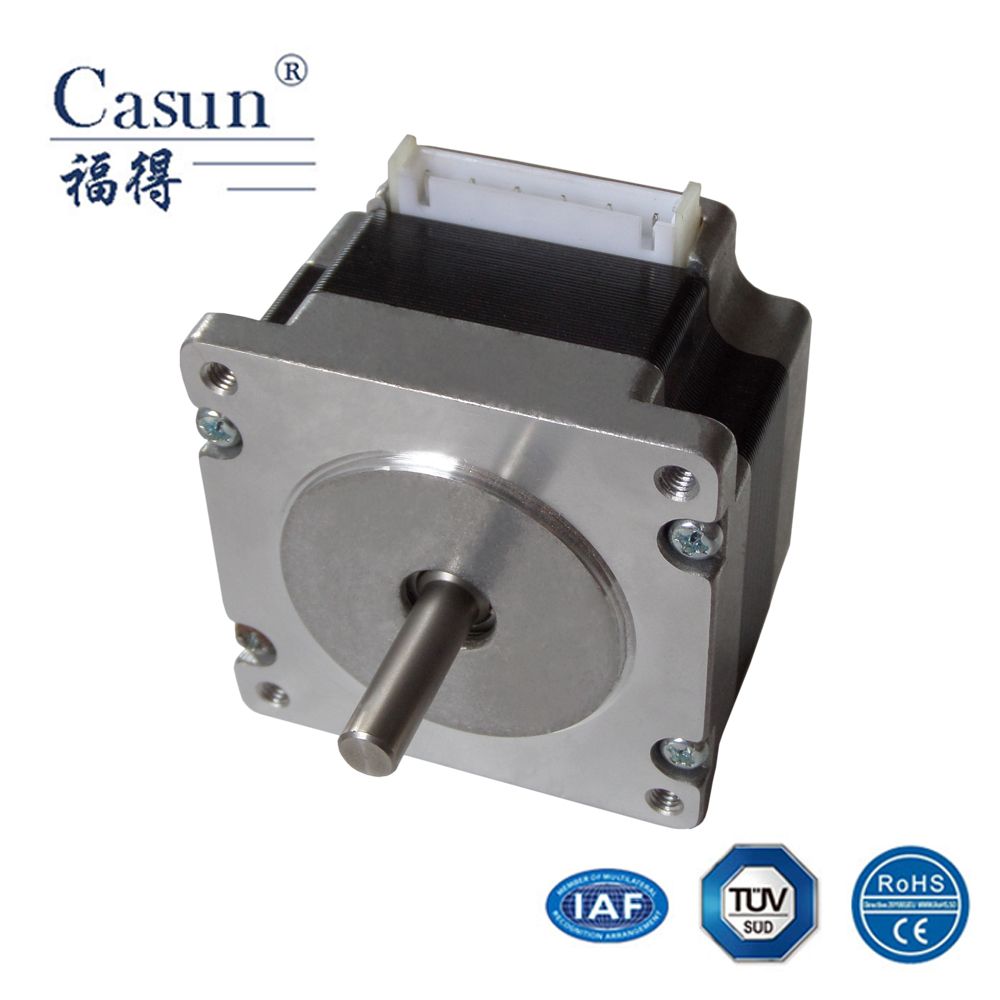

Sewing Machine Stepper Motor
---------------------------------------------------------------------------------------
Product information
1) Raw materials: tested by professional precise equipment;
2) 3 inspection lines;
3)1 year gurantee + famous chain customers;
| HYBRID STEPPING MOTOR 57SHD0302-22M Casun Brand |
| General Specification | Electrical Specification |
| Step Angle | 1.8° | Rated Voltage | 10V |
| Number of Phase | 2 | Rated Current | 0.5A |
| Insulation Resistance | 100MΩmin. (500V DC) | Resistance per phase | 20Ω±10% |
| Insulation Class | Class B | Inductance per Phase | 27mH±20% |
| Rotor Inertia | 125g.cm² | Holding torque | 360mN.m |
| Mass | 0.4kg | Detent torque | 20mN.m |

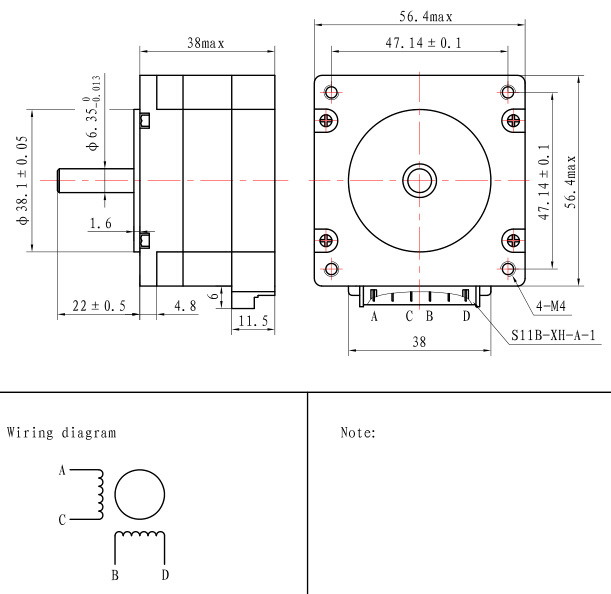

Figure Dimensions Unit:mm
 |
---------------------------------------------------------------------------------------
More Specification| Modle | Holding Torque | Rated Current | Resistance per phase | Inductance per phase | Detent Torque | Rotor inertia | Lead wire | Motor Length |
| mN.m | A | Ω | mH | mN.m | g.cm² | NO. | mm |
| 57SHD0001 | 400 | 0.5 | 12 | 20 | 22 | 135 | 4 | 41 |
| 57SHD0002 | 350 | 0.4 | 18 | 35 | 22 | 135 | 4 |
| 57SHD0006 | 350 | 1.0 | 5.0 | 5.0 | 22 | 135 | 6 |
| 57SHD0101 | 600 | 0.6 | 12 | 28 | 25 | 155 | 4 | 45 |
| 57SHD0119 | 600 | 2.0 | 2.0 | 4.1 | 25 | 155 | 4 |
| 57SHD0203 | 900 | 0.6 | 12 | 40 | 32 | 220 | 4 | 50 |
| 57SHD0204 | 750 | 1.6 | 2.6 | 5.0 | 32 | 200 | 6 |
| 57SHD0408 | 1000 | 2.5 | 1.2 | 4.2 | 40 | 260 | 4 | 54 |
| 57SHD0409 | 750 | 3.0 | 0.75 | 1.2 | 40 | 260 | 6 |
| 57SHD0801 | 1750 | 0.8 | 12 | 48 | 70 | 460 | 4 | 76 |
| *57SHD4805 | 1750 | 2.5 | 2.4 | 9.0 | 70 | 460 | 4 |
| *57SHD4934 | 3000 | 3.0 | 2.8 | 11 | 100 | 3000 | 4 | 100 |
Above is our partial products parameter, for more products pls contact us. OEM &ODM are welcomed.
---------------------------------------------------------------------------------------
Package Details
1) Carton box with foam inside.
2) Can be customized.
---------------------------------------------------------------------------------------

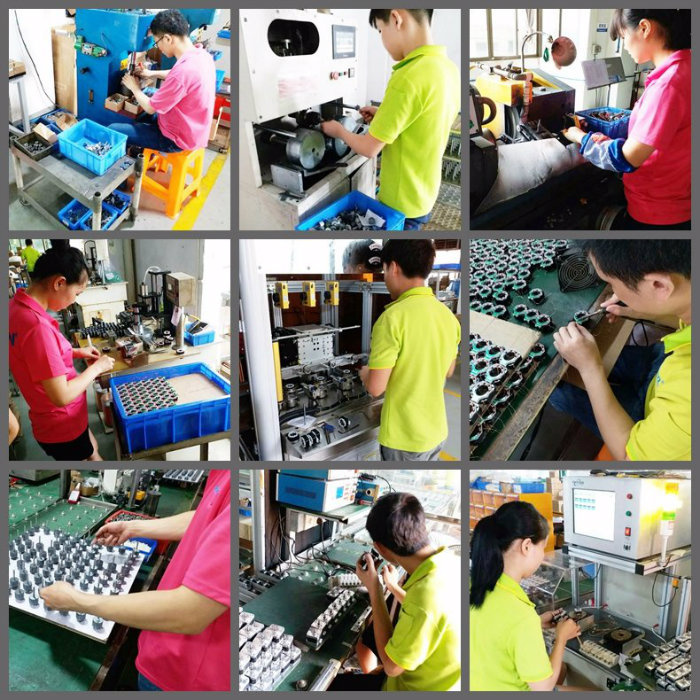

Working Process
1) First, Fabricate the Product;
2) Second, Assemble the Component;
3) Third, Testing the Motor;
4) Fourth, Quality Inspection.
