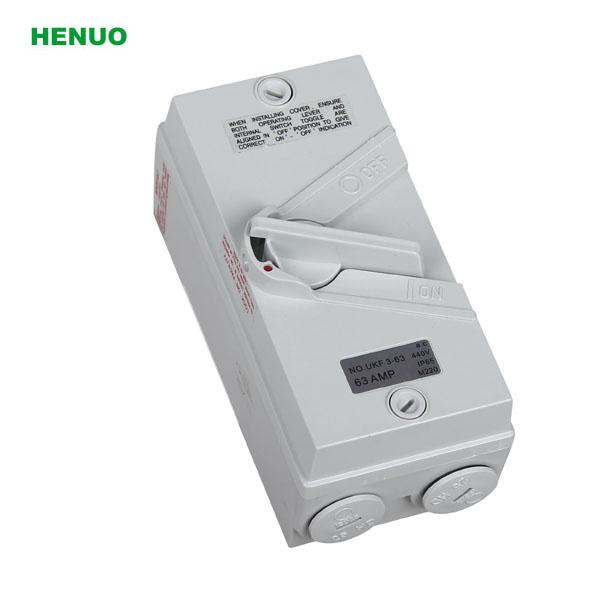

SGS CE Sio2001approved Ukf Isolator Switch for Europe
| Price: |
US $ 3.6/Piece |
| Trade Terms: |
FOB |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
UKF ISOLATOR |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Protection Level: |
IP66 |
| External Size: |
108*101*101 |
| Material: |
ABS&PC |
| Color: |
Gray |
| Contact Material: |
Copper or Silver |
| Shell Material: |
ABS or PC |
| Type: |
Low-voltage |
| Structure: |
Single-column Disconnector |
| Installation: |
Outdoor High-voltage |
| Operation: |
Manual |
| Grounding: |
Single Ground |
| Series: |
Three |
| Run: |
Vertical Rotation |
| Switching Mode: |
Single Throw-in |
| Certification: |
CE |
| Common Model: |
Ukf |
| Brand: |
Tengen |
Product Description
Act as weatherproof isolating switch in all types of circuits as defined in the IEE regulation.
Protection degree up to IP66.
Technical Parameter:
Conform to IEC60947-3: 1999.
Rated Current: 20A, 32A, 45A, 63A
Rated Voltage: 240/415V
No. Of Pole: 2P, 3P, 4P
Switches pad lochable at "OFF" position.
Terminal Capacity:
16mm2 Rigid stranded cable
Conduit entry:
2 x 25mm cable entry top and bottom.
2 x 25mm conduit adaptors provided.
4 x 20mm, 2 x 25mm knockouts for rear cable entry.
Model |
Phase & Voltage |
IP rating |
UKF-1-20 |
20A 250V single pole, surface switch terminals accommodate 16mm^2 cable, M rating 220 |
IP66 |
UKF-1-35 |
35A 250V single pole, terminals accommodate 16mm^2 cable, M rating 220 |
IP66 |
UKF-1-63 |
63A 250V single pole, terminals accommodate 16mm^2 cable, M rating 220 |
IP66 |
UKF-2-20 |
20A 440V Double pole, terminals accommodate 16mm^2 cable, M Rating 180 |
IP66 |
UKF-2-35 |
35A 440V Double pole, terminals accommodate 16mm^2 cable, M Rating 180 |
IP66 |
UKF-2-63 |
63A 440V Double pole, terminals accommodate 16mm^2 cable, M Rating 180 |
IP66 |
UKF-3-20 |
20A 440V Triple pole, terminals accommodate 16mm^2 cable, M Rating 180 |
IP66 |
UKF-3-35 |
35A 440V Triple pole, terminals accommodate 16mm^2 cable, M Rating 180 |
IP66 |
UKF-3-63 |
55A 440V Triple pole, terminals accommodate 16mm^2 cable, M Rating 180 |
IP66 |
UKF-4-20 |
55A 440V Triple pole with 32mm conduit entry, terminals accommodate 25mm^2 cable, M Rating 160 |
IP66 |
UKF-4-35 |
63A 440V Triple pole with 32mm conduit entry, terminals accommodate 25mm^2 cable, M Rating 160 |
IP66 |
UKF-4-63 |
80A 440V Triple pole with 32mm conduit entry, terminals accommodate 25mm^2 cable, M Rating 150 |
IP66 |
